Donaldson® Torit® PowerCore® CP Series Dust Collector 48.0" x 46.1"
Donaldson® Torit® PowerCore® CP Series Dust Collector 48.0" x 46.1"
SKU:TOR-16fa9e
Revolutionize dust collection with the compact and powerful Torit® PowerCore® CP Series Dust Collector.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Donaldson® Torit® PowerCore® CP Series Dust Collector 48.0" x 46.1"
$6,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® PowerCore® CP Series Dust Collector 48.0" x 46.1"
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

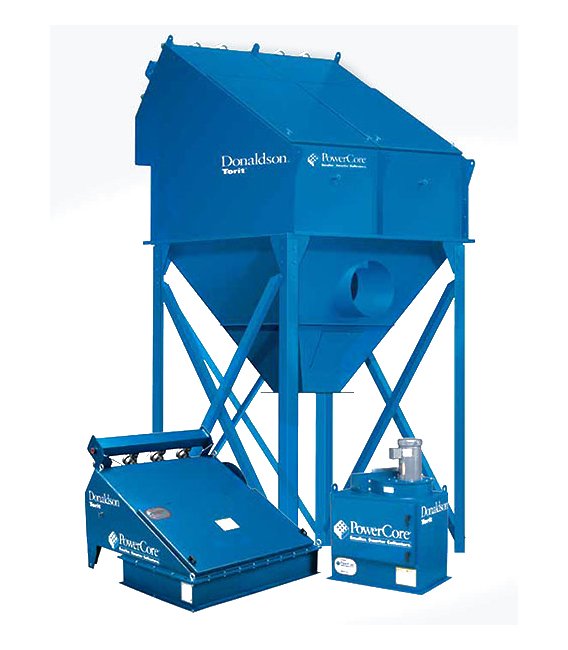

Meet the revolutionary Torit® PowerCore® CP Series Dust Collector, designed for efficiency and convenience. This advanced filtration system boasts a compact PowerCore® filter pack that offers the same filtering area as 6 traditional bags in a fraction of the space. With Donaldson®'s Ultra-Web® nanofiber technology, expect unparalleled performance. Ideal for industrial settings requiring airflow from 2800 to 5400 ft³/min, this powerhouse is seismic and wind load rated, ensuring reliable operation even under harsh conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

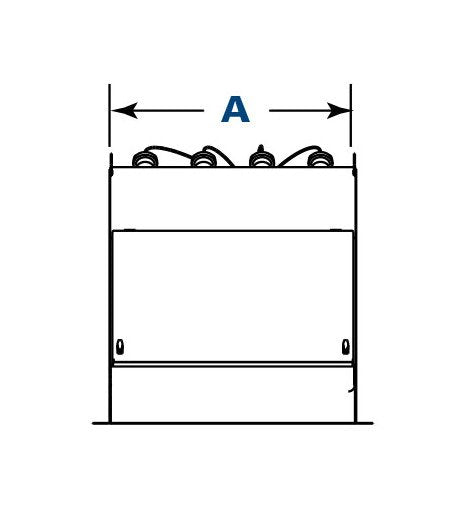

Dimensions Dimension A
48.0 in | 1219.2 mm

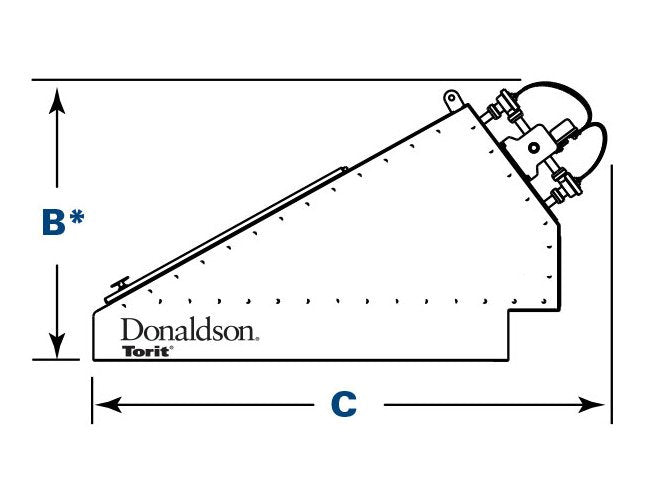

Dimensions Dimension B
46.1 in | 1170.9 mm
Dimensions Dimension C
83.6 in | 2123.4 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 2, 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
20 inwg
Specifications Nominal Airflow
2800 to 5400 ft³/min | 4756 to 9173 m³/h
Specifications Number Of Filter Packs
8
Specifications Number Of Valves
8
Specifications Powercore Filter Area
504 ft² | 46.8 m²
Specifications Shipping Weight
800 lb | 362.9 kg
