Donaldson® Torit® PowerCore® CP Series Dust Collector - 48.5" x 154.2"
Donaldson® Torit® PowerCore® CP Series Dust Collector - 48.5" x 154.2"
SKU:TOR-a73ef4
Efficient Donaldson® Torit® PowerCore® CP Series Dust Collector for superior filtration in a compact design.
Regular price
$9,999.99
Regular price
Sale price
$9,999.99
Unit price
per
Initiate Order
Donaldson® Torit® PowerCore® CP Series Dust Collector - 48.5" x 154.2"
$9,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® PowerCore® CP Series Dust Collector - 48.5" x 154.2"
$9,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

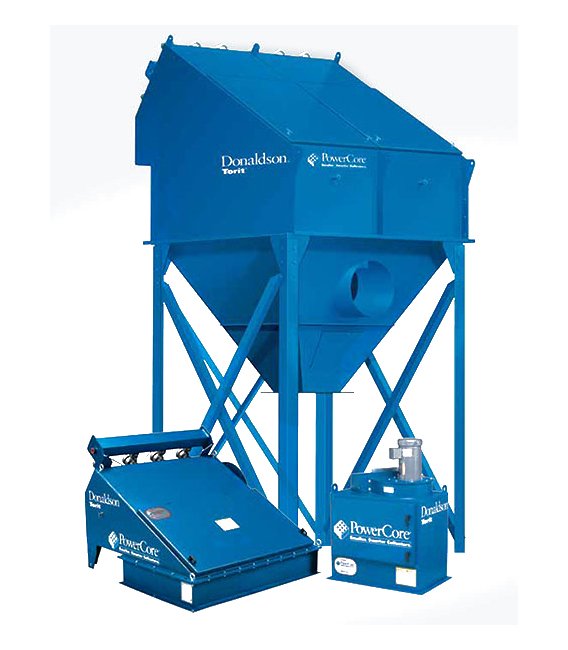

The Donaldson® Torit® PowerCore® CP Series Dust Collector revolutionizes dust collection with its compact PowerCore® filter pack technology. Offering a significant filter area in a compact space, it replaces the need for multiple traditional filter bags. Enhanced with Ultra-Web® nanofiber media, this dust collector ensures superior filtration efficiency. With a nominal airflow range of 2800 to 5400 ft³/min, 8 PowerCore® filter packs, and robust construction, it delivers exceptional performance for industrial applications.
Product Specifications

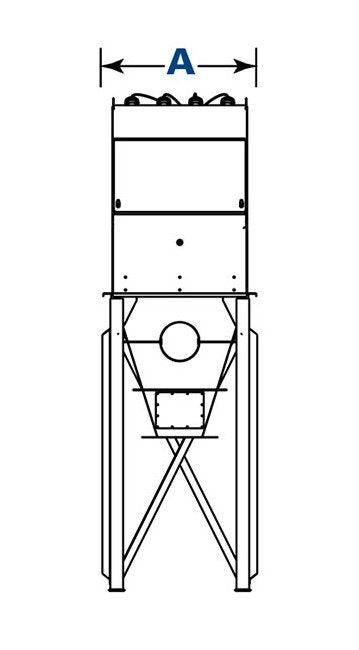

Dimensions Dimension A
48.5 in | 1231.9 mm

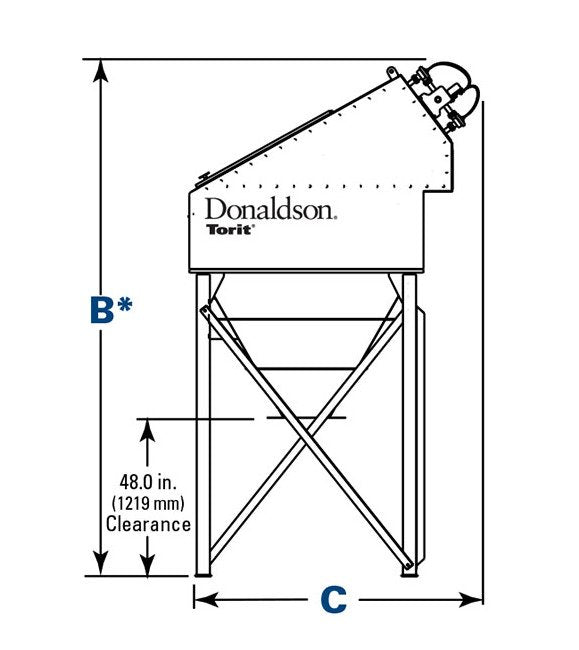

Dimensions Dimension B
154.2 in | 3916.7 mm
Dimensions Dimension C
85.0 in | 2159.0 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12, 16, 24, 32, 40, 48.
Dimensions Note For Dimension C
Standard hoppers.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
-20 inwg
Specifications Nominal Airflow
2800 to 5400 ft³/min | 4756 to 9173 m³/h
Specifications Number Of Filter Packs
8
Specifications Number Of Valves
8
Specifications Powercore Filter Area
504 ft² | 46.8 m²
Specifications Shipping Weight
1685 lb | 764.3 kg
