Donaldson® Torit® PowerCore® CP Series Dust Collector - 70" x 46.1"
Donaldson® Torit® PowerCore® CP Series Dust Collector - 70" x 46.1"
SKU:TOR-c95955
Enhanced dust collector with PowerCore® technology, Ultra-Web® nanofiber filter media, and superior filtration efficiency for industrial applications.
Regular price
$6,500.00
Regular price
Sale price
$6,500.00
Unit price
per
Initiate Order
Donaldson® Torit® PowerCore® CP Series Dust Collector - 70" x 46.1"
$6,500.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® PowerCore® CP Series Dust Collector - 70" x 46.1"
$6,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your dust collection system with the Torit® PowerCore® CP Series 70" x 46.1" Dust Collector. Featuring advanced PowerCore® filter packs with Ultra-Web® nanofiber technology, this unit offers superior filtration efficiency in a compact design. With a PowerCore® filter area of 756 ft² and a nominal airflow of 4200 to 8200 ft³/min, it provides high-performance dust collection for industrial applications. Operates under various conditions including seismic and wind loads. Donaldson® Torit® ensures reliable, one-person handling for increased productivity.
Product Specifications

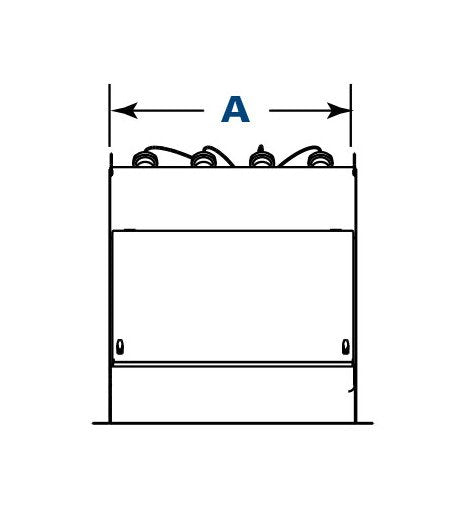

Dimensions Dimension A
70 in | 1778.0 mm

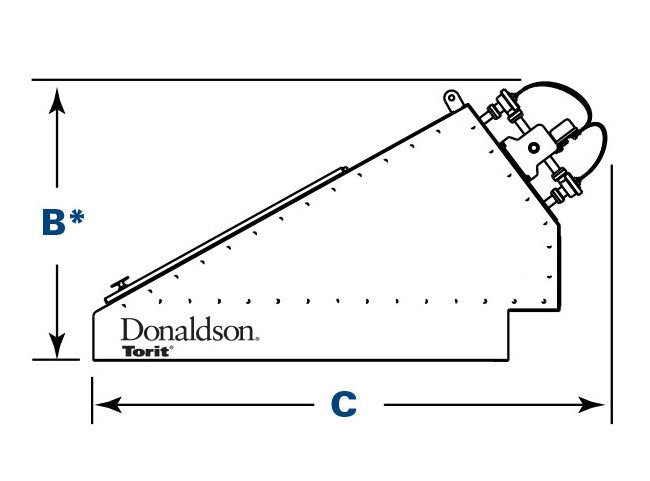

Dimensions Dimension B
46.1 in | 1170.9 mm
Dimensions Dimension C
83.6 in | 2123.4 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 2, 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
20 inwg
Specifications Nominal Airflow
4200 to 8200 ft³/min | 7134 to 13929 m³/h
Specifications Number Of Filter Packs
12
Specifications Number Of Valves
12
Specifications Powercore Filter Area
756 ft² | 70.2 m²
Specifications Shipping Weight
1290 lb | 585.1 kg
