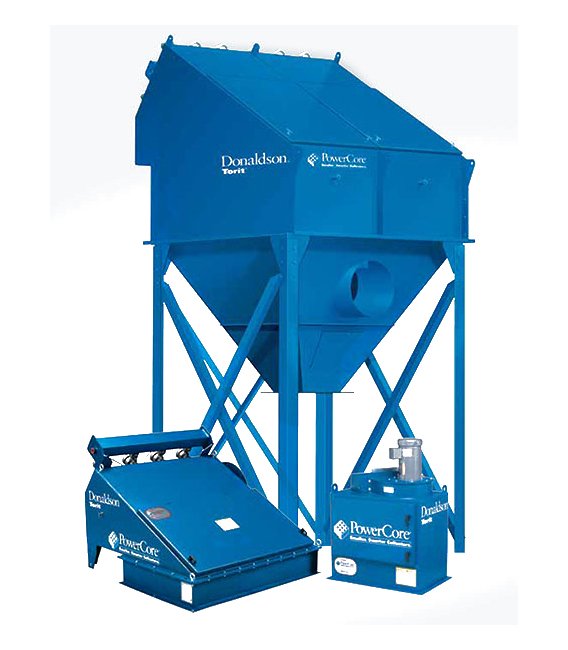

Donaldson® Torit® PowerCore® CP216 Dust Collector
Donaldson® Torit® PowerCore® CP216 Dust Collector
SKU:TOR-90ac49
Experience superior dust collection with the Donaldson® Torit® PowerCore® CP216 Dust Collector. Enhanced filtration efficiency in a compact design.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Donaldson® Torit® PowerCore® CP216 Dust Collector
$7,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® PowerCore® CP216 Dust Collector
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® PowerCore® CP216 Dust Collector revolutionizes dust collection with its compact PowerCore® filter pack. With a high airflow capacity of 14,000 to 27,000 ft³/min, this efficient system contains 40 PowerCore® filter packs offering a large filter area of 2520 ft². The advanced Ultra-Web® nanofiber technology ensures superior filtration performance. Operating seamlessly under various conditions, this dust collector is a reliable and space-saving solution for industrial settings.
Product Specifications
Dimensions Dimension A
216.0 in | 5486.4 mm
Dimensions Dimension B
154.7 in | 3929.4 mm
Dimensions Dimension C
85.0 in | 2159.0 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12, 16, 24, 32, 40, 48.
Dimensions Note For Dimension C
Standard hoppers.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
-20 inwg
Specifications Nominal Airflow
14000 to 27000 ft³/min | 23781 to 45864 m³/h
Specifications Number Of Filter Packs
40
Specifications Number Of Valves
40
Specifications Powercore Filter Area
2520 ft² | 234.1 m²
Specifications Shipping Weight
6210 lb | 2816.8 kg
