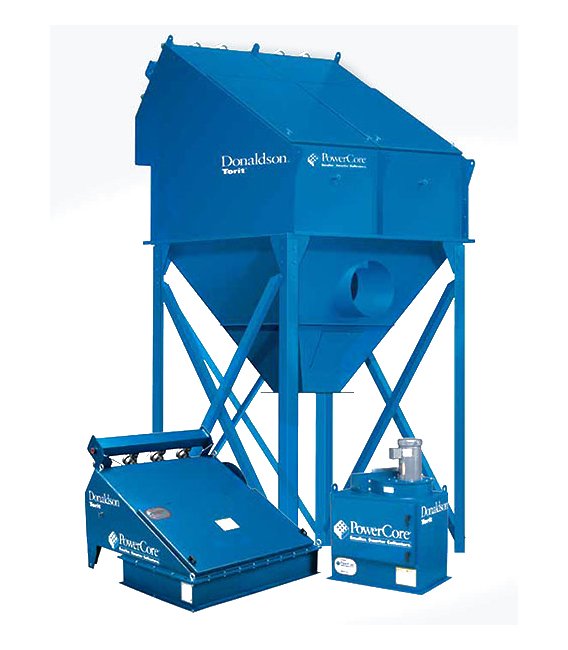

The Donaldson® Torit® PowerCore® CP Series Dust Collector revolutionizes dust collection with its compact yet powerful design. Featuring PowerCore® technology, this unit maximizes filter area efficiency, providing the equivalent of six traditional filter bags in a fraction of the space. The innovative Ultra-Web® nanofiber filter media ensures exceptional filtration performance. With nominal airflow ranging from 2100 to 4100 ft³/min and a robust housing rating, this dust collector is ideal for industrial settings requiring high-performance dust control.
Product Specifications

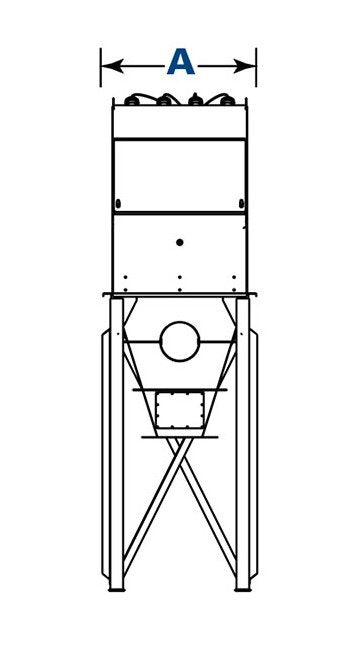

Dimensions Dimension A
38.6 in | 980.4 mm
Dimensions Dimension B
154.2 in | 3916.7 mm

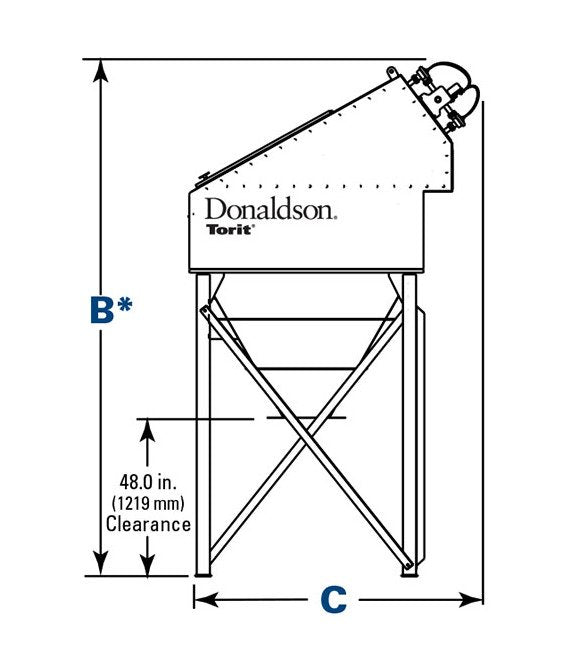

Dimensions Dimension C
85.0 in | 2159.0 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12, 16, 24, 32, 40, 48.
Dimensions Note For Dimension C
Standard hoppers.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
-20 inwg
Specifications Nominal Airflow
2100 to 4100 ft³/min | 3567 to 6964 m³/h
Specifications Number Of Filter Packs
6
Specifications Number Of Valves
6
Specifications Powercore Filter Area
378 ft² | 35.1 m²
Specifications Shipping Weight
1600 lb | 725.7 kg
