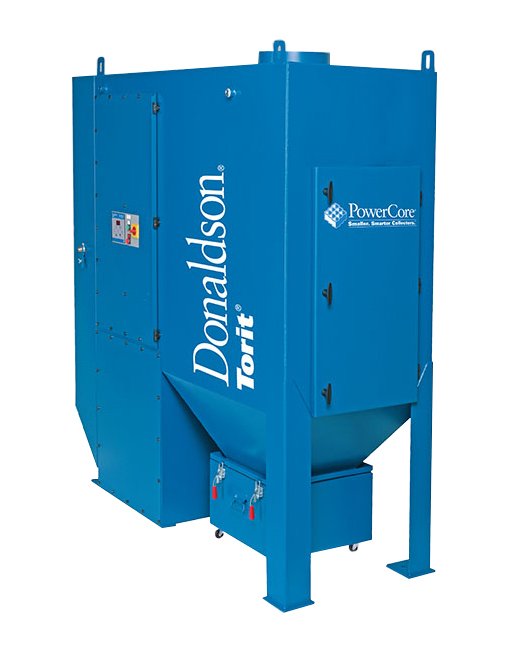

Donaldson® Torit® PowerCore® TG Series 8 Valve Dust Collector
Donaldson® Torit® PowerCore® TG Series 8 Valve Dust Collector
SKU:TOR-29d476
Revolutionize air quality with the Donaldson® Torit® PowerCore® TG Series Dust Collector. Compact, smart, and powerful solution for welding, cutting, and spray applications.
Regular price
$12,500.00
Regular price
Sale price
$12,500.00
Unit price
per
Initiate Order
Donaldson® Torit® PowerCore® TG Series 8 Valve Dust Collector
$12,500.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® PowerCore® TG Series 8 Valve Dust Collector
$12,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® PowerCore® TG Series 8 Valve Dust Collector sets a new standard in dust and fume collection. With a compact footprint, intelligent technology, and fully packaged units, this collector delivers cleaner air for welding, laser cutting, plasma cutting, and thermal spray applications. Featuring a robust steel housing, precise airflow management, and efficient operation, the PowerCore® TG Series ensures high-performance air filtration for industrial environments.
Product Specifications
Additional Information
Torit® PowerCore® TG collectors' strong and sleek all-welded housing is the ideal fit as a stand-alone on the plant floor or integrated into an OEM design. Factor in the energy saver package, quiet motor and smart controls specifically designed for metalworking, and the choice is clear. Torit® PowerCore® TG is the best combination of footprint, appearance and performance.
Applications
While PowerCore® filter packs are new to the metalworking market, they have a proven track record in other related filtration industries. Donaldson® offers them in many shapes and sizes for high performance vehicles, construction, agricultural and medium/heavy duty transportation applications as well as gas turbine air intakes that protect multi-million dollar turbine engines for power plants across the globe. Donaldson® Torit® introduced the PowerCore® CPC and CPV collectors for the baghouse markets in 2008.

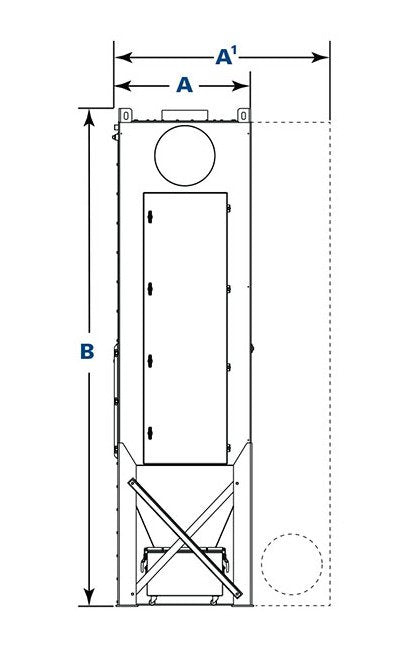

Dimensions Dimension A
36.8 in
Dimensions Dimension A1
59.1 in
Dimensions Dimension B
135.0 in
Dimensions Dimension C
82.2 in
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Frequency
60 Hz
Operating Conditions Horsepower
15 hp
Operating Conditions Housing Construction Material Thickness
3/16 to 12 gauge steel compliant with Per International Building Code (IBC) 2006
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Reinforced Housing Rating
0.32 bar
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Operating Conditions Sound Level
71 to 74 dBA
Operating Conditions Standard Housing Rating
15 in | 381.0 mm
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Low Inlet Box Shipping Weight
3300 lb

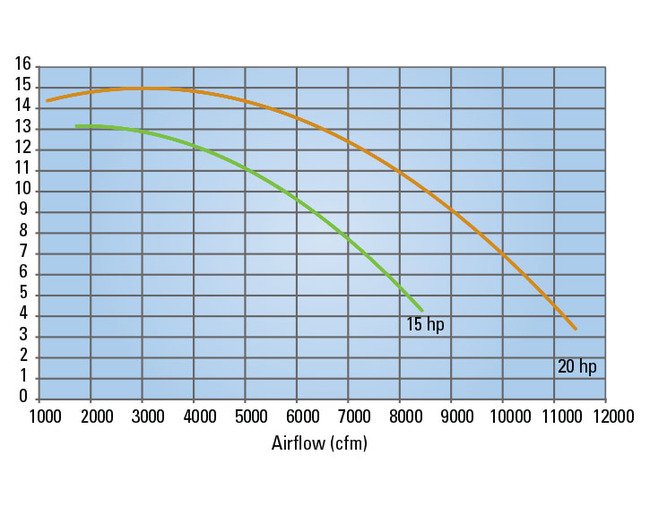

Specifications Nominal Airflow
3840 to 11520 ft³/min
Specifications Number Of Filter Packs
8
Specifications Number Of Valves
8
Specifications Peak Pulse Noise
92.7 dBA
Specifications Powercore Filter Area
1176 ft²
Specifications R Housing Shipping Weight
3400 lb
Specifications Standard Housing Shipping Weight
2900 lb
