Donaldson® Torit® RF Baghouse 333.9 Inch Dust Collector
Donaldson® Torit® RF Baghouse 333.9 Inch Dust Collector
SKU:RFB-55f6e1
Efficiently handle heavy dust loads with the Donaldson® Torit® RF Baghouse Dust Collector, offering energy-efficient cleaning and top-notch filtering technology.
Regular price
$13,999.99
Regular price
Sale price
$13,999.99
Unit price
per
Initiate Order
Donaldson® Torit® RF Baghouse 333.9 Inch Dust Collector
$13,999.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® RF Baghouse 333.9 Inch Dust Collector
$13,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

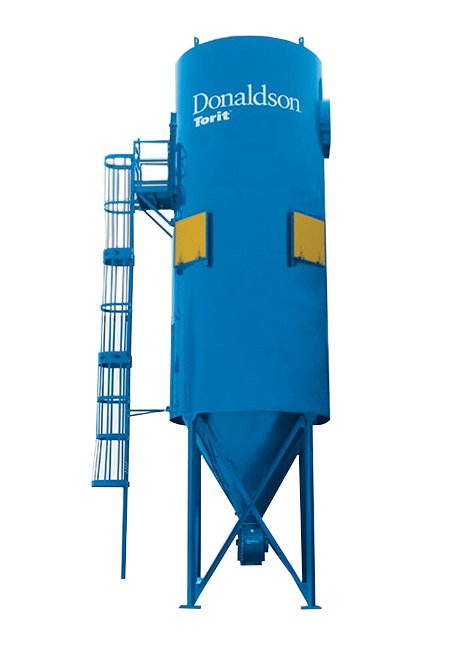

The Donaldson® Torit® RF Baghouse Dust Collector is a powerhouse for handling heavy dust loads efficiently. Combining a cyclone precleaner and baghouse in one unit, it offers a powerful cleaning system that eliminates the need for compressed air. With Dura-Life™ bag filters and Ultra-Web® SB pleated bag filter options, this collector ensures top-notch performance while consuming less energy. Its innovative features include High-Body inlet, Even-Air™ Flow Straightener, and a 60º conical hopper to reduce dust build-up, making it a cost-effective and energy-efficient solution for industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

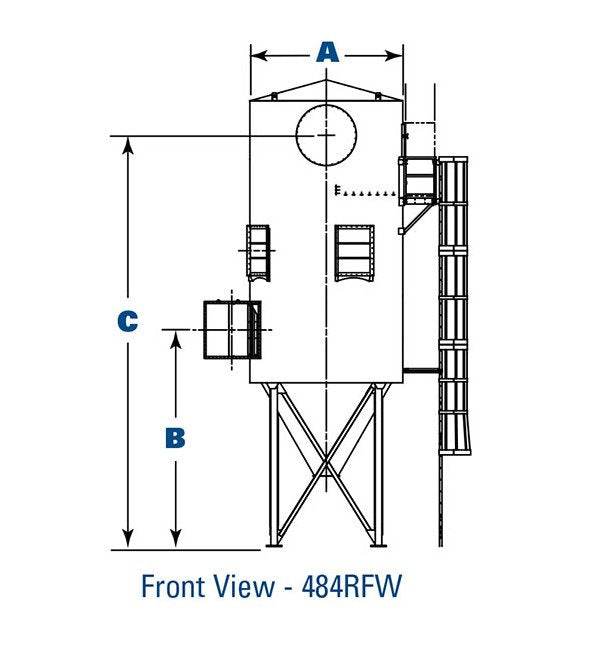

Dimensions Dimension A
123.0 in | 3124.2 mm

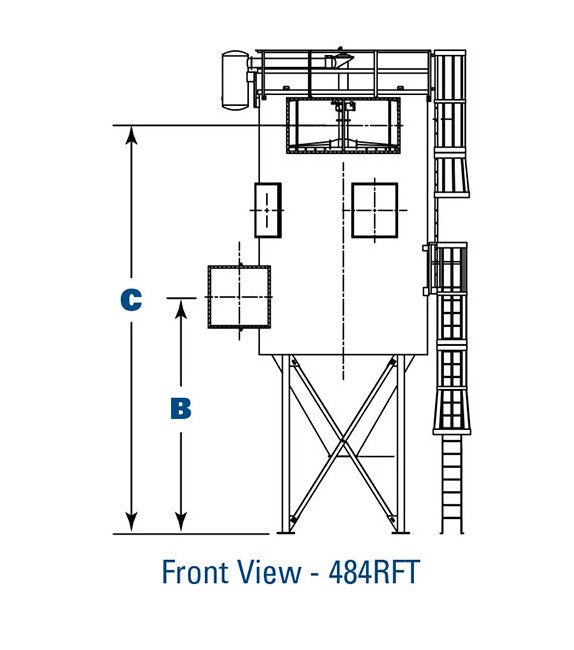

Dimensions Dimension B
184.8 in | 4693.9 mm
Dimensions Dimension C
333.9 in | 8481.1 mm

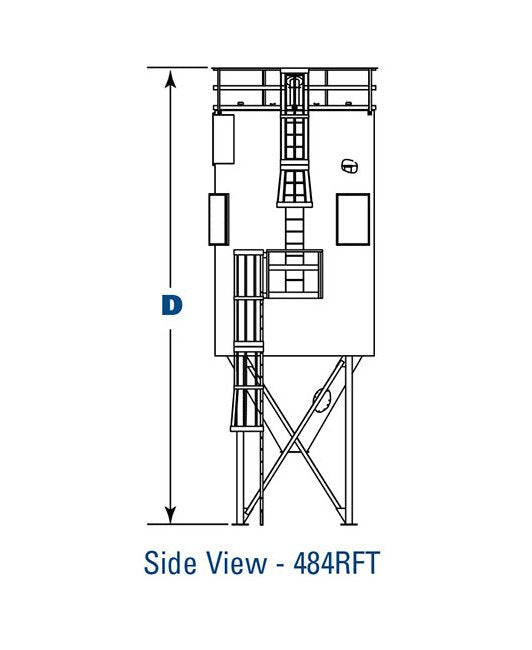

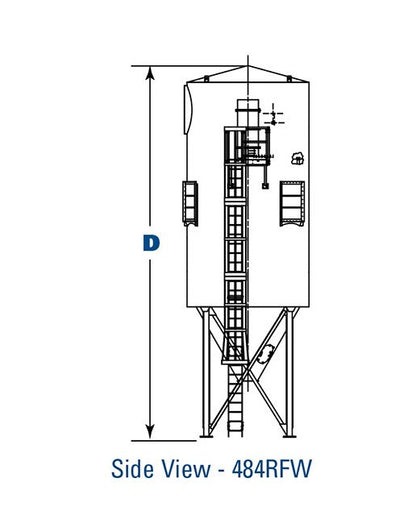

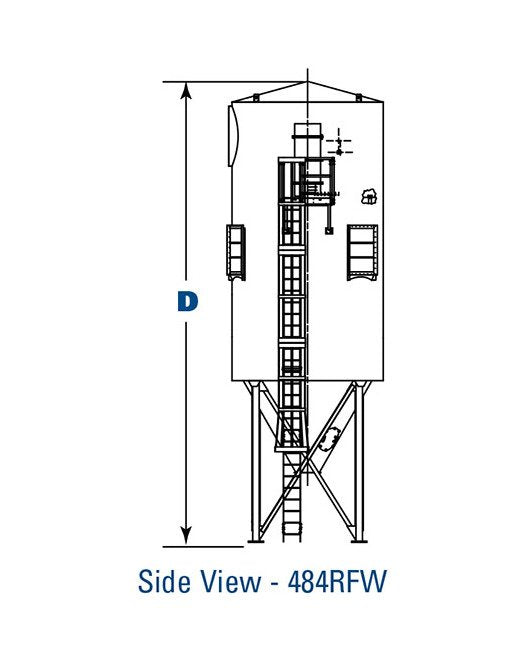

Dimensions Dimension D
415.6 in | 10556.2 mm
Features
High-Body inlet option for abrasive dustEven-Air™ Flow Straightener reduces wear on bag filtersAward winning Dura-Life™ Twice the Life" bag filtersOval shaped bags provide better snap for better bag cleaningUltra-Web® SB Pleated Bag OptionClean-air bag access for easier bag serviceSingle inlet, outlet and hopper reduces duct and hopper outlet costs60º conical hopper reduces dust build-upRequires less energy than comparable sized unitsRF cleaning system requires no compressed air
Note
All units 570 and larger are of panelized construction and dimension B" is from center of the inlet to bottom of the 36-in (914.4 mm) hopper outlet.
Specifications Air Pump
5.0 hp
Specifications Bag Cloth Area
2414 ft² | 224 m²
Specifications Number Of Bags
232
Specifications Plated Bag Media Area 30 Inch In Uw
3086 ft² | 287 m²
Specifications Plated Bag Media Area 40 Inch In Uw
4037 ft² | 375 m²
Specifications Plated Bag Media Area 60 Inch In Uw
6171 ft² | 573 m²
Specifications Plated Bag Media Area 80 Inch In Uw
8097 ft² | 752 m²
Specifications Shipping Weight
13656 lb | 6194.3 kg
Specifications Type
Walk-on the Top of the Collector to Replace Bags
Specifications Warranty
10 years
