Donaldson® Torit® RF Baghouse 404.4-in Dust Collector
Donaldson® Torit® RF Baghouse 404.4-in Dust Collector
SKU:RFB-64d40f
Efficiently handle heavy dust loads with the Donaldson® Torit® RF Baghouse 404.4-in Dust Collector. Energy-efficient cleaning system, extended filter life.
Regular price
$18,500.00
Regular price
Sale price
$18,500.00
Unit price
per
Initiate Order
Donaldson® Torit® RF Baghouse 404.4-in Dust Collector
$18,500.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® RF Baghouse 404.4-in Dust Collector
$18,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® RF Baghouse 404.4-inch Dust Collector is an industry-leading solution for handling heavy dust loads and high air volumes efficiently. With a powerful energy-efficient cleaning system, it eliminates the need for compressed air, reducing operational costs. This collector features "Dura-Life™ Twice the Life" bag filters for extended filter life. Its innovative design includes a High-Body inlet option for abrasive dust and a 60º conical hopper to minimize dust build-up. Award-winning performance with lower energy consumption makes the RF Baghouse ideal for industrial applications.
Product Specifications
Dimensions Dimension A
157.6 in | 4003.0 mm

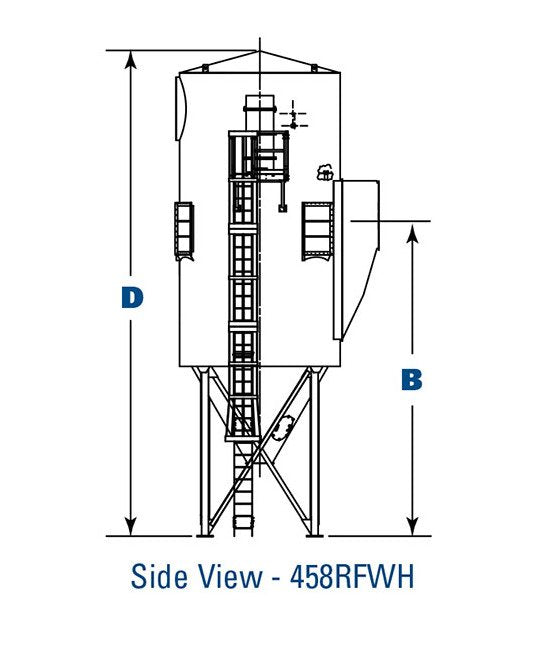

Dimensions Dimension B
288.4 in | 7325.4 mm

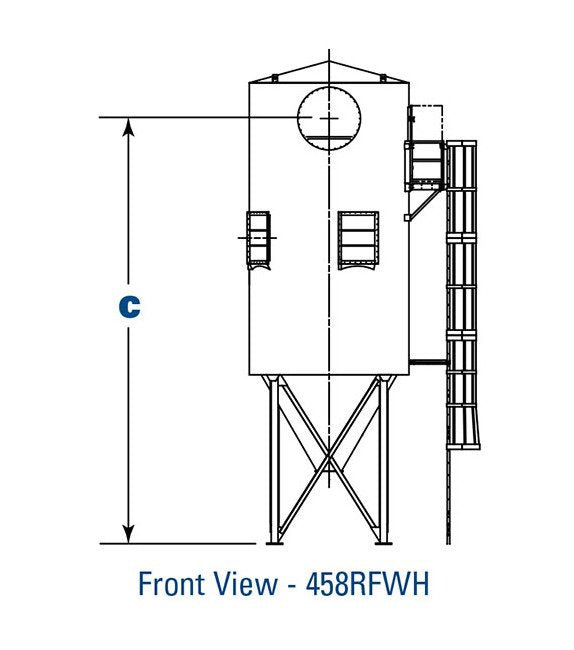

Dimensions Dimension C
404.4 in | 10271.8 mm
Dimensions Dimension D
485.1 in | 12321.5 mm
Features
High-Body inlet option for abrasive dustEven-Air™ Flow Straightener reduces wear on bag filtersAward winning Dura-Life™ Twice the Life" bag filtersOval shaped bags provide better snap for better bag cleaningUltra-Web® SB Pleated Bag OptionClean-air bag access for easier bag serviceSingle inlet, outlet and hopper reduces duct and hopper outlet costs60º conical hopper reduces dust build-upRequires less energy than comparable sized unitsRF cleaning system requires no compressed air
Note
All units 570 and larger are of panelized construction and dimension B" is from center of the inlet to bottom of the 36-in (914.4 mm) hopper outlet.
Specifications Air Pump
7.5 hp
Specifications Bag Cloth Area
5958 ft² | 553 m²
Specifications Number Of Bags
458
Specifications Plated Bag Media Area 30 Inch In Uw
6091 ft² | 566 m²
Specifications Plated Bag Media Area 40 Inch In Uw
7969 ft² | 740 m²
Specifications Plated Bag Media Area 60 Inch In Uw
12182 ft² | 1132 m²
Specifications Plated Bag Media Area 80 Inch In Uw
15984 ft² | 1485 m²
Specifications Shipping Weight
27800 lb | 12609.9 kg
Specifications Type
High Body Inlet
Specifications Warranty
10 years
