Donaldson® Torit® RF Baghouse Dust Collector
Donaldson® Torit® RF Baghouse Dust Collector
SKU:RFB-3ef713
Efficiently handle heavy dust loads with the Donaldson® Torit® RF Baghouse Dust Collector. Powerful cleaning system, energy-efficient, and durable construction.
Regular price
$27,999.00
Regular price
Sale price
$27,999.00
Unit price
per
Initiate Order
Donaldson® Torit® RF Baghouse Dust Collector
$27,999.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® RF Baghouse Dust Collector
$27,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® RF Baghouse Dust Collector is a powerhouse designed to efficiently handle heavy dust loads and large volumes of air with its innovative features. Combining a cyclone precleaner and a baghouse in one unit, it boasts a powerful cleaning system that eliminates the need for compressed air. With options like Dura-Life™ Twice the Life bag filters and Ultra-Web® SB pleated bag filters, this collector ensures exceptional performance while being energy-efficient compared to its competitors. Featuring a sturdy construction and multiple unique benefits, the RF Baghouse Dust Collector is a top choice for industrial facilities seeking optimal air quality control.
Product Specifications

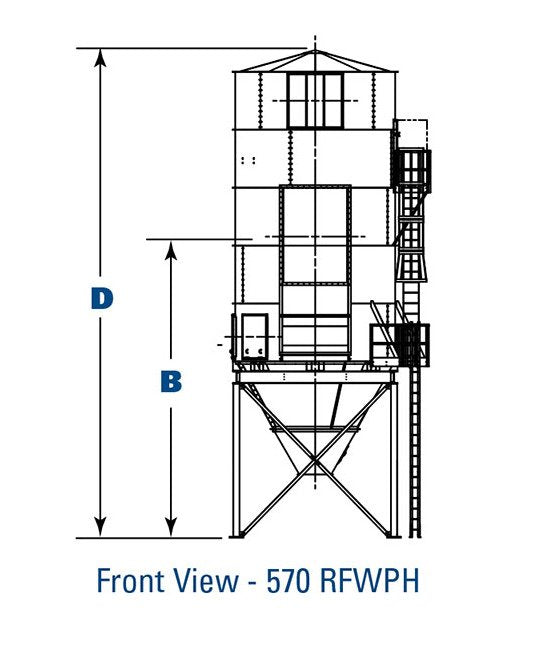

Dimensions Dimension A
188.0 in | 4775.2 mm
Dimensions Dimension B
345.1 in | 8765.5 mm
Dimensions Dimension C
498.5 in | 12661.9 mm
Dimensions Dimension D
577.5 in | 14668.5 mm
Features
High-Body inlet option for abrasive dustEven-Air™ Flow Straightener reduces wear on bag filtersAward winning Dura-Life™ Twice the Life" bag filtersOval shaped bags provide better snap for better bag cleaningUltra-Web® SB Pleated Bag OptionClean-air bag access for easier bag serviceSingle inlet, outlet and hopper reduces duct and hopper outlet costs60º conical hopper reduces dust build-upRequires less energy than comparable sized unitsRF cleaning system requires no compressed air
Note
All units 570 and larger are of panelized construction and dimension B" is from center of the inlet to bottom of the 36-in (914.4 mm) hopper outlet.
Specifications Air Pump
15.0 hp
Specifications Bag Cloth Area
8897 ft² | 827 m²
Specifications Number Of Bags
570
Specifications Plated Bag Media Area 30 Inch In Uw
7581 ft² | 704 m²
Specifications Plated Bag Media Area 40 Inch In Uw
9918 ft² | 921 m²
Specifications Plated Bag Media Area 60 Inch In Uw
15161 ft² | 1409 m²
Specifications Plated Bag Media Area 80 Inch In Uw
19893 ft² | 1848 m²
Specifications Shipping Weight
42029 lb | 19064.0 kg
Specifications Type
Walk-In Plenum for Sheltered Bag Removal
Specifications Warranty
10 years
