Donaldson® Torit® RF Baghouse Dust Collector
Donaldson® Torit® RF Baghouse Dust Collector
SKU:RFB-fbb9f9
Experience unrivaled dust collection efficiency with the Donaldson® Torit® RF Baghouse Dust Collector. Energy-efficient and high-performing for heavy-duty applications.
Regular price
$49,999.00
Regular price
Sale price
$49,999.00
Unit price
per
Initiate Order
Donaldson® Torit® RF Baghouse Dust Collector
$49,999.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® RF Baghouse Dust Collector
$49,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® RF Baghouse Dust Collector stands out as the leading solution for heavy dust loads and large air volumes. With a compact design combining a cyclone precleaner and baghouse, it boasts a powerful and energy-efficient cleaning system, eliminating the need for compressed air. Featuring award-winning Dura-Life™ Twice the Life" bag filters and Ultra-Web® SB pleated bag filter option, the RF ensures superior performance while reducing energy consumption. Notably, its innovative design includes a high-body inlet option, Even-Air™ Flow Straightener, and clean-air bag access for easier service, making it the top choice for institutional and government buyers seeking efficiency and productivity.
Product Specifications

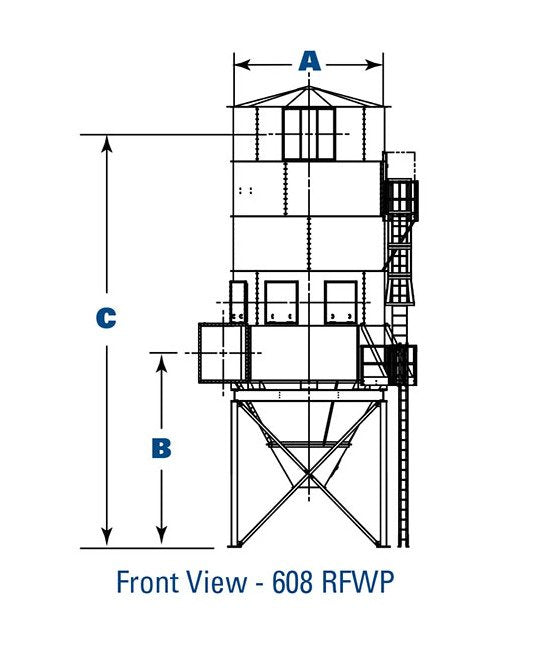

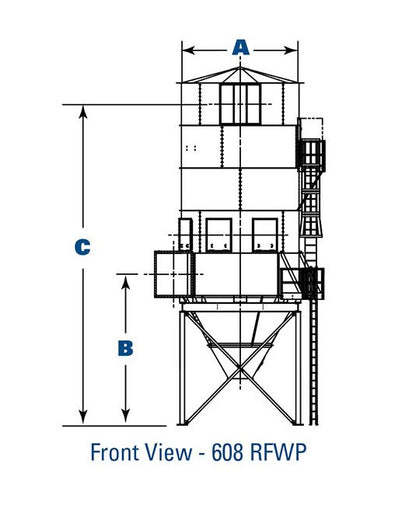

Dimensions Dimension A
188.0 in | 4775.2 mm
Dimensions Dimension B
234.2 in | 5948.7 mm
Dimensions Dimension C
522.5 in | 13271.5 mm
Dimensions Dimension D
601.3 in | 15273.0 mm
Features
High-Body inlet option for abrasive dustEven-Air™ Flow Straightener reduces wear on bag filtersAward winning Dura-Life™ Twice the Life" bag filtersOval shaped bags provide better snap for better bag cleaningUltra-Web® SB Pleated Bag OptionClean-air bag access for easier bag serviceSingle inlet, outlet and hopper reduces duct and hopper outlet costs60º conical hopper reduces dust build-upRequires less energy than comparable sized unitsRF cleaning system requires no compressed air
Note
All units 570 and larger are of panelized construction and dimension B" is from center of the inlet to bottom of the 36-in (914.4 mm) hopper outlet.
Specifications Air Pump
15.0 hp
Specifications Bag Cloth Area
9491 ft² | 882 m²
Specifications Number Of Bags
608
Specifications Plated Bag Media Area 30 Inch In Uw
8086 ft² | 751 m²
Specifications Plated Bag Media Area 40 Inch In Uw
10579 ft² | 983 m²
Specifications Plated Bag Media Area 60 Inch In Uw
16172 ft² | 1502 m²
Specifications Plated Bag Media Area 80 Inch In Uw
21219 ft² | 1971 m²
Specifications Shipping Weight
44278 lb | 20084.2 kg
Specifications Type
Walk-In Plenum for Sheltered Bag Removal
Specifications Warranty
10 years
