Donaldson® Torit® RF Baghouse Dust Collector - 7149 ft² Bag Cloth Area
Donaldson® Torit® RF Baghouse Dust Collector - 7149 ft² Bag Cloth Area
SKU:RFB-8cf75a
Efficient, energy-saving Donaldson® Torit® RF Baghouse Dust Collector for heavy dust loads with Dura-Life™ bag filters.
Regular price
$38,999.00
Regular price
Sale price
$38,999.00
Unit price
per
Initiate Order
Donaldson® Torit® RF Baghouse Dust Collector - 7149 ft² Bag Cloth Area
$38,999.00
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® RF Baghouse Dust Collector - 7149 ft² Bag Cloth Area
$38,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® RF Baghouse Dust Collector sets the standard for efficient dust collection, handling heavy loads effortlessly. With an innovative design combining cyclone precleaner and baghouse, it boasts a powerful yet energy-efficient cleaning system, reducing compressed air usage. Featuring Dura-Life™ Twice the Life" bag filters and Ultra-Web® SB pleated bag filter option, this award-winning collector delivers superior performance while consuming less energy. Its compact footprint, high-body inlet for abrasive dust, and innovative airflow straightener ensure optimal performance in industrial settings.
Product Specifications

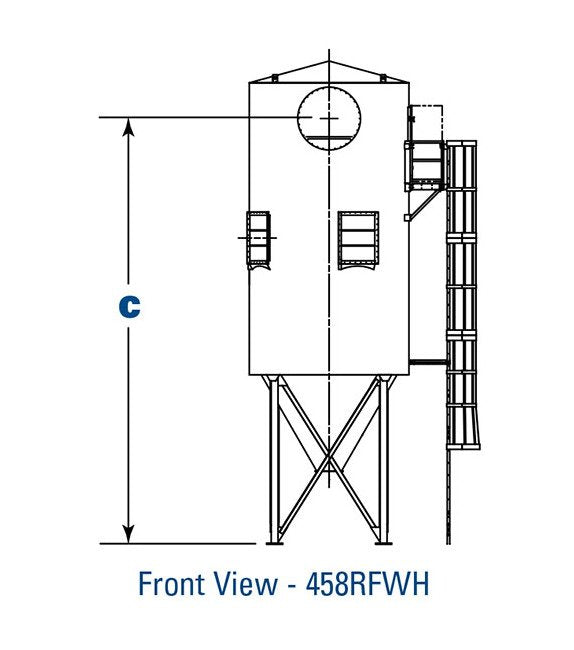

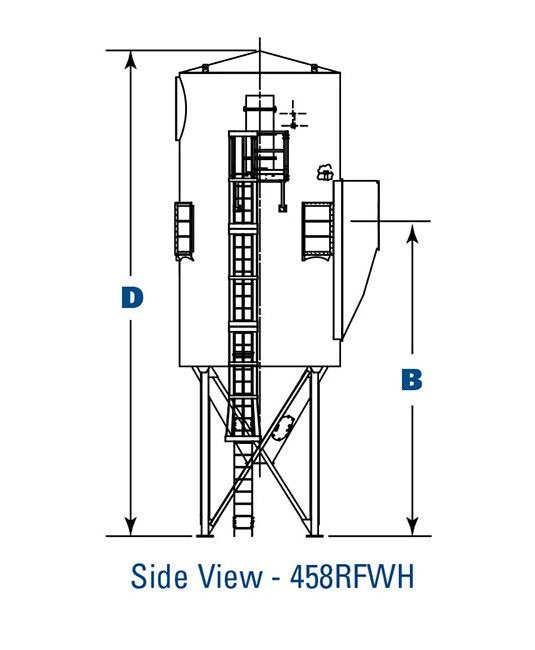

Dimensions Dimension A
157.6 in | 4003.0 mm
Dimensions Dimension B
305.4 in | 7757.2 mm
Dimensions Dimension C
434.4 in | 11033.8 mm
Dimensions Dimension D
539.1 in | 13693.1 mm
Features
High-Body inlet option for abrasive dustEven-Air™ Flow Straightener reduces wear on bag filtersAward winning Dura-Life™ Twice the Life" bag filtersOval shaped bags provide better snap for better bag cleaningUltra-Web® SB Pleated Bag OptionClean-air bag access for easier bag serviceSingle inlet, outlet and hopper reduces duct and hopper outlet costs60º conical hopper reduces dust build-upRequires less energy than comparable sized unitsRF cleaning system requires no compressed air
Note
All units 570 and larger are of panelized construction and dimension B" is from center of the inlet to bottom of the 36-in (914.4 mm) hopper outlet.
Specifications Air Pump
7.5 hp
Specifications Bag Cloth Area
7149 ft² | 664 m²
Specifications Number Of Bags
458
Specifications Plated Bag Media Area 30 Inch In Uw
6091 ft² | 566 m²
Specifications Plated Bag Media Area 40 Inch In Uw
7969 ft² | 740 m²
Specifications Plated Bag Media Area 60 Inch In Uw
12182 ft² | 1132 m²
Specifications Plated Bag Media Area 80 Inch In Uw
15984 ft² | 1485 m²
Specifications Shipping Weight
30100 lb | 13653.1 kg
Specifications Type
High Body Inlet
Specifications Warranty
10 years
