Donaldson® Torit® TD 700-1500 CFM Dust Collector
Donaldson® Torit® TD 700-1500 CFM Dust Collector
SKU:TDD-b3a3cf
Enhance productivity with the Donaldson® Torit® TD Dust Collector. Continuous-duty operation, high filtration efficiency, and energy-saving design for space-constrained applications.
Regular price
$6,899.99
Regular price
Sale price
$6,899.99
Unit price
per
Initiate Order
Donaldson® Torit® TD 700-1500 CFM Dust Collector
$6,899.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® TD 700-1500 CFM Dust Collector
$6,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

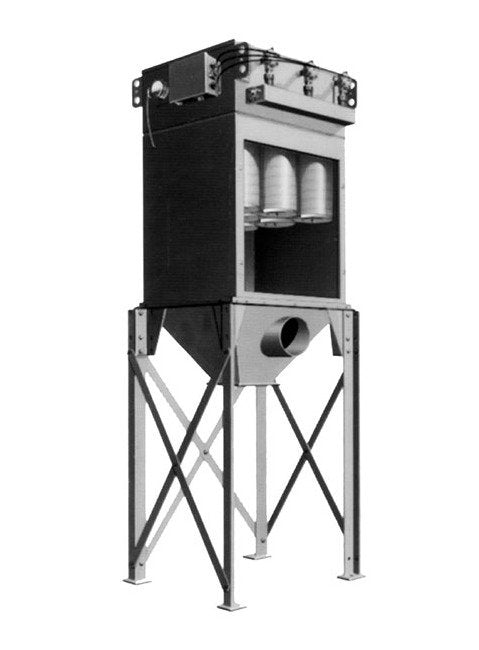

The Donaldson® Torit® TD 700 to 1500 Cubic Feet Per Minute Nominal Airflow Dust Collector is a top-tier dust collection solution that ensures uninterrupted operation with its on-line filter cleaning feature. Equipped with Ultra-Web® cartridge filters, this compact unit maximizes filtration efficiency and extends filter lifespan, making it perfect for space-constrained bin venting applications. With lower operating pressure drop for energy savings, it comes with industry-standard compliance including OSHA regulations, providing a clean and safe work environment for enhanced productivity.
Product Specifications
Additional Information
MERV (The Minimum Efficiency Reporting Value (MERV) of this filter cartridge has been determined through independent laboratory testing using ASHRAE 52.2 (2007) test standards. The MERV rating was determined at a face velocity of 118 feet per minute (36.0 meters per minute) and loading up to four inches (101.6 mm) water gauge. Actual efficiency of any filter cartridge will vary according to the specific application parameters. Dust concentration, airflow, particle characteristics, and pulse cleaning methods all affect filtration efficiency.) 15 filtration efficiency rating per ASHRAE 52.2-2007Optional tangential inlet on round TD housings preseparates dust for high-loading applicationsProvides a cleaner work environment for maximum productivityHelps support OSHA Clean Air Standards

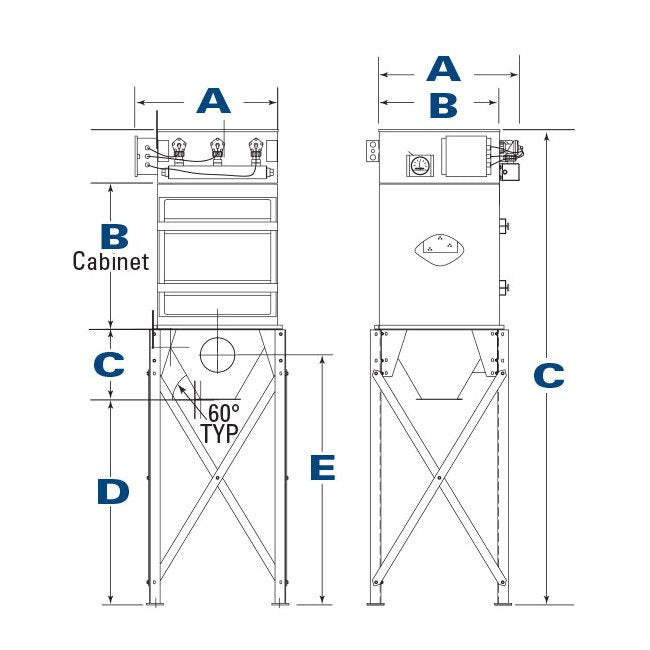

Dimensions Front View Dimension A
33.4 in | 847.9 mm
Dimensions Front View Dimension B
34.0 in | 863.6 mm
Dimensions Front View Dimension C
16.5 in | 419.1 mm
Dimensions Front View Dimension D
48.0 in | 1219.2 mm
Dimensions Front View Dimension E
58.5 in | 1485.9 mm
Dimensions Side View Dimension A
32.8 in | 831.9 mm
Dimensions Side View Dimension B
38.1 in | 968.2 mm
Dimensions Side View Dimension C
111.3 in | 2825.8 mm
Equipment Options
Cartridge filter options:Ultra-Web® FR (MERV 15)Fibra-Web® (MERV 14)Ultra-Web® SB (MERV 15)Torit-Tex™ (MERV 16)Ultra-Tek® (MERV 12)1, 2, 3, 5, 7.5, and 10 hp blowersSolid-state timerAdjustable damper (blower)Explosion ventsHopper dischargeSlide gate pack5-Gallon (141.7 Liter) pail pack55-Gallon (15,59.2 Liter) drum coverRotary airlockMagnehelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugePhotohelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugeBolt-on support legsInlet adapters
Specifications Housing Rating
±20 inH2O | ±508 mmH2O
Specifications Industry Standards
Occupational Safety and Health Administration (OSHA)
Specifications Nominal Airflow
700 to 1500 ft³/min | 1189 to 2548 m³/h
Specifications Number Of Filters
9
Specifications Number Of Valves
3
Specifications Shipping Weight
500 lb | 226.8 kg
Specifications Ultra Web Filter Area
540 ft² | 50.2 m²
