Capture welding fumes efficiently with Donaldson® Torit® Trunk 2000™ Fume Collectors.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Donaldson® Torit® Trunk 2000™ Fume Collectors
$3,499.99
Quantity: 1
Claim Your Seller Account
Donaldson® Torit® Trunk 2000™ Fume Collectors
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

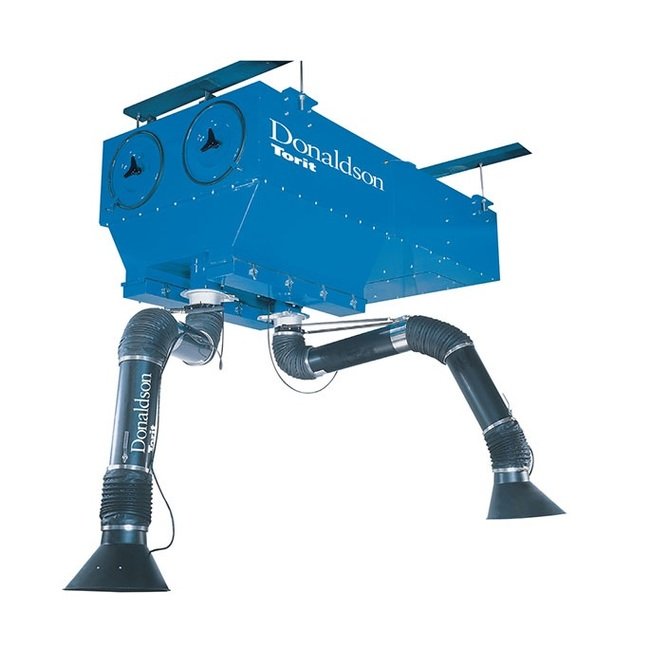

The Donaldson® Torit® Trunk 2000™ Fume Collectors are self-contained source collectors crafted for moderate-to-heavy welding applications. With a capacity to serve one or two welding stations, the ceiling-mount configuration saves floor space. The unit features FLUENT® designed inlet and dust hopper to minimize fume re-entrainment, reducing maintenance expenses. Equipped with Ultra-Web® FR filter cartridges, nanofiber technology ensures high efficiency and a long filter life, meeting MERV 15 filtration standards. The automatic pulse-cleaning system and recirculation of clean air enhance operational efficiency and cost-effectiveness.
Product Specifications
Additional Information
Automatic pulse-cleaning system for continuous welding operationsProprietary filter cleaning system lengthens filter lifeUltra-Web® FR filter cartridges featuring nanofiber technology provide high filtration efficiency and long filter lifeMERV (The Minimum Efficiency Reporting Value (MERV) of this filter cartridge has been determined through independent laboratory testing using ASHRAE 52.2 (2007) test standards. The MERV rating was determined at a face velocity of 118 feet per minute (36.0 meters per minute) and loading up to four inches (101.6 mm) water gauge. Actual efficiency of any filter cartridge will vary according to the specific application parameters. Dust concentration, airflow, particle characteristics, and pulse cleaning methods all affect filtration efficiency.) 15 filtration efficiency rating per ASHRAE 52.2-2007Recirculation of clean air reduces need for costly make-up air

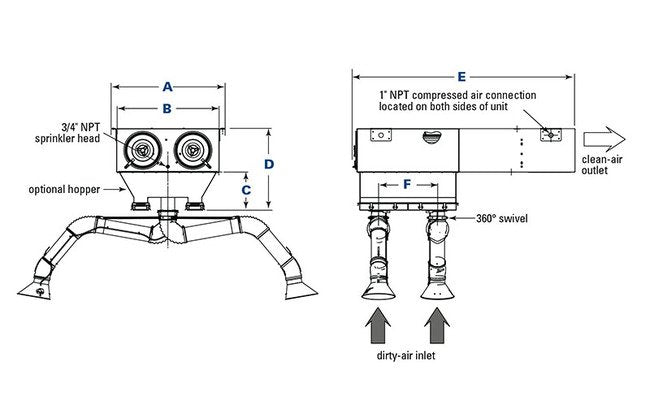

Dimensions Dimension A
50.0 in | 1270 mm
Dimensions Dimension B
45.0 in | 1143.0 mm
Dimensions Dimension C
16.9 in | 429.3 mm
Dimensions Dimension D
35.9 in | 911.9 mm
Dimensions Dimension E
97.4 in | 2474 mm
Dimensions Dimension F
25.9 in | 657.9 mm
Options
Ex-Arm - 6.5 ft (2 m), 10 ft (3.0 m), 13 ft (4.0 m)Magnehelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugePhotohelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugeHopper with re-entrainment baffles and four removal dust pansSolenoid valve silencer
Specifications Fan Sound Level
71 dBA
Specifications Filter Area
636 ft² | 59.1 m²
Specifications Nominal Airflow
890 ft³/min | 1512 m³/h
Specifications Number Of Filters Ultra Web Fr
4
Specifications Number Of Valves
2
Specifications Pulse Sound Level
80.5 dBA
Specifications Shipping Weight
790 lb | 358.3 kg
Specifications Valve Size
3/4 in
Standard Features
Ultra-Web® FR cartridges5 hp TEFC motorOne (1) Ex-Arm with lightSprinkler head110 VAC control box 208/230/460/60/3 voltage
