Donaldson Downflo® Oval 4 Dust Collector - 45.0"
Donaldson Downflo® Oval 4 Dust Collector - 45.0"
SKU:DOW-620726
Experience superior dust collection with the Donaldson Downflo® Oval 4 - 45.0" Dust Collector for cleaner air and cost savings.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Donaldson Downflo® Oval 4 Dust Collector - 45.0"
$5,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Downflo® Oval 4 Dust Collector - 45.0"
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

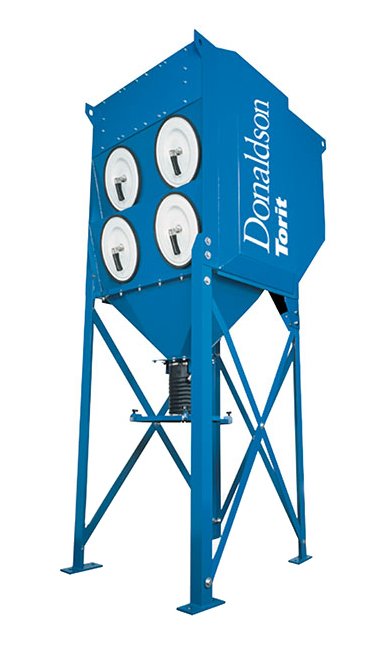

The Donaldson Downflo® Oval 4 Dust Collector with its cutting-edge Ultra-Web® nanofiber filtration technology is a top-tier solution for capturing dust particles efficiently. With a robust construction meeting industrial standards, this collector ensures cleaner air, extended filter life, and enhanced cost savings. Its compact design, customizable sizes, and energy-efficient operation make it a superior choice for facilities requiring high-performance dust collection systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

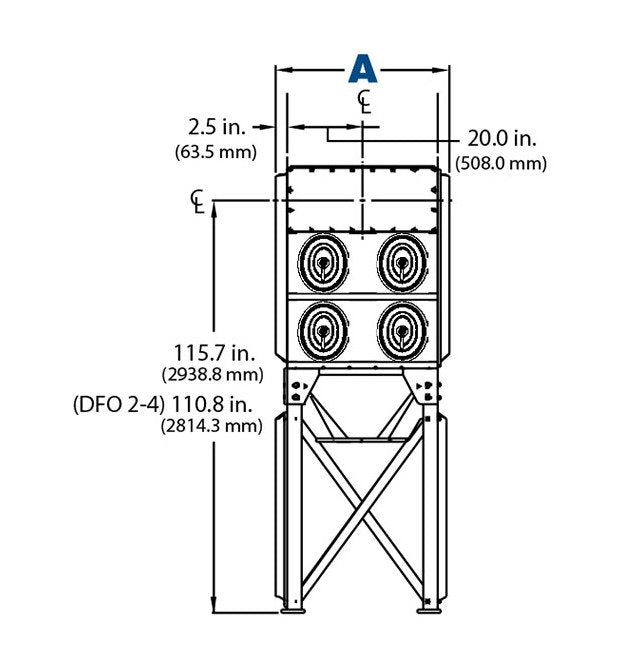

Dimensions Dimension A
45.0 in | 1143.0 mm
Dimensions Dimension B
118.8 in | 3017.5 mm
Dimensions Dimension C
62 in | 1574.8 mm
Note
Provided through Donaldson® Torit® fan program.
Operating Conditions Compressed Air Required
60 psi | 4.1 bar
Operating Conditions Housing Construction Collector Thickness
10 gauge
Operating Conditions Housing Construction Tubesheet Thickness
7 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Wind Load Rating
100 mph | 161 km/h
Operations
23 standard model sizesCustomized sizes availableMany options and accessoriesExceptionally compact designSignificant energy savings
Specifications Applications
Fiberglass Routing & Cutting
Specifications Approximate Shipping Weight
1100 lb | 499.0 kg
Specifications Nominal Airflow
380 to 3190 ft³/min | 645.5 to 5418.7 m³/h
Specifications Number Of Cartridges
4
Specifications Number Of Filters
4
Specifications Number Of Filter Rows
2
Specifications Number Of Valves
4
Specifications Ultra Web Filter Area
760 ft² | 70.6 m²
