Donaldson Downflo Oval 3 Filters Dust Collector - 30 in Dimension A
Donaldson Downflo Oval 3 Filters Dust Collector - 30 in Dimension A
SKU:DOW-7866cc
Enhance air quality and reduce operational costs with the Donaldson Downflo Oval 3 Filters Dust Collector.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Donaldson Downflo Oval 3 Filters Dust Collector - 30 in Dimension A
$8,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Downflo Oval 3 Filters Dust Collector - 30 in Dimension A
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

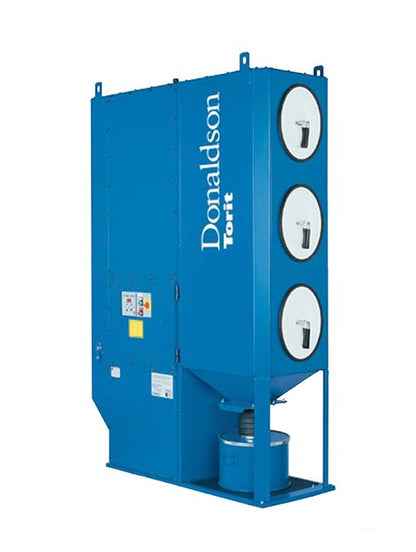

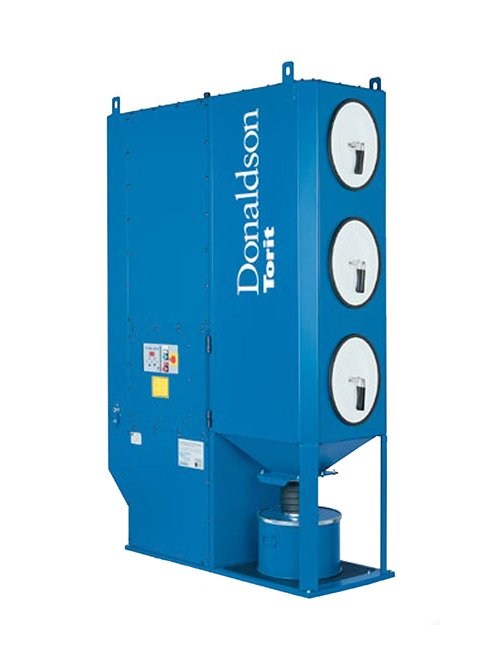

The Donaldson Downflo Oval (DFO) dust collector is a high-performance solution designed to exceed industry standards for filtration efficiency and durability. Featuring innovative Ultra-Web® nanofiber technology, this collector offers up to 25% more filtration capacity than comparable models. With three filter rows, the DFO ensures cleaner air, extended filter life, and significant cost savings. Its compact and self-contained design, equipped with a range of exclusive features, makes it ideal for institutional and government facilities seeking reliable dust control solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The DFO advantage is found in the collector's proprietary design and components. The combination of a new cabinet design that greatly lowers cabinet velocities, proprietary Extra-Life™ cleaning technology, and proven Ultra-Web® nanofiber filters allows more airflow through the collector without increasing the size of the footprint or damaging the filters.A smaller collector helps lower the initial purchase price, reduces filter replacement costs and opens up valuable manufacturing floor space.

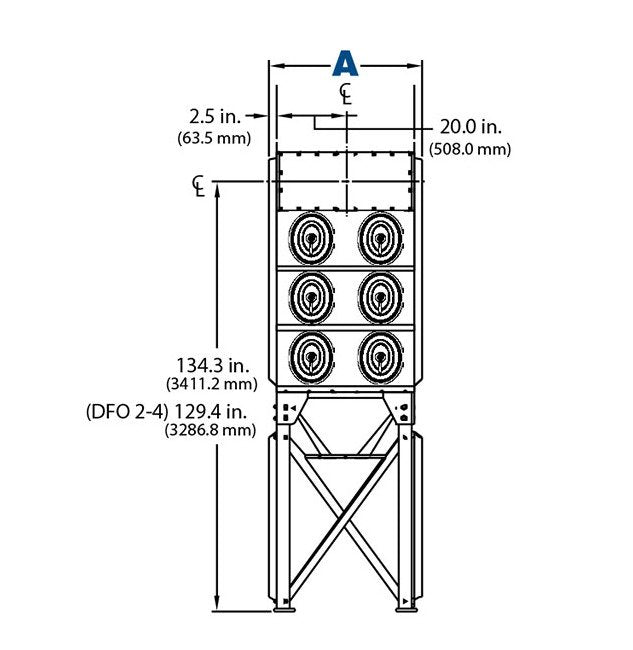

Dimensions Dimension A
30 in | 762.0 mm

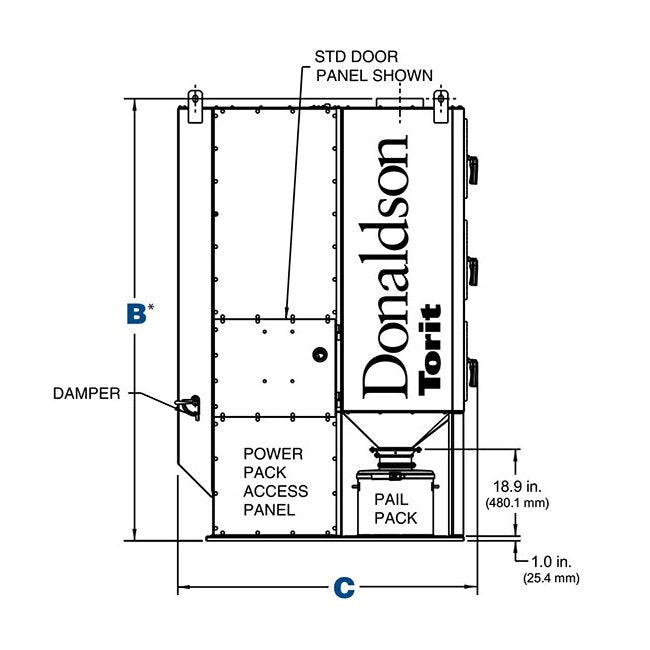

Dimensions Dimension B
96.0 in | 2438.4 mm
Dimensions Dimension C
65.0 in | 1651.0 mm
Operating Conditions Compressed Air Required
60 psi | 4.1 bar

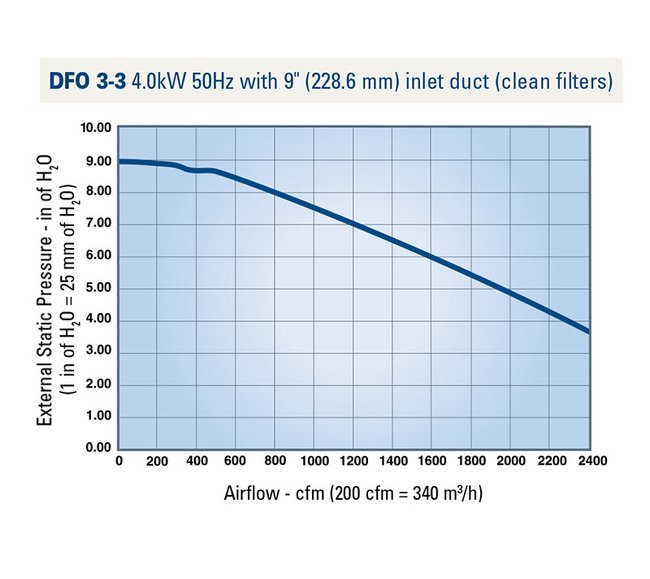

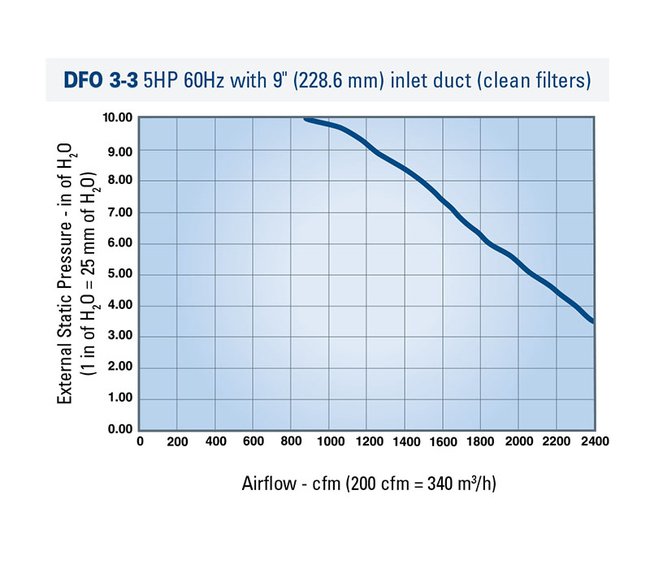

Operating Conditions External Static Pressure
1 inH2O | 25 mmH2O
Operating Conditions Horsepower
5 hp
Operating Conditions Housing Construction Material Thickness
12 gauge
Operating Conditions Housing Rating
-20 inH2O | -508 mmH2O
Operating Conditions Seismic Rating Zone
4
Operating Conditions Sound Level
70 dBA
Operations
Incorporate several exclusive and unique featuresCompletely self-contained, "plug-and-play" type unitsPackaged with power pack, controls, silencer, damper, dust container and moreRemarkably quiet operationExceptionally compact designEasily movable through standard aisles and doorways
Specifications Approximate Shipping Weight
1300 lb | 589.7 kg
Specifications Nominal Airflow
300 to 2400 ft³/min | 509.6 to 4076.8 m³/h
Specifications Number Of Cartridges
3
Specifications Number Of Filters
3
Specifications Number Of Filter Rows
3
Specifications Number Of Valves
3
Specifications Ultra Web Filter Area
570 ft² | 53.0 m²
