Donaldson Downflo Workstation 5500 CFM Dust Collector
Donaldson Downflo Workstation 5500 CFM Dust Collector
SKU:DOW-d9ef0d
Enhance workplace safety with the Donaldson Downflo 5500 CFM Dust Collector, designed for efficient dust filtration in industrial settings.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Donaldson Downflo Workstation 5500 CFM Dust Collector
$6,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Downflo Workstation 5500 CFM Dust Collector
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

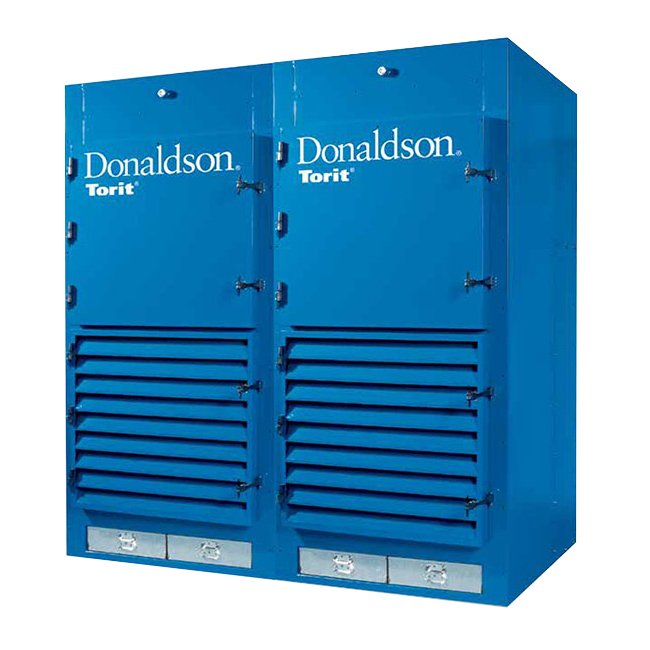

The Donaldson Downflo Workstation 5500 CFM Dust Collector is a cutting-edge solution for industrial environments requiring efficient dust collection. With a nominal airflow of 5500 ft³/min, 6 filters, and a 10-year warranty, this workstation ensures a cleaner and safer work area. Its proprietary Ultra-Web cartridge filters and ExtraLife™ cleaning technology offer superior performance in metalworking and woodworking applications. Energy-efficient and easy to maintain, this workstation is ideal for government and institutional buyers seeking top-tier filtration systems.
Product Specifications
Additional Information
The Downflo® WorkStation's advantages are found in the collector's exclusive design and proprietary components. Featuring a ledgeless design in combination with proprietary Ultra-Web® filter media and ExtraLife™ cleaning technology, the DWS delivers exceptional performance in metalworking, woodworking, and process applications where high filtration efficiency and ledgeless construction is often a requirement.

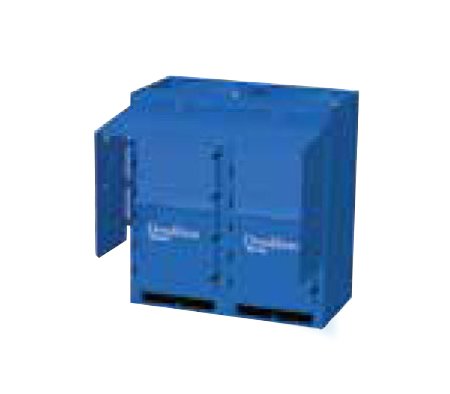

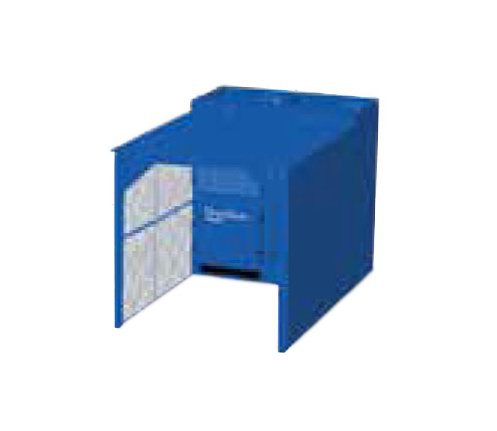

Design Options Canopy With Side Shields
45 x 36 x 90 in | 1143 x 914 x 2286 mm
Design Options Note For Design Options
Dimensions are width x depth x height
Design Options Soft Wall Acoustical Curtains
67.5 x 90 x 90 in | 1715 x 2286 x 2286 mm
Design Options Soft Wall Weld Curtains
67.5 x 90 x 90 in | 1715 x 2286 x 2286 mm

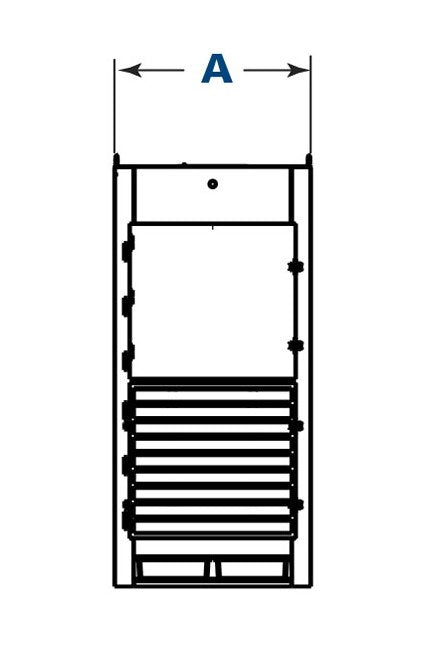

Dimensions Dimension A
45.0 in | 1143.0 mm

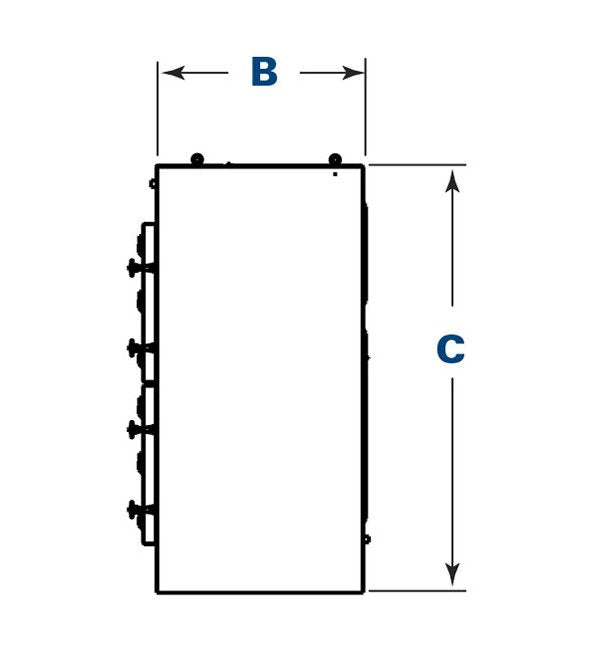

Dimensions Dimension B
47.8 in | 1214.1 mm
Dimensions Dimension C
96.0 in | 2438.4 mm
Features
Flexible, modular, self-contained workstationsProprietary Ultra-Web® cartridge filters provide cleaner air longerEasy filter access requires no toolsNo hoods or ductwork requiredEnergy savings - recirculate clean air and reduce the need for costly make-up airLedgeless construction minimizes dust build up inside the collectorReversible louver inlets
Operations
8 standard model sizesCustomized sizes availableMany options and accessories
Purpose
Most basic booth/hooding arrangementLightweight structure for use under most light conditionsLightweight structure for moderate sound controlHeavy-duty structure/smooth walls for easy washdownHeavy-duty structure for higher sound control
Specifications Nominal Airflow
5500 ft³/min | 9343 m³/h
Specifications Number Of Drawers
2
Specifications Number Of Filters
6
Specifications Number Of Modules
1
Specifications Number Of Valves
6
Specifications Shipping Weight
1350 lb | 612.3 kg
Specifications Ultra Web Filter Area
1140 ft² | 105.9 m²
Specifications Warranty
10 years
