Donaldson Downflo Workstation Dust Collector - 13500 ft³/min Airflow
Donaldson Downflo Workstation Dust Collector - 13500 ft³/min Airflow
SKU:DOW-6559b9
Enhance air quality in industrial settings with the Donaldson Downflo® Workstation Dust Collector.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Donaldson Downflo Workstation Dust Collector - 13500 ft³/min Airflow
$3,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Downflo Workstation Dust Collector - 13500 ft³/min Airflow
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

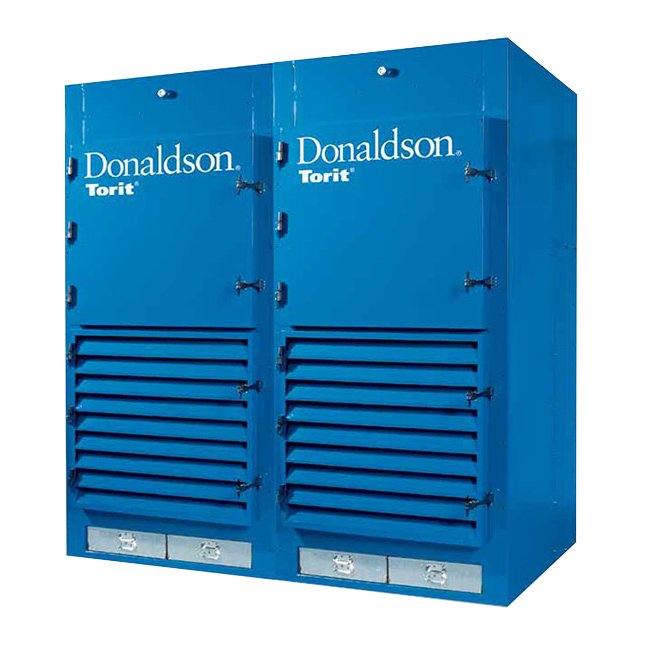

The Donaldson Downflo® Workstation Dust Collector offers exceptional performance with a nominal airflow of 13500 ft³/min. Designed for industrial settings with grinding, sanding, welding, and more, this modular workstation features proprietary Ultra-Web® cartridge filters for extended filter life and energy savings. Its ledgeless construction minimizes dust buildup, ensuring cleaner air quality. With a 10-year warranty and various design options available, this dust collector is a reliable and efficient solution for metalworking, woodworking, and other industrial applications.
Product Specifications
Additional Information
The Downflo® WorkStation's advantages are found in the collector's exclusive design and proprietary components. Featuring a ledgeless design in combination with proprietary Ultra-Web® filter media and ExtraLife™ cleaning technology, the DWS delivers exceptional performance in metalworking, woodworking, and process applications where high filtration efficiency and ledgeless construction is often a requirement.

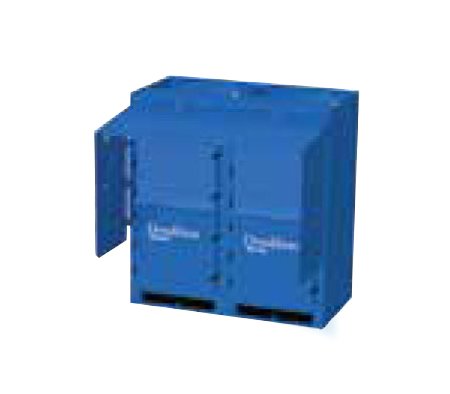

Design Options Hard Wall Acoustic Panels
135 x 90 x 90 in | 3429 x 2286 x 2286 mm
Design Options Hard Wall Galvanized Panels
135 x 90 x 90 in | 3429 x 2286 x 2286 mm
Design Options Note For Design Options
Dimensions are width x depth x height

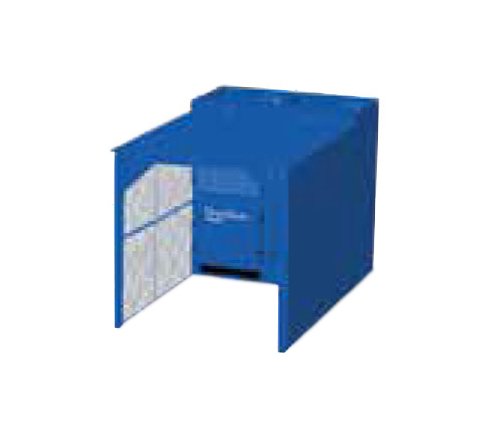

Design Options Soft Wall Acoustical Curtains
135 x 90 x 90 in | 3429 x 2286 x 2286 mm
Design Options Soft Wall Weld Curtains
135 x 90 x 90 in | 3429 x 2286 x 2286 mm

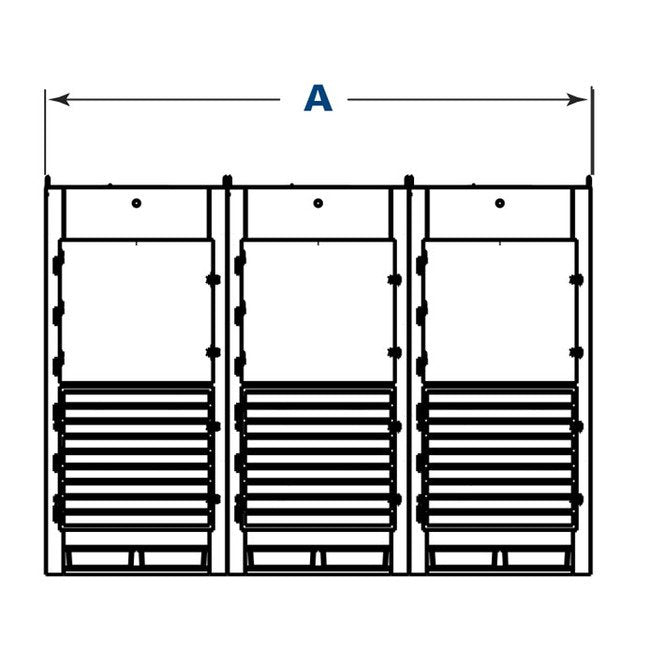

Dimensions Dimension A
135.0 in | 3429.0 mm

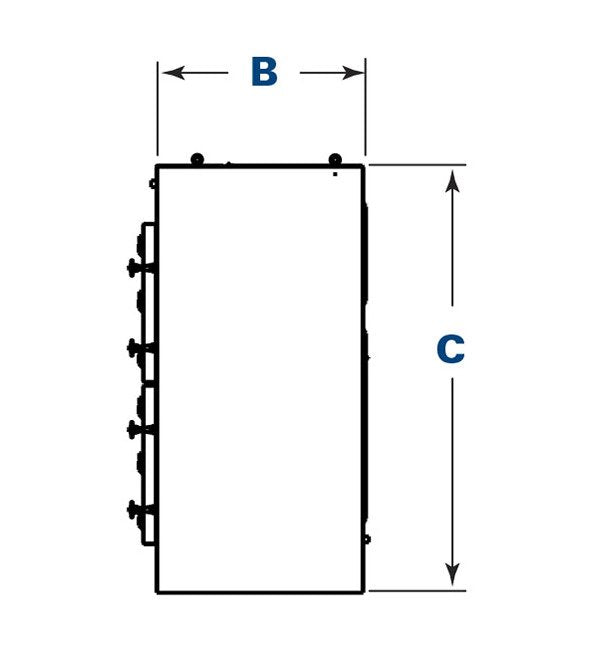

Dimensions Dimension B
47.8 in | 1214.1 mm
Dimensions Dimension C
96.0 in | 2438.4 mm
Features
Flexible, modular, self-contained workstationsProprietary Ultra-Web® cartridge filters provide cleaner air longerEasy filter access requires no toolsNo hoods or ductwork requiredEnergy savings - recirculate clean air and reduce the need for costly make-up airLedgeless construction minimizes dust build up inside the collectorReversible louver inlets
Operations
8 standard model sizesCustomized sizes availableMany options and accessories
Purpose
Most basic booth/hooding arrangementLightweight structure for use under most light conditionsLightweight structure for moderate sound controlHeavy-duty structure/smooth walls for easy washdownHeavy-duty structure for higher sound control
Specifications Nominal Airflow
13500 ft³/min | 22932 m³/h
Specifications Number Of Drawers
6
Specifications Number Of Filters
12
Specifications Number Of Modules
3
Specifications Number Of Valves
12
Specifications Shipping Weight
3900 lb | 1769.0 kg
Specifications Ultra Web Filter Area
2280 ft² | 211.8 m²
Specifications Warranty
10 years
