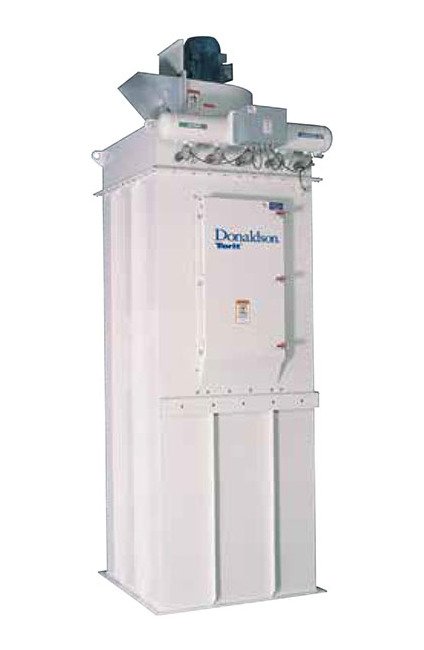

Donaldson FS Pulse Jet Bin Ventilator - 1920 to 4480 ft³/min

Name: Donaldson FS Pulse Jet Bin Ventilator - 1920 to 4480 ft³/min
Brand: Dust Collector Services, Inc.
SKU: FSP-d3e1a1
Price: 7499.99 USD
Availability: OutOfStock

SKU:FSP-d3e1a1

Efficient Donaldson FS Pulse Jet Bin Ventilator for dust collection & venting applications. All-welded construction, side bag filter removal, integral fan option up to 75 hp.

$7,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Donaldson FS Pulse Jet 1920 to 4480 Cubic Feet Per Minute Bin Ventilator offers a cost-effective solution for dust collection and bin venting applications. With Donaldson® Torit® as the brand, this ventilator features a sturdy all-welded construction ensuring durability and air/water integrity. Its side bag filter removal design allows for easy installation in low headroom spaces. Notably, the unique cleaning system minimizes moisture and particulate issues, while the integral fan option up to 75 hp reduces space requirements. With a cloth area of 640 ft² and dimensions of 70x70x94.1 inches, this ventilator is efficient and space-saving.

Product Specifications

Additional Information

Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs

Dimensions Dimension A

70 in | 1778.0 mm

Dimensions Dimension B

70 in | 1778.0 mm

Dimensions Dimension C

94.1 in | 2390.1 mm

Specifications Cloth Area

640 ft² | 59.5 m²

Specifications Length Of Bag Filters

6 ft | 1.8 m

Specifications Nominal Airflow

1920 to 4480 ft³/min | 3261 to 7610 m³/h

Specifications Shipping Weight

2100 lb | 952.5 kg

Donaldson FS Pulse Jet Bin Ventilator - 1920 to 4480 ft³/min
