Donaldson MBW Modular Baghouse Dust Collector - 3117 ft² Bag Cloth Area
Donaldson MBW Modular Baghouse Dust Collector - 3117 ft² Bag Cloth Area
SKU:MOD-6eb053
Reliable, efficient, and durable dust collector with Dura-Life™ bag filters and advanced cleaning technology.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Donaldson MBW Modular Baghouse Dust Collector - 3117 ft² Bag Cloth Area
$18,999.00
Quantity: 1
Claim Your Seller Account
Donaldson MBW Modular Baghouse Dust Collector - 3117 ft² Bag Cloth Area
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

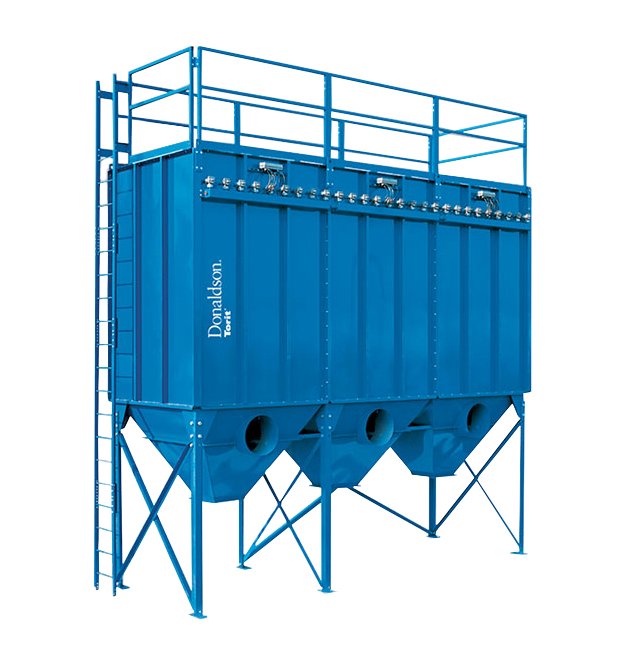

The Donaldson® Torit® Modular Baghouse 3117 ft² Dust Collector offers unparalleled reliability and efficiency with continuous-duty pulse-jet operation. Featuring Dura-Life™ bag filters for extended bag life and reduced emissions, this unit is designed to meet the most demanding air filtration needs. Its high body inlet and square models optimize airflow, while the Ultra-Web® Pleated Bag Option and clean air bag access ensure easy maintenance. With advanced features like integral fan options and computer-designed inlets, the MBW Modular Baghouse delivers exceptional value and performance for industrial and institutional applications.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

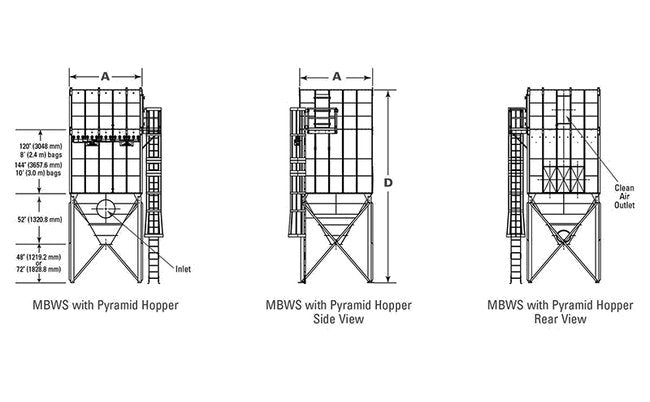

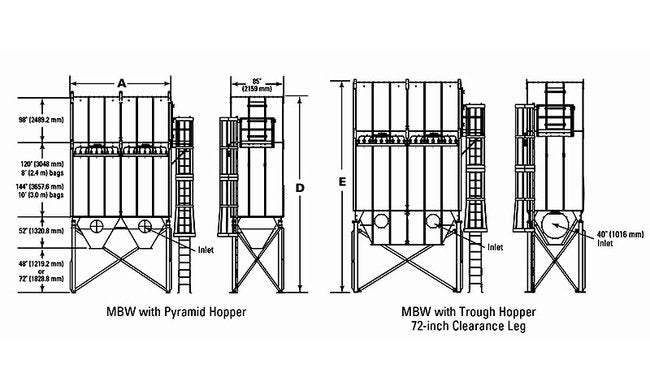

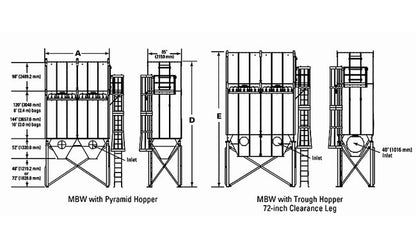

Dimensions Dimension A Mbtmbw
241.0 in | 6121.4 mm
Dimensions Dimension B Mbt 48 In
268.2 in | 6812.3 mm
Dimensions Dimension B Mbt 72 In
292.2 in | 7421.9 mm
Dimensions Dimension C Mbt
292.2 in | 7421.9 mm
Dimensions Dimension D Mbt 48 In
294.1 in | 7470.1 mm
Dimensions Dimension D Mbt 72 In
318.1 in | 8079.7 mm
Dimensions Dimension E Mbw
318.1 in | 8079.7 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
3117 ft² | 289.6 m²
Specifications Number Of Bags
243
Specifications Number Of Valves
27
Specifications Plated Bag Media Area 20 Inch In Uw
2867 ft² | 266.4 m²
Specifications Plated Bag Media Area 40 Inch In Uw
5735 ft² | 532.8 m²
Specifications Plated Bag Media Area 60 Inch In Uw
8602 ft² | 799.2 m²
Specifications Plated Bag Media Area 80 Inch In Uw
11494 ft² | 1067.8 m²
Specifications Shipping Weight
14700 lb | 6667.8 kg
Specifications Warranty
10 years
