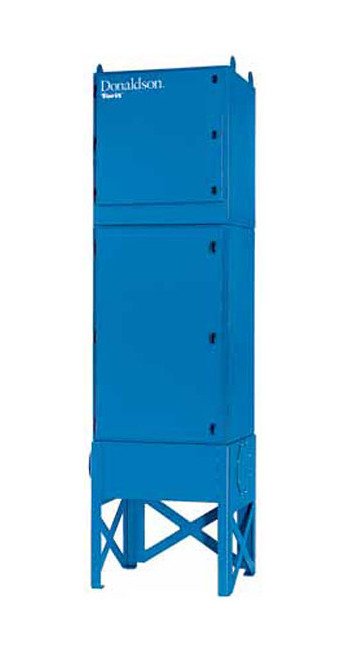

Donaldson MDV Modular Mediafilter™ Vertical Series Mist Collector
Donaldson MDV Modular Mediafilter™ Vertical Series Mist Collector
SKU:MOD-d82195
High-performance mist collector for mist, smoke, and dust filtration in industrial metal making applications.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Donaldson MDV Modular Mediafilter™ Vertical Series Mist Collector
$5,999.99
Quantity: 1
Claim Your Seller Account
Donaldson MDV Modular Mediafilter™ Vertical Series Mist Collector
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson MDV Modular Mediafilter™ Vertical Series Mist Collector is engineered for high performance in mist, smoke, and dust filtration. With a three-stage filtration system ensuring maximum efficiency and filter longevity, this collector is ideal for wet grinding, wet machining, soldering/brazing, die casting, and other metal making applications. Boasting a versatile design capable of handling coolant mist, wetted dust, swarf, liquids, and smoke in tough industrial environments, this collector features a high efficiency airfoil fan powered by a NEMA Premium® Efficiency Electric Motor, optimizing performance while cutting operating costs.
Product Specifications
Additional Information
Vertical orientation enhances filter drainage and improves vee-bag filter lifeVariety of design layouts and filter choices for both flexibility and expandabilityLarger custom sizes availableProvides a cleaner work environment for maximum productivityHelps support OSHA Clean Air Standards

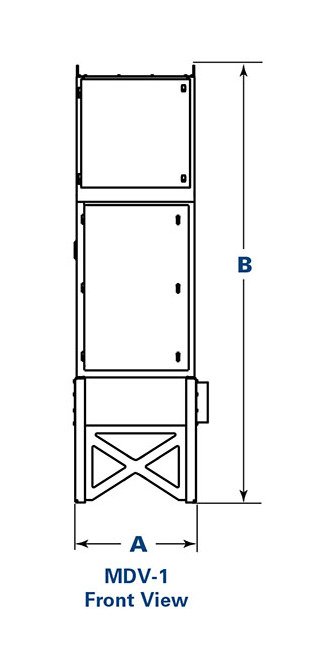

Dimensions Dimension A
30.8 in | 782.3 mm
Dimensions Dimension B
113.6 in | 2885.4 mm

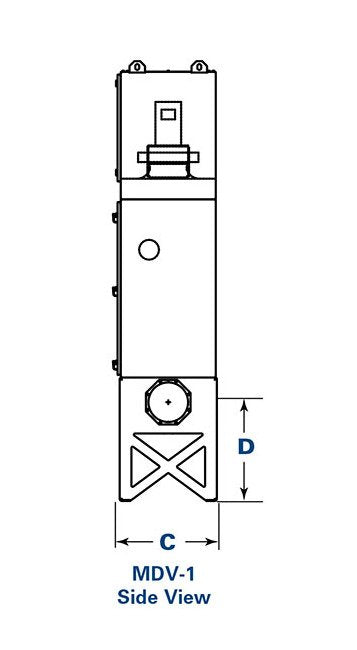

Dimensions Dimension C
25.1 in | 637.5 mm
Dimensions Dimension D
25.5 in | 647.7 mm
Equipment Options
PrefilterImpinger4" (101.6 mm) Multi-VeeFirst-stage high efficiency filter, 24 x 24 x 4 inches (609.6 x 609.6 x 101.6 mm)2" (50.8 mm) P-Trap with optional Y-Strainer assemblyHEPA or 95% D.O.P. filter module, 24 x 24 x 11.5 inches (609.6 x 609.6 x 292.1 mm) with Minihelic® (Minihelic is a registered trademark of Dwyer Instruments, Inc.) gaugeSprinkler head
Note
Significantly improve the performance of your collector with genuine Donaldson Torit replacement filters and parts.All Rights Reserved. All products, product specifications, and data (airflow, capacity, dimensions, or availability) are subject to change without notice, and may vary by region or country. Donaldson Torit is a registered trademark of Donaldson Company, Inc. Contains Donaldson proprietary technology.
Specifications Inlet Collar
10 in | 254.0 mm
Specifications Motor Power At 1000 Cubic Feet Per Minute Ftmin N
1.5 hp
Specifications Motor Power At 2000 Cubic Feet Per Minute Ftmin N
3 hp
Specifications Nominal Airflow
1000 ft³/min | 2000 ft³/min | 1699 m³/h | 3397 m³/h
Specifications Primary Filter Area
126 ft² | 11.7 m²
Specifications Shipping Weight
790 lb | 358.3 kg
