Donaldson Model DB-800 Downdraft Benches
Donaldson Model DB-800 Downdraft Benches
SKU:MOD-b1c657
Powerful dust collection for small parts grinding. Compact design with built-in light. Optional features for customization.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Donaldson Model DB-800 Downdraft Benches
$2,499.99
Quantity: 1
Claim Your Seller Account
Donaldson Model DB-800 Downdraft Benches
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

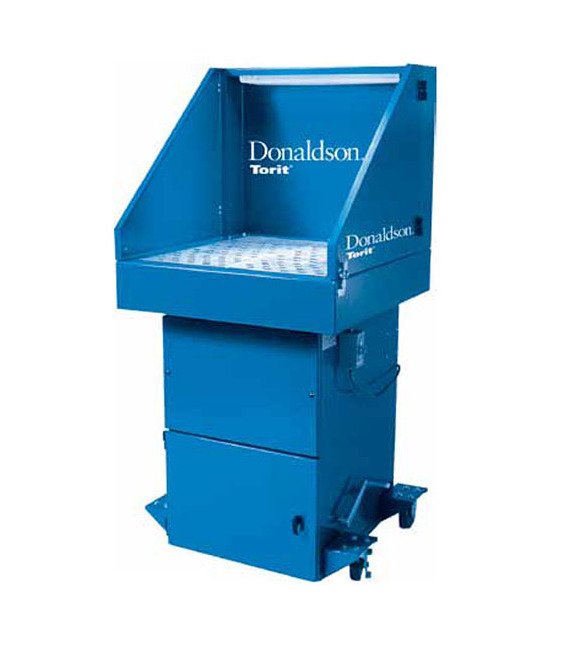

The Donaldson Model DB-800 Downdraft Benches are compact yet powerful dust collection solutions designed for small parts grinding and finishing processes. Featuring a heavy-duty welded cabinet, a dependable direct drive fan, and hinged side-wing panels for accommodating longer workpieces, these benches ensure efficient dust collection. With a built-in fluorescent light illuminating the work area, maintenance is made easy with quick access to the dust drawer. The optional features such as brass shaker bar and motor starter enhance customization, while the standard features like the fully-welded work surface and EZ Filter Pack™ ensure compliance with OSHA Clean Air Standards.
Product Specifications
Additional Information
Manually-operated shaker makes bag filter cleaning easyFilter changes have never been easier with the EZ Filter Pack™, a one-piece lightweight filter bag pack, that installs without tools and provides a positive pressure sealHelps support OSHA Clean Air Standards

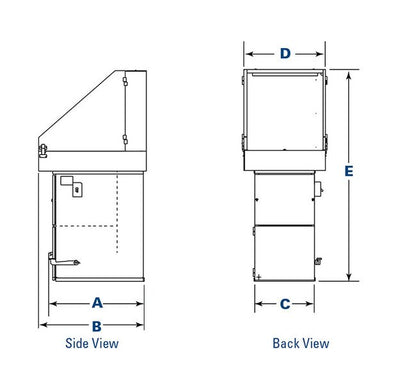

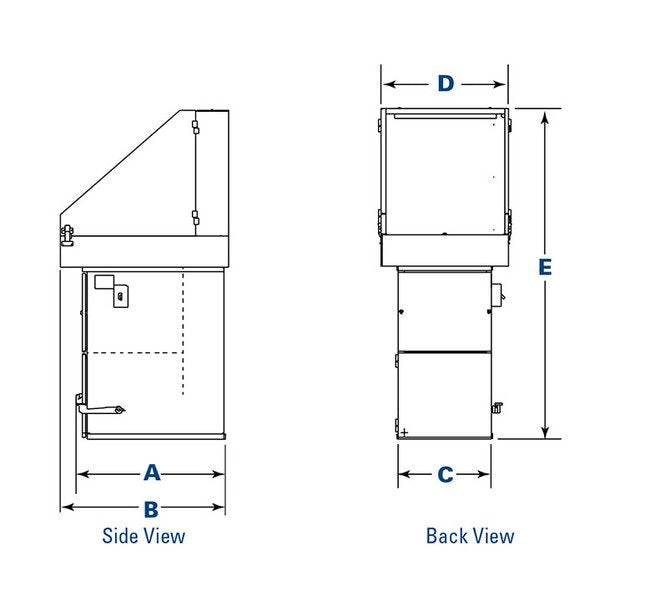

Dimensions Dimension A
27.5 in | 698.5 mm
Dimensions Dimension B
31.0 in | 787.4 mm
Dimensions Dimension C
22.4 in | 569.0 mm
Dimensions Dimension D
30.0 in | 762.0 mm
Dimensions Dimension E
62.7 in | 1592.6 mm
Note
Significantly improve the performance of your collector with genuine Donaldson Torit replacement filters and parts.All Rights Reserved. All products, product specifications, and data (airflow, capacity, dimensions, or availability) are subject to change without notice, and may vary by region or country. Donaldson Torit is a registered trademark of Donaldson Company, Inc. Contains Donaldson proprietary technology.
Optional Features
Brass shaker barMotor starterCastersMagnehelic® (Magnehelic is a registered trademark of Dwyer Instruments, Inc.) gaugeScratch-resistant work surfaceBag options on EZ Filter PackPolyester sateenWoven polyesterPolypropylene
Specifications Downdraft Velocity
125 fpm | 38.1 m/min
Specifications Dust Drawer Volume
0.43 ft² | 0.04 m²
Specifications Filter Area
60 ft² | 5.6 m²
Specifications Frequency
60 Hz
Specifications Motor
1.5 hp
Specifications Nominal Airflow
700 ft³/min | 1189 m³/h
Specifications Phase
1
Specifications Shipping Weight
280 lb | 127.0 kg
Specifications Sound Level
74 dBA
Specifications Voltage
115 V | 230 V
Specifications Warranty
10 years
Standard Features
Heavy-duty, fully-welded work surface supports 50 lb/ft²Galvanized manual shaker barFactory-installed, cotton sateen EZ Filter Pack™Blue, indoor, industrial-grade, texturized paintTEFC motor (complies with EISA)Prewired fan controlsFluorescent light fixture
