Donaldson Modular Baghouse 1039 Sq Ft Dust Collector
Donaldson Modular Baghouse 1039 Sq Ft Dust Collector
SKU:MOD-e24792
Reliable and efficient dust collector with Dura-Life™ filters for reduced emissions and longer bag life.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Donaldson Modular Baghouse 1039 Sq Ft Dust Collector
$8,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Modular Baghouse 1039 Sq Ft Dust Collector
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

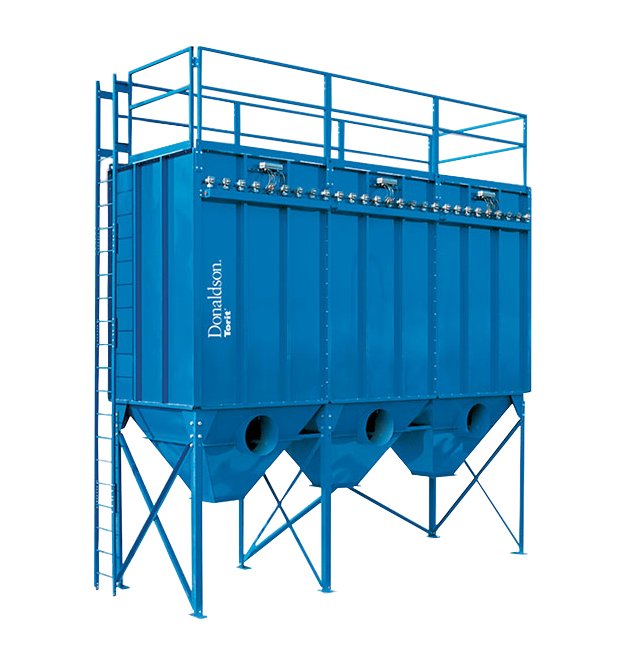

The Donaldson® Torit® Modular Baghouse 1039 Sq Ft Dust Collector offers unparalleled durability and efficiency in dust collection. Featuring advanced Dura-Life™ bag filters and Ultra-Web® Spunbond Pleated Bags, this unit ensures extended filter life, reduced emissions, and optimized airflow. With 10 years of warranty, 81 bags, and 9 valves, it provides reliable continuous-duty operation and requires minimal maintenance. Ideal for government and institutional use, this dust collector meets stringent industry standards for performance and sustainability.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

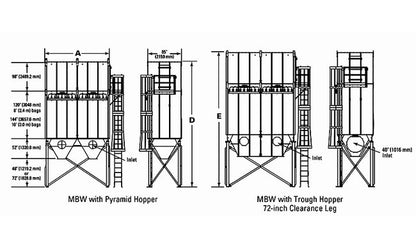

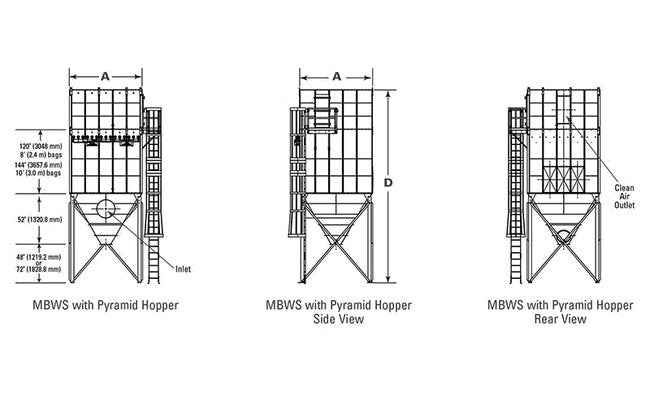

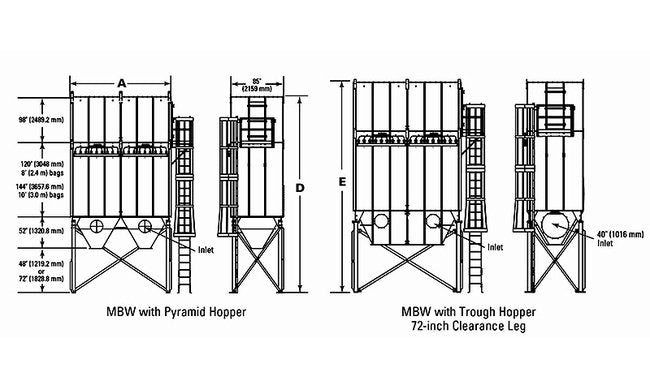

Dimensions Dimension A Mbtmbw
85.0 in | 2159.0 mm
Dimensions Dimension B Mbt 48 In
268.2 in | 6812.3 mm
Dimensions Dimension B Mbt 72 In
292.2 in | 7421.9 mm
Dimensions Dimension D Mbt 48 In
294.1 in | 7470.1 mm
Dimensions Dimension D Mbt 72 In
318.1 in | 8079.7 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
1039 ft² | 96.5 m²
Specifications Number Of Bags
81
Specifications Number Of Valves
9
Specifications Plated Bag Media Area 20 Inch In Uw
956 ft² | 88.8 m²
Specifications Plated Bag Media Area 40 Inch In Uw
1912 ft² | 177.6 m²
Specifications Plated Bag Media Area 60 Inch In Uw
2867 ft² | 266.4 m²
Specifications Plated Bag Media Area 80 Inch In Uw
3831 ft² | 355.9 m²
Specifications Shipping Weight
6800 lb | 3084.4 kg
Specifications Warranty
10 years
