Donaldson Modular Baghouse Dust Collector - 1299 ft² Bag Cloth Area
Donaldson Modular Baghouse Dust Collector - 1299 ft² Bag Cloth Area
SKU:MOD-1dd9ba
Reliable, efficient Donaldson Modular Baghouse Dust Collector for industrial air filtration needs. Dura-Life™ bag filters, optional Ultra-Web® Pleated Bags, and 10-year warranty for enhanced performance and cost-efficiency.
Regular price
$12,500.99
Regular price
Sale price
$12,500.99
Unit price
per
Initiate Order
Donaldson Modular Baghouse Dust Collector - 1299 ft² Bag Cloth Area
$12,500.99
Quantity: 1
Claim Your Seller Account
Donaldson Modular Baghouse Dust Collector - 1299 ft² Bag Cloth Area
$12,500.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Modular Baghouse 1299 ft² Dust Collector is a reliable solution delivering efficient, continuous-duty, pulse-jet operation. Featuring breakthrough Dura-Life™ bag filters, this collector ensures longer bag life, reduced emissions, and optimal airflow with minimal abrasion. With 81 bags and 10 years warranty, it offers value, ease of maintenance, and efficient operation. Optional Ultra-Web® Pleated Bags enhance performance while reducing emissions and operating costs, making it a sustainable choice for industrial facilities.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

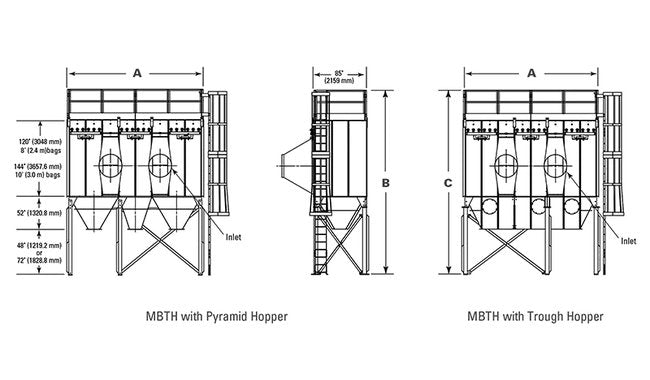

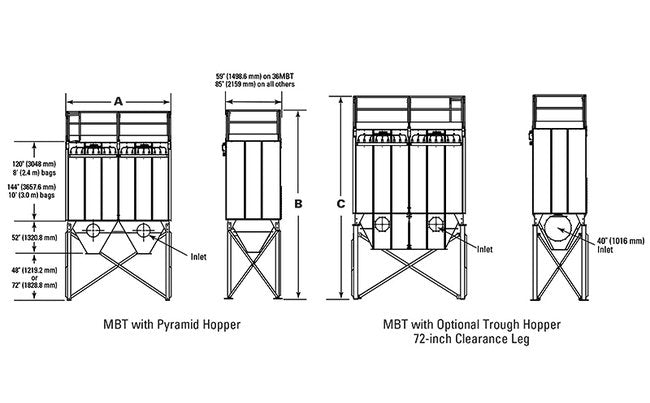

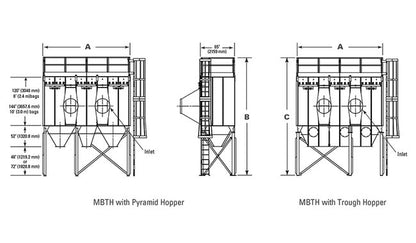

Dimensions Dimension A Mbtmbw
111.0 in | 2819.4 mm
Dimensions Dimension B Mbt 48 In
314.8 in | 7995.9 mm
Dimensions Dimension B Mbt 72 In
338.8 in | 8605.5 mm
Dimensions Dimension D Mbt 48 In
364.7 in | 9263.4 mm
Dimensions Dimension D Mbt 72 In
388.7 in | 9873 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
1299 ft² | 120.7 m²
Specifications Number Of Bags
81
Specifications Number Of Valves
9
Specifications Plated Bag Media Area 20 Inch In Uw
956 ft² | 88.8 m²
Specifications Plated Bag Media Area 40 Inch In Uw
1912 ft² | 177.6 m²
Specifications Plated Bag Media Area 60 Inch In Uw
2867 ft² | 266.4 m²
Specifications Plated Bag Media Area 80 Inch In Uw
3831 ft² | 355.9 m²
Specifications Shipping Weight
7690 lb | 3488.1 kg
Specifications Warranty
10 years
