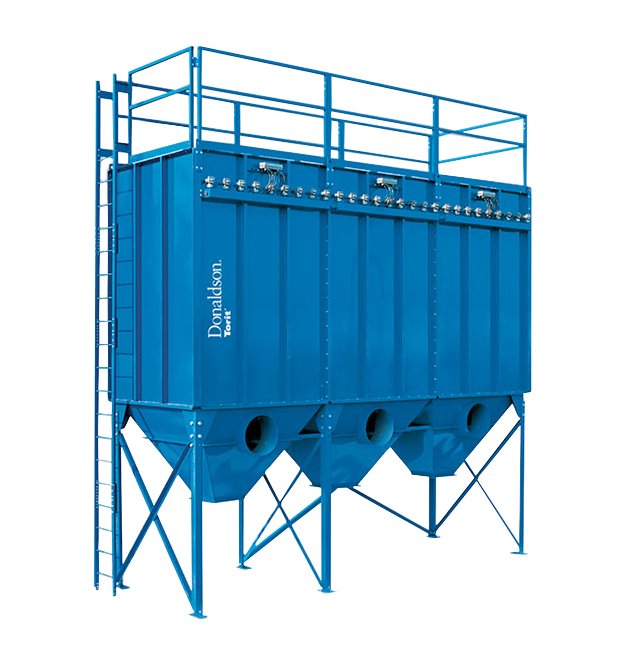

Donaldson Modular Baghouse Dust Collector MBT-3808 (3808 ft²)
Donaldson Modular Baghouse Dust Collector MBT-3808 (3808 ft²)
SKU:MOD-747dae
Efficient and reliable dust collector with Dura-Life™ bag filters, Ultra-Web® Pleated Bags. Enhances efficiency, reduces emissions.
Regular price
$34,999.00
Regular price
Sale price
$34,999.00
Unit price
per
Initiate Order
Donaldson Modular Baghouse Dust Collector MBT-3808 (3808 ft²)
$34,999.00
Quantity: 1
Claim Your Seller Account
Donaldson Modular Baghouse Dust Collector MBT-3808 (3808 ft²)
$34,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Modular Baghouse (MB) 3808 Square feet Dust Collector is a powerhouse of efficiency, featuring Dura-Life™ bag filters for longer life and reduced emissions. With 297 bags and 33 valves, it ensures continuous-duty pulse-jet operation. High body inlet models and square designs minimize costs while providing easy bag access, tool-free installation, and an integral fan option. Now also available with Ultra-Web® Spunbond Pleated Bags for enhanced dust capture and reduced emissions. Designed with advanced valves and computer-optimized components, this baghouse delivers unparalleled value, efficiency, and ease of maintenance.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

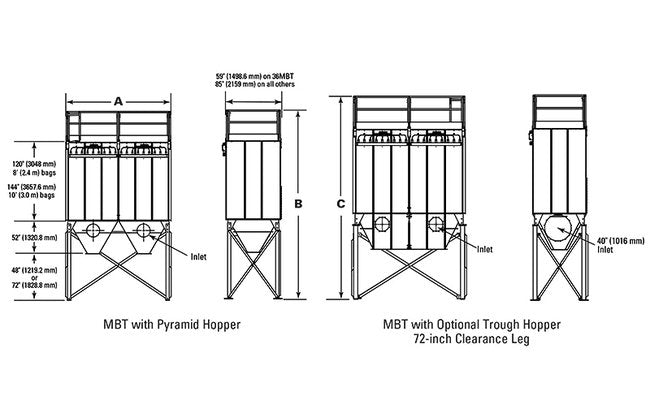

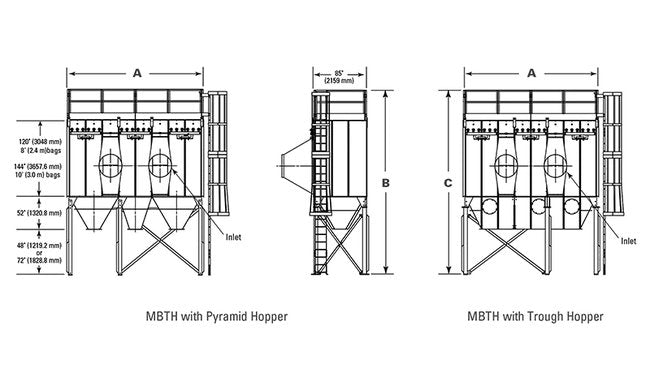

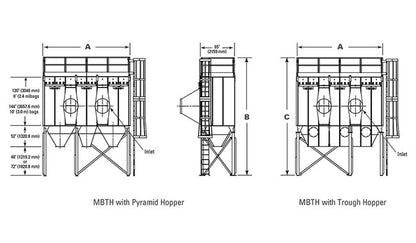

Dimensions Dimension A Mbtmbw
371.0 in | 9423.4 mm
Dimensions Dimension B Mbt 48 In
268.3 in | 6814.8 mm
Dimensions Dimension B Mbt 72 In
292.3 in | 7424.4 mm
Dimensions Dimension C Mbt
292.3 in | 7424.4 mm
Dimensions Dimension D Mbt 48 In
294.1 in | 7470.1 mm
Dimensions Dimension D Mbt 72 In
318.1 in | 8079.7 mm
Dimensions Dimension E Mbw
318.1 in | 8079.7 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
3808 ft² | 353.8 m²
Specifications Number Of Bags
297
Specifications Number Of Valves
33
Specifications Plated Bag Media Area 20 Inch In Uw
3505 ft² | 325.6 m²
Specifications Plated Bag Media Area 40 Inch In Uw
7009 ft² | 651.2 m²
Specifications Plated Bag Media Area 60 Inch In Uw
10514 ft² | 976.8 m²
Specifications Plated Bag Media Area 80 Inch In Uw
14048 ft² | 1305.1 m²
Specifications Shipping Weight
20173 lb | 9150.3 kg
Specifications Warranty
10 years
