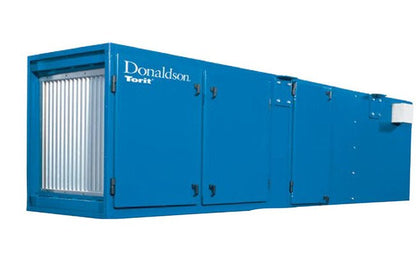

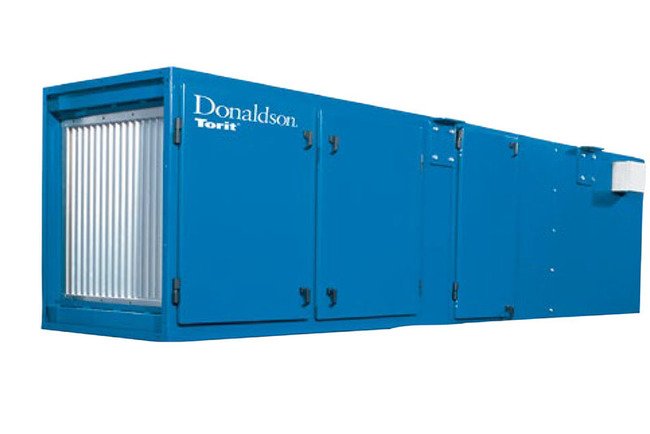

Donaldson Modular Mediafilter™ Horizontal Series Ambient Mist Collector - 1400 CFM
Donaldson Modular Mediafilter™ Horizontal Series Ambient Mist Collector - 1400 CFM
SKU:MOD-d7798d
Get clean air and boost productivity with the Donaldson 1400 CFM Mist Collector. Easy maintenance & OSHA compliant.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Donaldson Modular Mediafilter™ Horizontal Series Ambient Mist Collector - 1400 CFM
$2,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Modular Mediafilter™ Horizontal Series Ambient Mist Collector - 1400 CFM
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Modular Mediafilter™ Horizontal Series 1400 CFM Ambient Mist Collector is a high-performance air filtration solution designed for industrial environments. This collector features a horizontal design for space-saving benefits and easy maintenance. With a multi-stage filtration system and various equipment options available, it ensures a cleaner work environment, in compliance with OSHA Clean Air Standards. Trust in genuine Donaldson Torit replacement filters and parts to optimize the performance of your air filtration system.
Product Specifications
Additional Information
Ceiling mount, horizontal design saves valuable floor spaceDesign features provide easy filter change out and simple maintenanceAvailable in ambient or source capture modelsProvides a cleaner work environment for maximum productivityHelps support OSHA Clean Air Standards

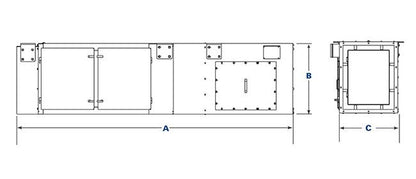

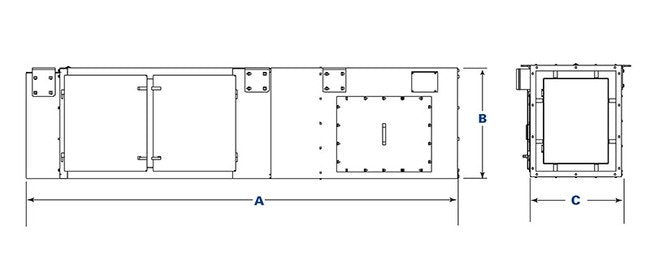

Dimensions Dimension A
108.4 in | 2753.4 mm
Dimensions Dimension B
32.3 in | 820.4 mm
Dimensions Dimension C
29.5 in | 749.3 mm
Equipment Options
First-stage high efficiency filter, 24 x 24 x 4 inches (609.6 x 609.6 x 101.6 millimeters)First-stage multi-vee filter, 24 x 24 x 4 inches (609.6 x 609.6 x 101.6 millimeters)HEPA/95% DOP filter module, 24 x 24 x 11.5 inches (609.6 x 609.6 x 292.1 millimeters)Carbon filter moduleMultiple power pack options, including explosion-proof motorsP-Trap assemblyP-Trap with Y-Strainer assembly1-Gallon (3.8-Liter) container
Note
Significantly improve the performance of your collector with genuine Donaldson Torit replacement filters and parts.All Rights Reserved. All products, product specifications, and data (airflow, capacity, dimensions, or availability) are subject to change without notice, and may vary by region or country. Donaldson Torit is a registered trademark of Donaldson Company, Inc. Contains Donaldson proprietary technology.
Specifications 1st Stage Filter
4" (101.6 mm) Multi-Vee
Specifications 2nd Stage Filter
Vee-Bag 126 sq. ft. (11.7 m²)
Specifications Collector Type
Ambient
Specifications Nominal Airflow
1400 ft³/min | 2378 m³/h
Specifications Shipping Weight
525 lb | 238.1 kg
