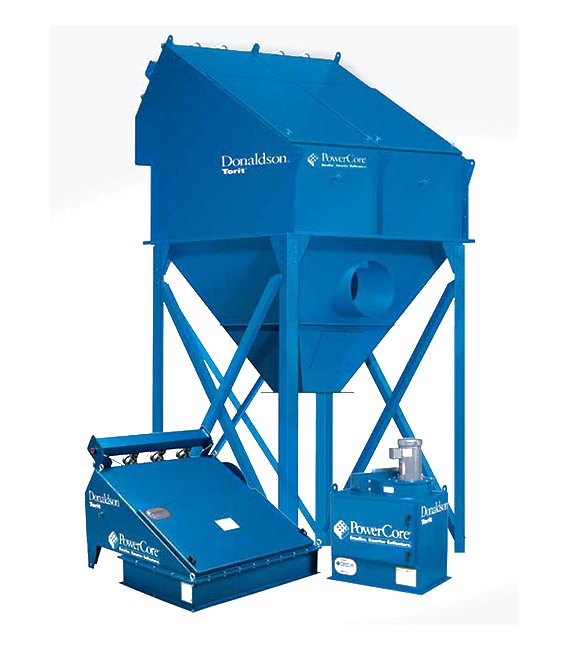

Donaldson Torit® PowerCore® CP Series 258.0 Inch Dust Collector
Donaldson Torit® PowerCore® CP Series 258.0 Inch Dust Collector
SKU:TOR-bce07f
Donaldson Torit® PowerCore® CP 258.0 Inch Dust Collector: Superior filtration in a compact design for industrial applications.
Regular price
$12,500.00
Regular price
Sale price
$12,500.00
Unit price
per
Initiate Order
Donaldson Torit® PowerCore® CP Series 258.0 Inch Dust Collector
$12,500.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit® PowerCore® CP Series 258.0 Inch Dust Collector
$12,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance air quality with the Donaldson Torit® PowerCore® CP Series 258.0 Inch Dust Collector. Featuring innovative PowerCore® filter packs with Ultra-Web® nanofiber technology, this compact unit delivers superior filtration efficiency and a smaller footprint. With a nominal airflow of 16800 to 33000 ft³/min, 48 filter packs, and a PowerCore® Filter Area of 3024 ft², it ensures high-performance dust collection. Suitable for industrial applications, the PowerCore® CP Series meets stringent quality standards for reliable and efficient operations.
Product Specifications
Dimensions Dimension A
258.0 in | 6553.2 mm
Dimensions Dimension B
169.2 in | 4297.7 mm
Dimensions Dimension C
85.0 in | 2159.0 mm
Dimensions Note For Dimension B
For opening access door, allow a minimum of 2.5" (63.5 mm) above unit for models 3, 4, and a minimum of 20.5" (520.7 mm) for models 6, 8, 12, 16, 24, 32, 40, 48.
Dimensions Note For Dimension C
Standard hoppers.
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 At Grade
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss At Grade
1.5 g
Operating Conditions Wind Load Rating
90 mph | 145 km/h
Specifications Housing Rating
-20 inwg
Specifications Nominal Airflow
16800 to 33000 ft³/min | 28537 to 56055 m³/h
Specifications Number Of Filter Packs
48
Specifications Number Of Valves
48
Specifications Powercore Filter Area
3024 ft² | 280.9 m²
Specifications Shipping Weight
7760 lb | 3519.9 kg
