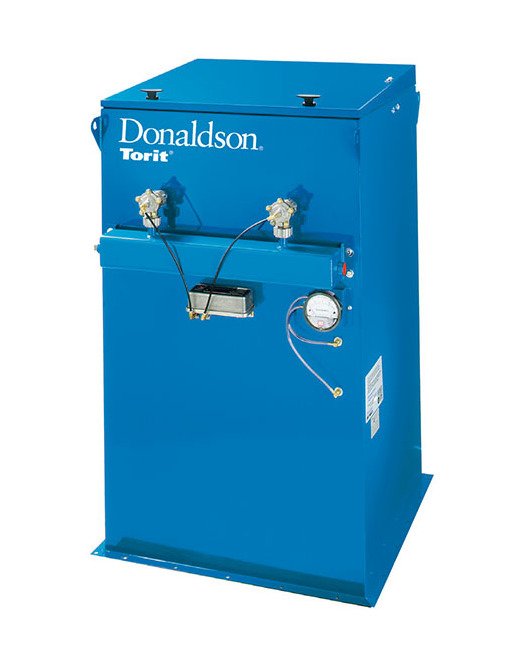

Donaldson Torit Bin Vent 2 Cartridges Dust Collector
Donaldson Torit Bin Vent 2 Cartridges Dust Collector
SKU:BIN-fd739f
Donaldson's advanced Bin Vent Dust Collector ensures efficient dust recovery with Ultra-Web filters, perfect for silos and storage bins.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
Donaldson Torit Bin Vent 2 Cartridges Dust Collector
$2,399.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit Bin Vent 2 Cartridges Dust Collector
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit Bin Vent 2 Cartridges Dust Collector is a cutting-edge solution designed to add economic value by efficiently recovering valuable dust. Featuring advanced cartridge filtration technology with Ultra-Web filters, this compact unit is ideal for applications involving silos, storage bins, or conveyor transfer points. With a low-profile design available as plenum-mounted or insertable cabinets, installation is hassle-free and cost-effective. Enjoy higher filtration efficiency, longer filter life, and easy maintenance with this innovative dust collector that eliminates the need for ductwork, meeting the highest industry standards for performance and durability.
Product Specifications
Additional Information
MERV (The Minimum Efficiency Reporting Value (MERV) of this filter cartridge has been determined through independent laboratory testing using ASHRAE 52.2 (2007) test standards. The MERV rating was determined at a face velocity of 118 feet (36.0 meters) per minute and loading up to four inches (101.6 millimeters) water gauge. Actual efficiency of any filter cartridge will vary according to the specific application parameters. Dust concentration, airflow, particle characteristics, and pulse cleaning methods all affect filtration efficiency.) 15 filtration efficiency per ASHRAE 52.2-2007Choice of filter cartridges provide high filtration efficiency for a wide variety of applicationsDesigned for easy filter service and maintenance-no tools required.Easy filter removal and replacement from clean air side makes it unnecessary to enter the silo or storage containerContinuous-duty, on-demand pulse cleaning provides uninterrupted service and keeps filters clean for a long time
Available Options
Insertable or plenum styleCartridgesUltra-Web® FRUltra-Tek®Fibra-Web® & Fibra-Web FRTorit-Tex™Weatherhood1, 2, 3, and 5 hp fansDampersChamber silencersPhotohelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugeNEMA 9 enclosureHostile environment coating

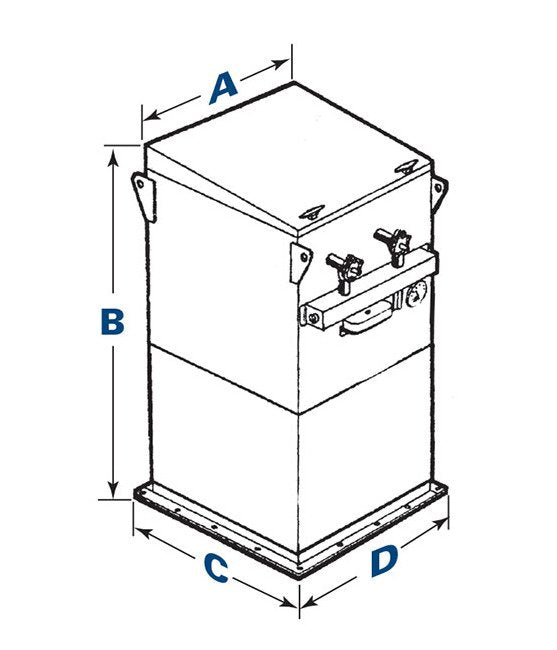

Specifications Dimension A
34.6 in | 878.8 mm
Specifications Dimension C
24.2 in | 614.7 mm
Specifications Dimension D
37.5 in | 952.5 mm
Specifications Fibra Web Ultra Trek Filter Area
220 ft² | 20.4 m²
Specifications Industry Standards
National Electrical Manufacturers Association (NEMA 4) | National Electrical Manufacturers Association (NEMA 9)

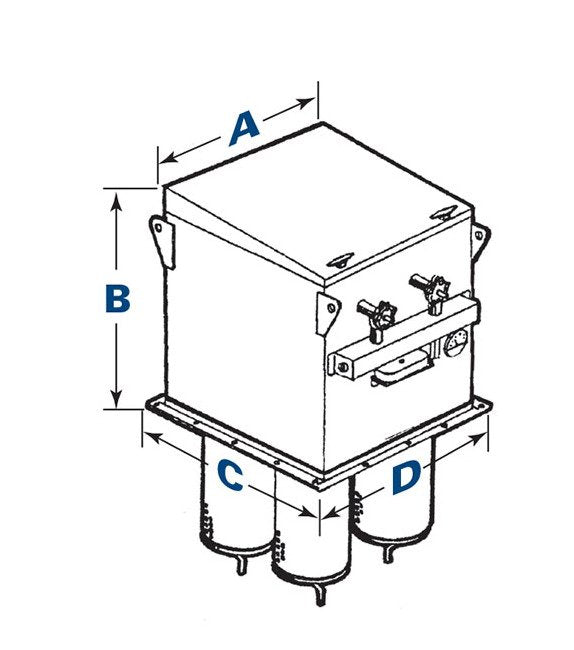

Specifications Insertable Dimension B
33.1 in | 840.7 mm
Specifications Insertable Shipping Weight
377 lb | 171.0 kg
Specifications Number Of Cartridges
2
Specifications Number Of Valves
2
Specifications Plenum Dimension B
53.6 in | 1361.4 mm
Specifications Plenum Shipping Weight
441 lb | 200.0 kg
Specifications Torit Tex Filter Area
100 ft² | 9.3 m²
Specifications Ultra Web Filter Area
452 ft² | 42.0 m²
Specifications Warranty
10 years
Standard Features
Ultra-Web® cartridgeMagnehelic®(Registered trademarks of Dwyer Instruments, Inc.) gaugeNEMA 4 enclosure
