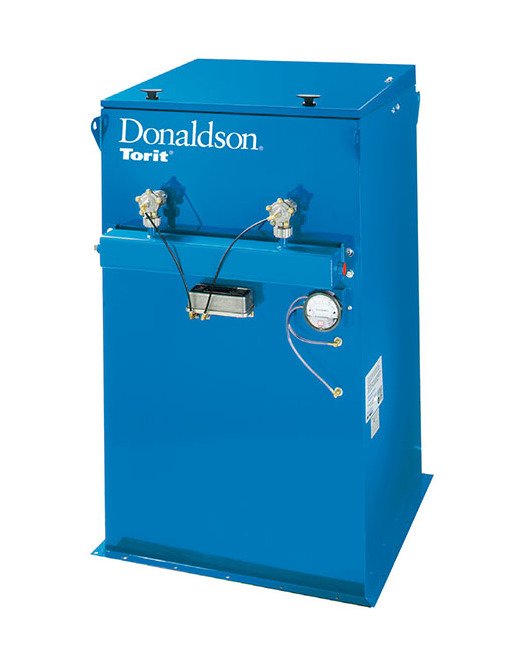

Donaldson Torit Bin Vent 4 Cartridges Dust Collector
Donaldson Torit Bin Vent 4 Cartridges Dust Collector
SKU:BIN-9bf93c
Efficiently recover valuable dust with the Donaldson Torit Bin Vent Dust Collector featuring Ultra-Web filters and on-demand pulse cleaning system for extended filter life.
Regular price
$4,799.99
Regular price
Sale price
$4,799.99
Unit price
per
Initiate Order
Donaldson Torit Bin Vent 4 Cartridges Dust Collector
$4,799.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit Bin Vent 4 Cartridges Dust Collector
$4,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit Bin Vent 4 Cartridges Dust Collector is a premium filtration solution designed to add economic value and recover valuable dust efficiently. Featuring cartridge filtration technology with Ultra-Web filters, this compact unit is ideal for silos, storage bins, or conveyor transfer points. With a low-profile design, easy installation, and reduced ductwork expenses, it offers higher filtration efficiency and extended filter life. Enjoy the benefits of reliable and continuous service with the on-demand pulse cleaning system, ensuring clean filters for an extended period. Designed for easy maintenance and with a 10-year warranty, this dust collector is a durable and cost-effective solution for industrial applications.
Product Specifications
Additional Information
MERV (The Minimum Efficiency Reporting Value (MERV) of this filter cartridge has been determined through independent laboratory testing using ASHRAE 52.2 (2007) test standards. The MERV rating was determined at a face velocity of 118 feet (36.0 meters) per minute and loading up to four inches (101.6 millimeters) water gauge. Actual efficiency of any filter cartridge will vary according to the specific application parameters. Dust concentration, airflow, particle characteristics, and pulse cleaning methods all affect filtration efficiency.) 15 filtration efficiency per ASHRAE 52.2-2007Choice of filter cartridges provide high filtration efficiency for a wide variety of applicationsDesigned for easy filter service and maintenance-no tools required.Easy filter removal and replacement from clean air side makes it unnecessary to enter the silo or storage containerContinuous-duty, on-demand pulse cleaning provides uninterrupted service and keeps filters clean for a long time
Available Options
Insertable or plenum styleCartridgesUltra-Web® FRUltra-Tek®Fibra-Web® & Fibra-Web FRTorit-Tex™Weatherhood1, 2, 3, and 5 hp fansDampersChamber silencersPhotohelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugeNEMA 9 enclosureHostile environment coating

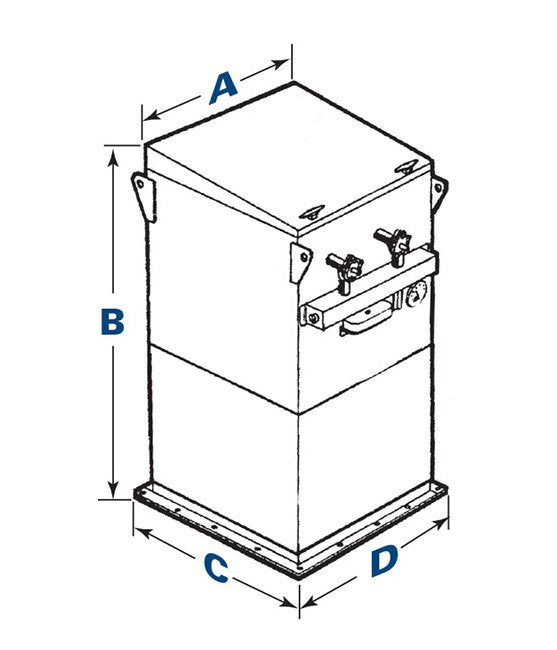

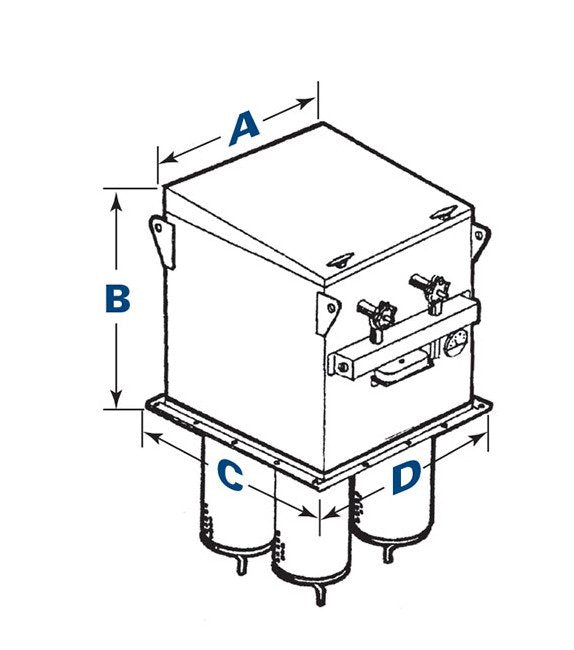

Specifications Dimension A
34.6 in | 878.8 mm
Specifications Dimension C
35.4 in | 899.2 mm
Specifications Dimension D
37.5 in | 952.5 mm
Specifications Fibra Web Ultra Trek Filter Area
440 ft² | 40.9 m²
Specifications Industry Standards
National Electrical Manufacturers Association (NEMA 4) | National Electrical Manufacturers Association (NEMA 9)
Specifications Insertable Dimension B
34.1 in | 866.1 mm
Specifications Insertable Shipping Weight
627 lb | 284.4 kg
Specifications Number Of Cartridges
4
Specifications Number Of Valves
2
Specifications Plenum Dimension B
54.6 in | 1386.8 mm
Specifications Plenum Shipping Weight
702 lb | 318.4 kg
Specifications Torit Tex Filter Area
200 ft² | 18.6 m²
Specifications Ultra Web Filter Area
904 ft² | 84.0 m²
Specifications Warranty
10 years
Standard Features
Ultra-Web® cartridgeMagnehelic®(Registered trademarks of Dwyer Instruments, Inc.) gaugeNEMA 4 enclosure
