Donaldson Torit Bin Vent 6-Cartridge Dust Collector
Donaldson Torit Bin Vent 6-Cartridge Dust Collector
SKU:BIN-67ab61
Enhance dust filtration efficiency with Donaldson Torit Bin Vent 6-Cartridge Dust Collector. Compact design, high longevity, and easy maintenance for industrial applications.
Regular price
$4,899.99
Regular price
Sale price
$4,899.99
Unit price
per
Initiate Order
Donaldson Torit Bin Vent 6-Cartridge Dust Collector
$4,899.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit Bin Vent 6-Cartridge Dust Collector
$4,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

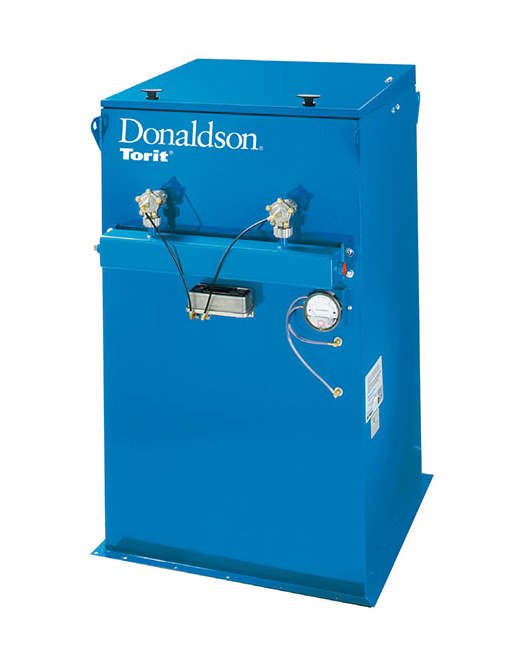

The Donaldson Torit Bin Vent 6-Cartridge Dust Collector is a powerful solution for industrial applications requiring efficient dust filtration. Featuring state-of-the-art Ultra-Web® nanofiber technology, this dust collector provides high filtration efficiency and extended filter life. With a compact design suitable for silos, storage bins, or conveyor transfer points, it eliminates the need for ductwork, reducing installation costs. The unit comes with 10 years warranty, Magnehelic® gauge, and NEMA 4 enclosure. Easy to install and maintain, it ensures uninterrupted service with continuous-duty pulse cleaning.
Product Specifications
Additional Information
MERV (The Minimum Efficiency Reporting Value (MERV) of this filter cartridge has been determined through independent laboratory testing using ASHRAE 52.2 (2007) test standards. The MERV rating was determined at a face velocity of 118 feet (36.0 meters) per minute and loading up to four inches (101.6 millimeters) water gauge. Actual efficiency of any filter cartridge will vary according to the specific application parameters. Dust concentration, airflow, particle characteristics, and pulse cleaning methods all affect filtration efficiency.) 15 filtration efficiency per ASHRAE 52.2-2007Choice of filter cartridges provide high filtration efficiency for a wide variety of applicationsDesigned for easy filter service and maintenance-no tools required.Easy filter removal and replacement from clean air side makes it unnecessary to enter the silo or storage containerContinuous-duty, on-demand pulse cleaning provides uninterrupted service and keeps filters clean for a long time
Available Options
Insertable or plenum styleCartridgesUltra-Web® FRUltra-Tek®Fibra-Web® & Fibra-Web FRTorit-Tex™Weatherhood1, 2, 3, and 5 hp fansDampersChamber silencersPhotohelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugeNEMA 9 enclosureHostile environment coating

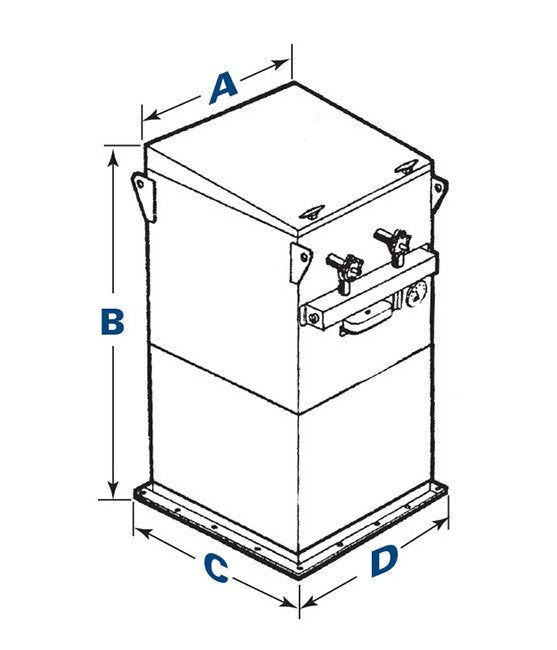

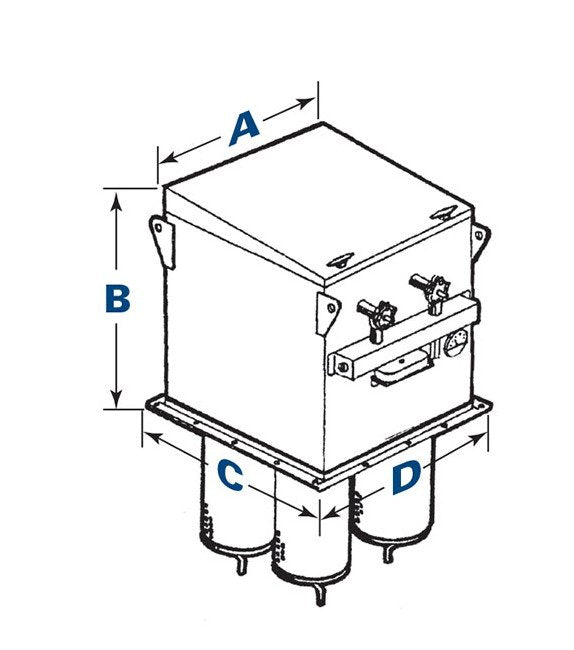

Specifications Dimension A
51.9 in | 1318.3 mm
Specifications Dimension C
35.4 in | 899.2 mm
Specifications Dimension D
54.7 in | 1389.4 mm
Specifications Fibra Web Ultra Trek Filter Area
660 ft² | 61.3 m²
Specifications Industry Standards
National Electrical Manufacturers Association (NEMA 4) | National Electrical Manufacturers Association (NEMA 9)
Specifications Insertable Dimension B
34.1 in | 866.1 mm
Specifications Insertable Shipping Weight
702 lb | 318.4 kg
Specifications Number Of Cartridges
6
Specifications Number Of Valves
3
Specifications Plenum Dimension B
54.6 in | 1386.8 mm
Specifications Plenum Shipping Weight
792 lb | 359.2 kg
Specifications Torit Tex Filter Area
300 ft² | 27.9 m²
Specifications Ultra Web Filter Area
1356 ft² | 126.0 m²
Specifications Warranty
10 years
Standard Features
Ultra-Web® cartridgeMagnehelic®(Registered trademarks of Dwyer Instruments, Inc.) gaugeNEMA 4 enclosure
