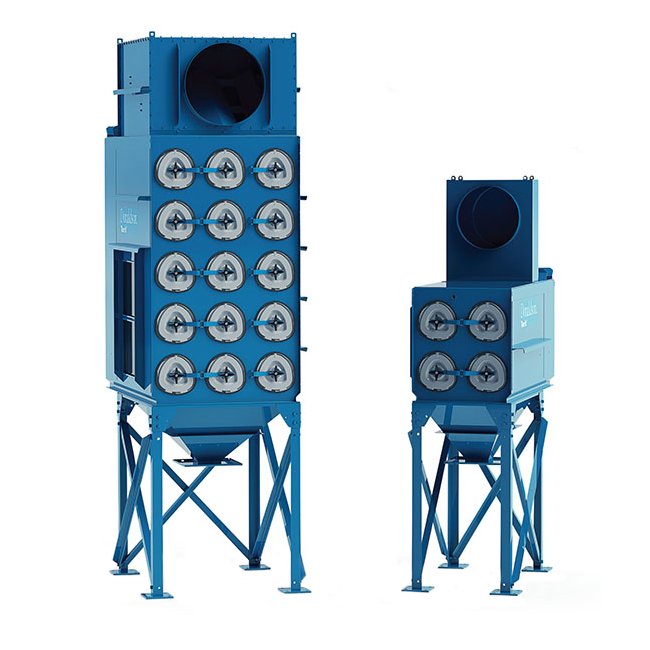

Donaldson Torit Downflo® Evolution 72 Dust Collector - 140in
Donaldson Torit Downflo® Evolution 72 Dust Collector - 140in
SKU:DOW-68b91d
Revolutionize dust collection with Donaldson Torit Downflo® Evolution 72 - superior performance, reduced costs, and efficiency.
Regular price
$13,800.00
Regular price
Sale price
$13,800.00
Unit price
per
Initiate Order
Donaldson Torit Downflo® Evolution 72 Dust Collector - 140in
$13,800.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit Downflo® Evolution 72 Dust Collector - 140in
$13,800.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet the Donaldson Torit Downflo® Evolution 72 Dust Collector with a significant reduction in size and filter requirements, making it ideal for industrial settings. With Ultra-Web® nanofiber filtration technology, this best-in-class dust collector assures optimal performance, lower operational costs, and maximized floor space efficiency. Its innovative design complies with various institutional procurement standards, ensuring exceptional quality and functionality.
Product Specifications
Additional Information
A smaller collector helps lower the initial purchase price, reduces filter replacement costs, and opens up valuable manufacturing floor space.This state of the art collector, coupled with Donaldson®'s industry-leading Ultra-Web® nanofiber filtration technology, is truly an intelligent design.
Applications
Dry Bulk | Food Processing | Glass | Metal Grinding | Metal Manufacturing | Pharmaceutical | Plasma Cutting | Thermal Spray | Welding
Dimensions Dimension A
140 in | 3556 mm
Dimensions Dimension B
248.0 in | 6299.0 mm
Dimensions Dimension C
101 in | 2565 mm
Dimensions Dimension D
24.0 in | 36.0 in | 42.0 in | 48.0 in | 610 mm | 915 mm | 1067 mm | 1219 mm
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Basic Wind Speed And Exposure C Per Interna
90 mph | 145 km/h
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Housing Construction Material
Steel
Operating Conditions Housing Construction Material Thickness
3/16 in. (4.8 mm) to 10 Gauge
Operating Conditions Housing Rating
-25 to 10 inH2O | -635 to 254 mmH2O
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Specifications Approximate Shipping Weight
11600 lb | 5262 kg
Specifications Inlet Size For 24 Inch In Dimension D
10 to 16 in
Specifications Inlet Size For 36 Inch In Dimension D
17 to 24 in
Specifications Inlet Size For 42 Inch In Dimension D
26 in | 28 in | 30 in | 32 in
Specifications Inlet Size For 48 Inch In Dimension D
34 in | 36 in | 38 in | 40 in | 42 in
Specifications Number Of Filters
72
Specifications Number Of Valves
36
Specifications Ultra Web Filter Area
18288 ft² | 1699 m²
