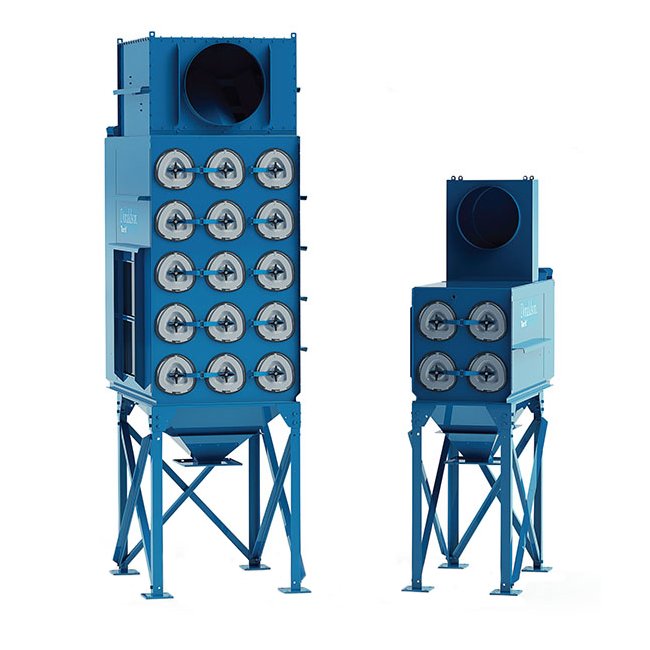

Donaldson Torit Downflo Evolution 40 Dust Collector
Donaldson Torit Downflo Evolution 40 Dust Collector
SKU:DOW-fc75dd
Enhance efficiency with the Donaldson Torit Downflo Evolution 40 Dust Collector - the epitome of space-saving filtration excellence.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Donaldson Torit Downflo Evolution 40 Dust Collector
$8,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit Downflo Evolution 40 Dust Collector
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your facility with the Donaldson Torit Downflo Evolution 40 Dust Collector, featuring an innovative design that reduces filter requirements by up to 40%. With a vast Ultra-Web® filtration area of 10160 ft², this collector excels in various applications including metal manufacturing, welding, and pharmaceutical industries. Operating under severe conditions per IBC 2009 standards, this collector offers exceptional performance and space-saving efficiency.
Product Specifications
Additional Information
A smaller collector helps lower the initial purchase price, reduces filter replacement costs, and opens up valuable manufacturing floor space.This state of the art collector, coupled with Donaldson®'s industry-leading Ultra-Web® nanofiber filtration technology, is truly an intelligent design.
Applications
Dry Bulk | Food Processing | Glass | Metal Grinding | Metal Manufacturing | Pharmaceutical | Plasma Cutting | Thermal Spray | Welding
Dimensions Dimension A
180.0 in | 4572.0 mm
Dimensions Dimension B
88 in | 2235.0 mm
Dimensions Dimension C
101 in | 2565 mm
Dimensions Dimension D
24.0 in | 36.0 in | 42.0 in | 48.0 in | 610 mm | 915 mm | 1067 mm | 1219 mm
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Basic Wind Speed And Exposure C Per Interna
90 mph | 145 km/h
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Housing Construction Material
Steel
Operating Conditions Housing Construction Material Thickness
3/16 in. (4.8 mm) to 10 Gauge
Operating Conditions Housing Rating
-25 to 10 inH2O | -635 to 254 mmH2O
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Specifications Approximate Shipping Weight
6200 lb | 2812 kg
Specifications Inlet Size For 24 Inch In Dimension D
10 to 16 in
Specifications Inlet Size For 36 Inch In Dimension D
17 to 24 in
Specifications Inlet Size For 42 Inch In Dimension D
26 in | 28 in | 30 in | 32 in
Specifications Inlet Size For 48 Inch In Dimension D
34 in | 36 in | 38 in | 40 in | 42 in
Specifications Number Of Filters
40
Specifications Number Of Valves
20
Specifications Ultra Web Filter Area
10160 ft² | 943.9 m²
