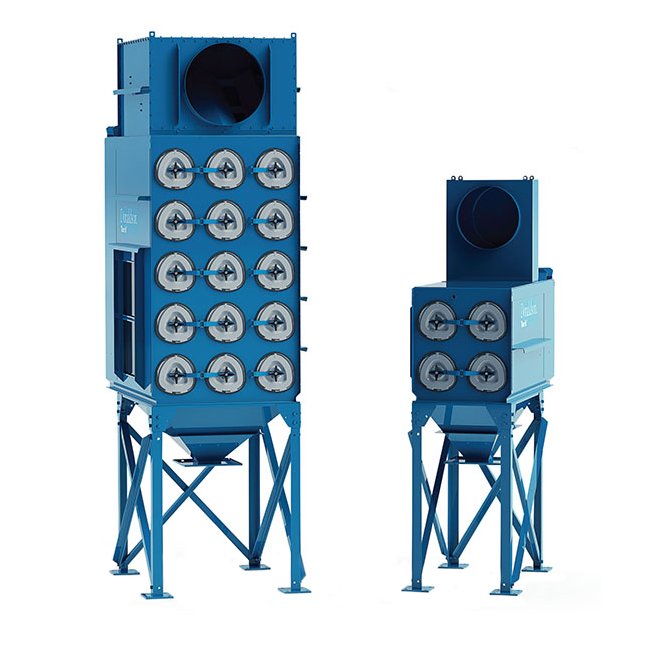

Donaldson Torit Downflo Evolution 48 Dust Collector - 140 in Dimension A
Donaldson Torit Downflo Evolution 48 Dust Collector - 140 in Dimension A
SKU:DOW-3738e7
Top-of-the-line Donaldson® Torit® Downflo® Evolution dust collector with 48 filters, leading efficiency & cost savings.
Regular price
$10,999.00
Regular price
Sale price
$10,999.00
Unit price
per
Initiate Order
Donaldson Torit Downflo Evolution 48 Dust Collector - 140 in Dimension A
$10,999.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit Downflo Evolution 48 Dust Collector - 140 in Dimension A
$10,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® Downflo® Evolution 48 Dust Collector sets a new standard in industrial air filtration. With 48 high-performance Ultra-Web® filters reducing by up to 40% the equipment size and filter requirements compared to conventional models, this best-in-class collector optimizes performance and efficiency. Designed for dry bulk, food processing, metalworking, pharmaceutical, and more, it features robust construction, seismic resilience, and advanced filtration technology for cost savings and enhanced indoor air quality. Meet demands with the next evolution in dust collection.
Product Specifications
Additional Information
A smaller collector helps lower the initial purchase price, reduces filter replacement costs, and opens up valuable manufacturing floor space.This state of the art collector, coupled with Donaldson®'s industry-leading Ultra-Web® nanofiber filtration technology, is truly an intelligent design.
Applications
Dry Bulk | Food Processing | Glass | Metal Grinding | Metal Manufacturing | Pharmaceutical | Plasma Cutting | Thermal Spray | Welding
Dimensions Dimension A
140 in | 3556 mm
Dimensions Dimension B
168 in | 4267.0 mm
Dimensions Dimension C
101 in | 2565 mm
Dimensions Dimension D
24.0 in | 36.0 in | 42.0 in | 48.0 in | 610 mm | 915 mm | 1067 mm | 1219 mm
Operating Conditions Alternating Current Ac Control Voltage
120 V
Operating Conditions Basic Wind Speed And Exposure C Per Interna
90 mph | 145 km/h
Operating Conditions Compressed Air Required
90 to 100 psi | 6.2 to 6.9 bar
Operating Conditions Direct Current Dc Control Voltage
24 V
Operating Conditions Housing Construction Material
Steel
Operating Conditions Housing Construction Material Thickness
3/16 in. (4.8 mm) to 10 Gauge
Operating Conditions Housing Rating
-25 to 10 inH2O | -635 to 254 mmH2O
Operating Conditions Operating Temperature
150 ºF | 66 ºC
Operating Conditions Seismic Spectral Acceleration S1 Per Intern
0.6 g
Operating Conditions Seismic Spectral Acceleration Ss Per Intern
1.5 g
Specifications Approximate Shipping Weight
8200 lb | 3719 kg
Specifications Inlet Size For 24 Inch In Dimension D
10 to 16 in
Specifications Inlet Size For 36 Inch In Dimension D
17 to 24 in
Specifications Inlet Size For 42 Inch In Dimension D
26 in | 28 in | 30 in | 32 in
Specifications Inlet Size For 48 Inch In Dimension D
34 in | 36 in | 38 in | 40 in | 42 in
Specifications Number Of Filters
48
Specifications Number Of Valves
24
Specifications Ultra Web Filter Area
12192 ft² | 1132.7 m²
