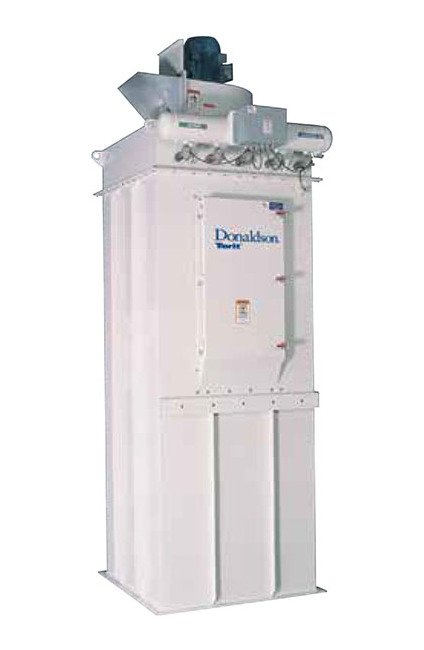

The Donaldson Torit FS Pulse Jet Bin Ventilator offers cost-effective solutions for dust collection and bin venting needs. Featuring a range of 501 to 1169 cubic feet per minute nominal airflow, this ventilator ensures efficient air filtration. With a cloth area of 167 ft² and dimensions designed for low headroom applications, it boasts durable all-welded construction for air/water integrity. The integrable fan option of up to 75 hp reduces space requirements, and its unique cleaning system minimizes moisture and particulate issues. This ventilator is ideal for facilities requiring up to 225 bag filters, optimizing ducting and hopper outlet costs.
Product Specifications
Additional Information
Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs
Dimensions Dimension A
46 in | 1168.4 mm
Dimensions Dimension B
46 in | 1168.4 mm
Dimensions Dimension C
69.6 in | 1767.8 mm
Specifications Cloth Area
167 ft² | 15.5 m²
Specifications Length Of Bag Filters
4 ft | 1.2 m
Specifications Nominal Airflow
501 to 1169 ft³/min | 851 to 1986 m³/h
Specifications Shipping Weight
1000 lb | 453.6 kg
