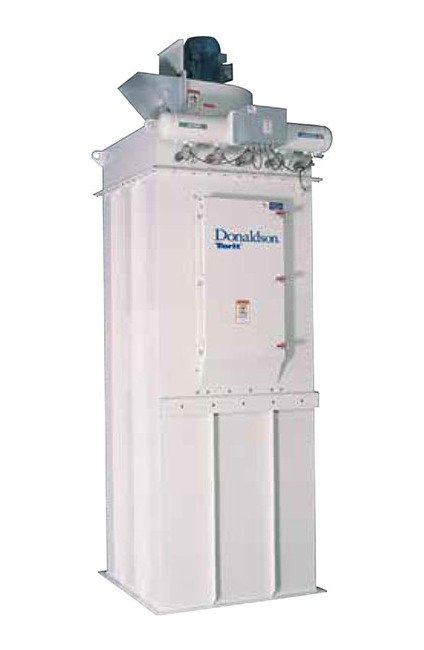

The Donaldson Torit FS Pulse Jet Bin Ventilator offers an economical dust collection and bin venting solution suitable for both consumer and institutional needs. Featuring a side bag filter removal design for low headroom applications and an all-welded construction for durability and air/water integrity. With a nominal airflow ranging from 1080 to 2520 CFM and a cloth area of 360 ft², this ventilator ensures efficient dust collection. The integrated fan option up to 75 hp reduces space requirements, while the unique cleaning system minimizes moisture and particulate issues. Designed for compliance with federal procurement standards and industry-specific certifications, this ventilator guarantees both performance and regulatory adherence.
Product Specifications
Additional Information
Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs
Dimensions Dimension A
54 in | 1371.6 mm
Dimensions Dimension B
54 in | 1371.6 mm
Dimensions Dimension C
93.6 in | 2377.4 mm
Specifications Cloth Area
360 ft² | 33.4 m²
Specifications Length Of Bag Filters
6 ft | 1.8 m
Specifications Nominal Airflow
1080 to 2520 ft³/min | 1835 to 4281 m³/h
Specifications Shipping Weight
1400 lb | 635.0 kg
