Donaldson Torit FS Pulse Jet Bin Vent - High Airflow Bin Ventilator

Name: Donaldson Torit FS Pulse Jet Bin Vent - High Airflow Bin Ventilator
Brand: Dust Collector Services, Inc.
SKU: FSP-19c15e
Price: 4999.99 USD
Availability: OutOfStock

SKU:FSP-19c15e

Efficient Donaldson Torit FS Pulse Jet Bin Vent for dust collection & bin venting applications, with high airflow & durable construction.

$4,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

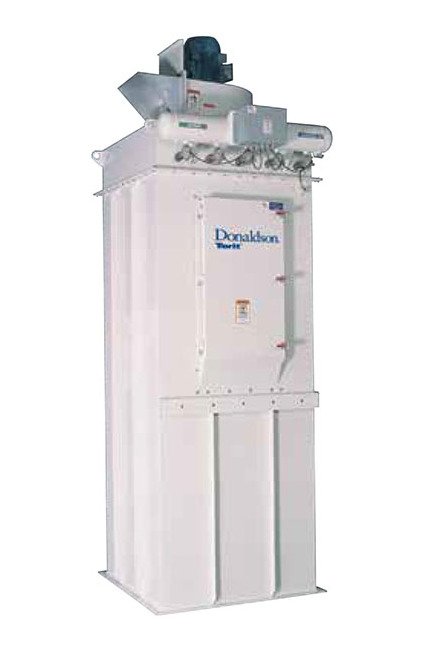

The Donaldson Torit FS Pulse Jet Bin Ventilator is a cost-effective solution designed for dust collection and bin venting applications. Featuring side bag filter removal for easy maintenance and installation in low headroom settings, this ventilator boasts all-welded construction ensuring durability and air/water integrity. With a nominal airflow range of 1470 to 3430 ft³/min and a cloth area of 490 ft², this ventilator delivers efficient performance for industrial environments. The integral fan option up to 75 hp reduces space requirements, while the unique cleaning system minimizes moisture and particulate issues in pulse valves.

Product Specifications

Additional Information

Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs

Dimensions Dimension A

62 in | 1574.8 mm

Dimensions Dimension B

62 in | 1574.8 mm

Dimensions Dimension C

94.1 in | 2390.1 mm

Specifications Cloth Area

490 ft² | 45.5 m²

Specifications Length Of Bag Filters

6 ft | 1.8 m

Specifications Nominal Airflow

1470 to 3430 ft³/min | 2497 to 5826 m³/h

Specifications Shipping Weight

1800 lb | 816.5 kg
