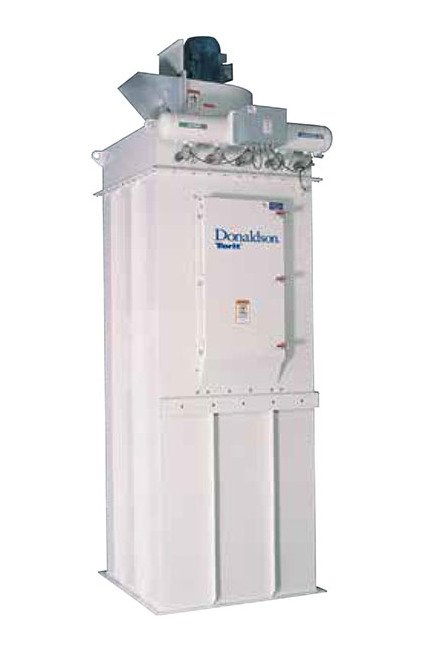

Donaldson Torit FS Pulse Jet Bin Vent - High Airflow Bin Ventilator
Donaldson Torit FS Pulse Jet Bin Vent - High Airflow Bin Ventilator
SKU:FSP-1dbd8a
Efficient Donaldson Torit FS Pulse Jet Bin Vent with high airflow for dust collection and bin venting applications.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Donaldson Torit FS Pulse Jet Bin Vent - High Airflow Bin Ventilator
$5,899.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit FS Pulse Jet Bin Vent - High Airflow Bin Ventilator
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit FS Pulse Jet Bin Vent is a top-performing solution for dust collection and bin venting applications. With a nominal airflow range of 1959 to 4571 ft³/min, this ventilator ensures efficient air filtration. Its all-welded construction guarantees durability and air/water integrity, making it suitable for industrial environments. The integral fan option of up to 75 hp reduces space requirements, while the unique cleaning system minimizes moisture and particulate issues, ensuring optimal performance. Designed for ease of installation in low headroom spaces, this bin vent requires minimal maintenance, providing cost-effective and reliable air filtration solutions for a range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs
Dimensions Dimension A
62 in | 1574.8 mm
Dimensions Dimension B
62 in | 1574.8 mm
Dimensions Dimension C
118.1 in | 2999.7 mm
Specifications Cloth Area
653 ft² | 60.7 m²
Specifications Length Of Bag Filters
8 ft | 2.4 m
Specifications Nominal Airflow
1959 to 4571 ft³/min | 3328 to 7765 m³/h
Specifications Shipping Weight
2100 lb | 952.5 kg
