Donaldson Torit FS Pulse Jet Bin Ventilator

Name: Donaldson Torit FS Pulse Jet Bin Ventilator
Brand: Dust Collector Services, Inc.
SKU: FSP-159a56
Price: 5499.99 USD
Availability: OutOfStock

SKU:FSP-159a56

High-performance bin vent for dust collection with 2559-5971 ft³/min airflow & durable construction. Ideal for industrial use.

$5,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

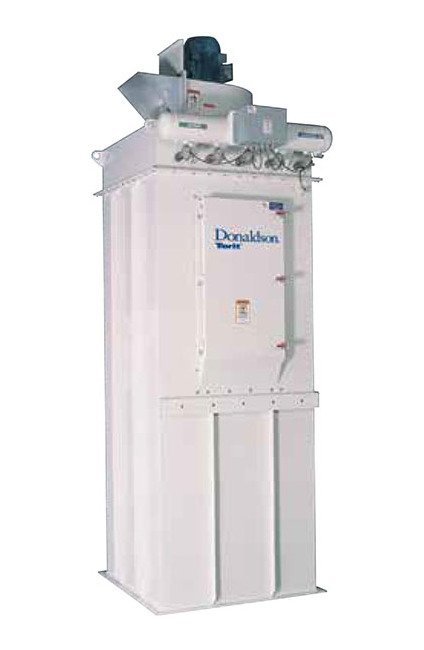

The Donaldson Torit FS Pulse Jet Bin Ventilator is a high-performance solution for dust collection and bin venting applications. With a nominal airflow ranging from 2559 to 5971 ft³/min and a cloth area of 853 ft², this ventilator delivers exceptional air filtration efficiency. The unit features all-welded construction for increased durability and air/water integrity, making it ideal for industrial settings requiring reliable ventilation systems. Its unique cleaning system minimizes moisture and particulate issues in pulse valves, ensuring optimal performance.

Product Specifications

Additional Information

Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs

Dimensions Dimension A

70 in | 1778.0 mm

Dimensions Dimension B

70 in | 1778.0 mm

Dimensions Dimension C

118.1 in | 2999.7 mm

Specifications Cloth Area

853 ft² | 79.2 m²

Specifications Length Of Bag Filters

8 ft | 2.4 m

Specifications Nominal Airflow

2559 to 5971 ft³/min | 4347 to 10143 m³/h

Specifications Shipping Weight

2500 lb | 1134.0 kg

Donaldson Torit FS Pulse Jet Bin Ventilator
