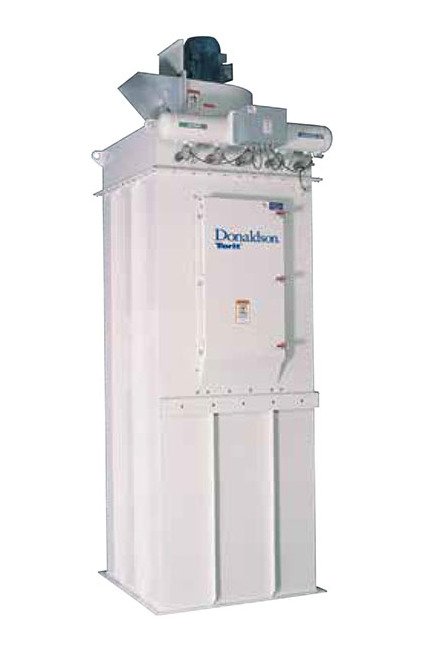

Donaldson Torit FS Pulse Jet Bin Ventilator
Donaldson Torit FS Pulse Jet Bin Ventilator
SKU:FSP-9206e4
Efficient dust collection and bin venting solution with airflow range of 1440-3360 ft³/min. Durable construction & low maintenance design.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Donaldson Torit FS Pulse Jet Bin Ventilator
$3,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit FS Pulse Jet Bin Ventilator
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit FS Pulse Jet Bin Ventilator is a cost-effective solution for dust collection and bin venting applications. With a nominal airflow range of 1440 to 3360 ft³/min, this ventilator ensures efficient air filtration. Its all-welded construction guarantees durability and air/water integrity, while the side bag filter removal feature allows for installation in low headroom spaces. Equipped with unique cleaning systems to minimize moisture and particulate issues, the ventilator is designed for optimal performance and reduced maintenance requirements, making it an ideal choice for industrial and institutional settings.
Product Specifications
Additional Information
Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs
Dimensions Dimension A
54 in | 1371.6 mm
Dimensions Dimension B
54 in | 1371.6 mm
Dimensions Dimension C
117.6 in | 2987.0 mm
Specifications Cloth Area
480 ft² | 44.6 m²
Specifications Length Of Bag Filters
8 ft | 2.4 m
Specifications Nominal Airflow
1440 to 3360 ft³/min | 2446 to 5707 m³/h
Specifications Shipping Weight
1700 lb | 771.1 kg
