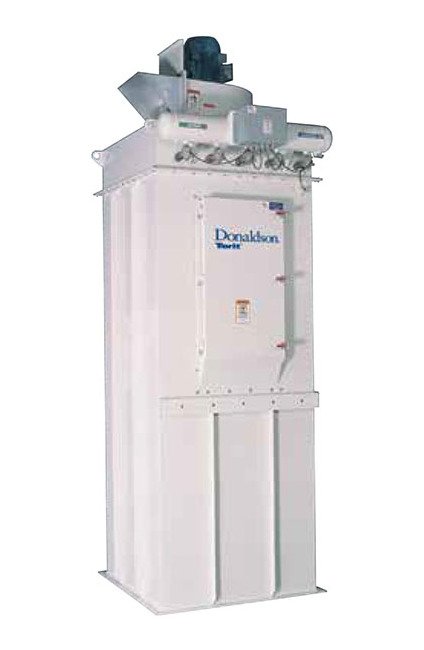

Donaldson Torit FS Pulse Jet Bin Ventilator - 180-420 ft³/min Airflow
Donaldson Torit FS Pulse Jet Bin Ventilator - 180-420 ft³/min Airflow
SKU:FSP-9cee58
Cost-effective dust collection solution with 180-420 ft³/min airflow, all-welded construction, and unique cleaning system.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Donaldson Torit FS Pulse Jet Bin Ventilator - 180-420 ft³/min Airflow
$6,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit FS Pulse Jet Bin Ventilator - 180-420 ft³/min Airflow
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit FS Pulse Jet Bin Ventilator offers cost-effective solutions for dust collection and bin venting applications. Featuring side bag filter removal for easy installation in low headroom areas, this ventilator boasts all-welded construction for enhanced durability and air/water integrity. With a nominal airflow capacity ranging from 180 to 420 ft³/min, a cloth area of 60 ft², and a length of bag filters at 4 ft, this ventilator ensures efficient filtration. The integral fan option of up to 75 hp reduces space requirements, while the unique cleaning system minimizes moisture and particulate issues in pulse valves. Ideal for institutional and government use, this ventilator meets Federal procurement standards and industry-specific certifications.
Product Specifications
Additional Information
Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs
Dimensions Dimension A
30 in | 762.0 mm
Dimensions Dimension B
30 in | 762.0 mm
Dimensions Dimension C
69.6 in | 1767.8 mm
Specifications Cloth Area
60 ft² | 5.6 m²
Specifications Length Of Bag Filters
4 ft | 1.2 m
Specifications Nominal Airflow
180 to 420 ft³/min | 306 to 713 m³/h
Specifications Shipping Weight
500 lb | 226.8 kg
