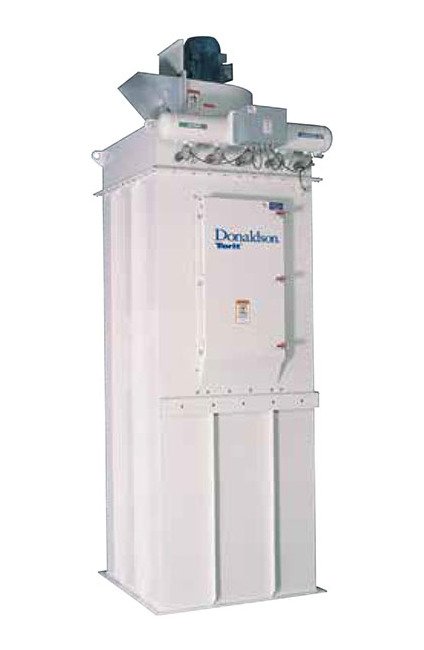

Donaldson Torit FS Pulse Jet Bin Ventilator 639-1491 ft³/min
Donaldson Torit FS Pulse Jet Bin Ventilator 639-1491 ft³/min
SKU:FSP-9bf3d6
Optimize air quality efficiently with the Donaldson Torit FS Pulse Jet Bin Ventilator - a durable, high-performance solution for dust collection and bin venting.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
Donaldson Torit FS Pulse Jet Bin Ventilator 639-1491 ft³/min
$5,499.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit FS Pulse Jet Bin Ventilator 639-1491 ft³/min
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit FS Pulse Jet Bin Ventilator is a top-tier solution for dust collection and bin venting applications, designed for efficiency and longevity. With a nominal airflow range of 639 to 1491 ft³/min and a cloth area of 213 ft², this ventilator ensures optimal performance. Its all-welded construction guarantees durability and air/water integrity, making it suitable for demanding industrial environments. Featuring an integral fan option up to 75 hp and a unique cleaning system that minimizes moisture and particulate issues, this ventilator is space-saving and efficient. With FAR compliance factors and industry-specific certifications, it meets the rigorous standards of institutional procurement.
Product Specifications
Additional Information
Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs
Dimensions Dimension A
38 in | 965.2 mm
Dimensions Dimension B
38 in | 965.2 mm
Dimensions Dimension C
117.6 in | 2987.0 mm
Specifications Cloth Area
213 ft² | 19.8 m²
Specifications Length Of Bag Filters
8 ft | 2.4 m
Specifications Nominal Airflow
639 to 1491 ft³/min | 1085 to 2533 m³/h
Specifications Shipping Weight
1100 lb | 499.0 kg
