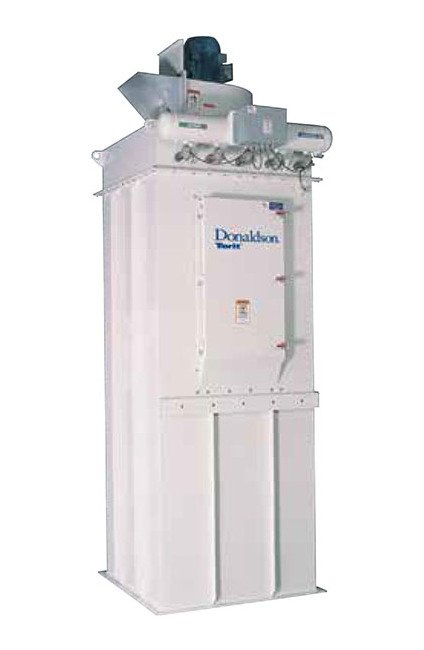

Donaldson Torit FS Pulse Jet Bin Ventilator - 981 to 2289 ft³/min

Name: Donaldson Torit FS Pulse Jet Bin Ventilator - 981 to 2289 ft³/min
Brand: Dust Collector Services, Inc.
SKU: FSP-0a87ac
Price: 5699.0 USD
Availability: OutOfStock

SKU:FSP-0a87ac

Enhance air filtration efficiency with the Donaldson Torit FS Pulse Jet Bin Ventilator, designed for dust collection and bin venting applications.

$5,699.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Donaldson Torit FS Pulse Jet Bin Ventilator offers a cost-effective solution for dust collection and bin venting applications. With a nominal airflow ranging from 981 to 2289 cubic feet per minute, this ventilator ensures efficient air filtration. Its all-welded construction enhances durability and air/water integrity, while the side bag filter removal feature enables installation in low headroom spaces. The integral fan option minimizes space requirements, and the unique cleaning system reduces moisture and particulate issues. Ideal for institutional settings requiring reliable and high-performance air filtration systems.

Product Specifications

Additional Information

Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs

Dimensions Dimension A

62 in | 1574.8 mm

Dimensions Dimension B

62 in | 1574.8 mm

Dimensions Dimension C

70.1 in | 1780.5 mm

Specifications Cloth Area

327 ft² | 30.4 m²

Specifications Length Of Bag Filters

4 ft | 1.2 m

Specifications Nominal Airflow

981 to 2289 ft³/min | 1666 to 3888 m³/h

Specifications Shipping Weight

1500 lb | 680.4 kg

Donaldson Torit FS Pulse Jet Bin Ventilator - 981 to 2289 ft³/min
