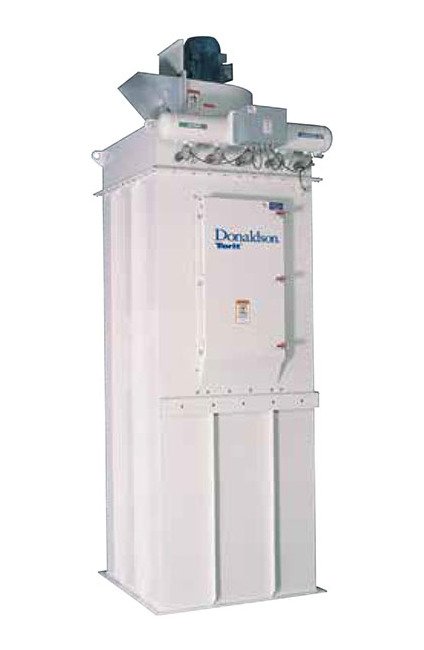

The Donaldson Torit FS Pulse Jet Bin Ventilator offers cost-effective solutions for dust collection and bin venting applications. Featuring side bag filter removal for easy installation in low headroom settings, this ventilator boasts all-welded construction for enhanced durability and air/water integrity. With a nominal airflow range of 999 to 2331 cubic feet per minute and a cloth area of 333 square feet, this unit ensures efficient filtration. The integral fan option up to 75 hp reduces space requirements, while the unique cleaning system minimizes moisture and particulate issues. Ideal for collectors with up to 225 bag filters, this ventilator streamlines installation and operation, leading to cost savings.
Product Specifications
Additional Information
Integral fan option up to 75 hp helps to reduce space requirementsUnique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs

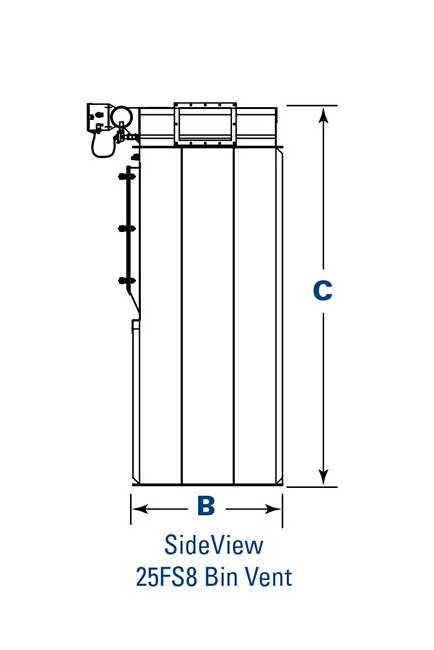

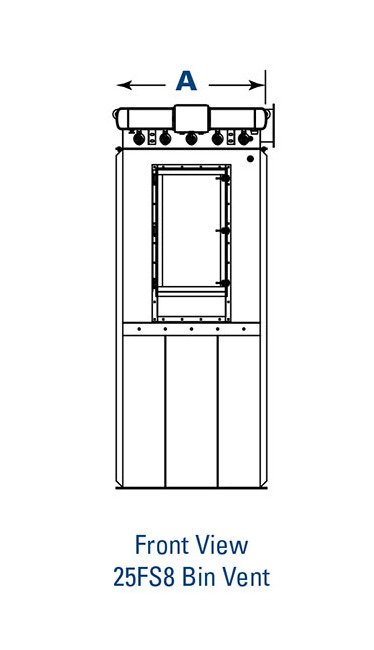

Dimensions Dimension A
46 in | 1168.4 mm
Dimensions Dimension B
46 in | 1168.4 mm
Dimensions Dimension C
117.6 in | 2987.0 mm
Specifications Cloth Area
333 ft² | 30.9 m²
Specifications Length Of Bag Filters
8 ft | 2.4 m
Specifications Nominal Airflow
999 to 2331 ft³/min | 1697 to 3960 m³/h
Specifications Shipping Weight
1400 lb | 635.0 kg
