Donaldson Torit FT Pulse Jet Baghouse Dust Collector - Model: Without Walk-in Plenum
Donaldson Torit FT Pulse Jet Baghouse Dust Collector - Model: Without Walk-in Plenum
SKU:FTP-90d7cd
Dependable FT Pulse Jet Baghouse Dust Collector with high-volume capacity, durability, and easy maintenance for industrial dust collection.
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
Donaldson Torit FT Pulse Jet Baghouse Dust Collector - Model: Without Walk-in Plenum
$14,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit FT Pulse Jet Baghouse Dust Collector - Model: Without Walk-in Plenum
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

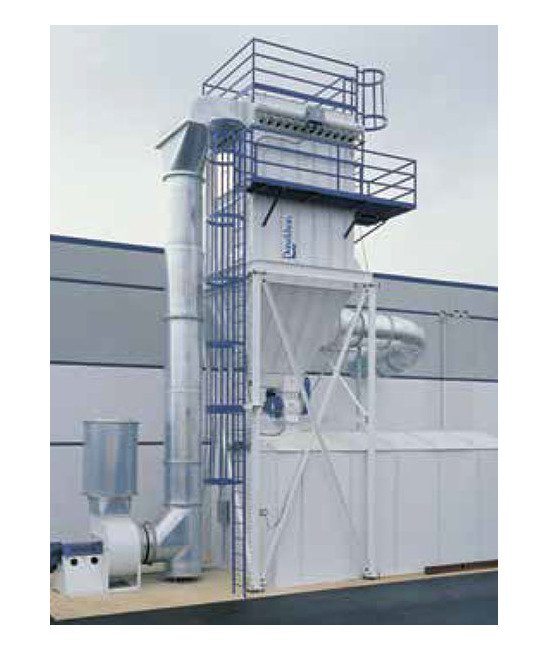

The Donaldson Torit FT Pulse Jet Baghouse Dust Collector is a robust solution designed for high-volume dust collection applications. Featuring all-welded construction for durability and air/water integrity, this collector ensures reliable operation. The optional Integral fan minimizes space requirements, while the unique cleaning system reduces moisture and particulate issues. With a nominal airflow range of 9012 to 22530 ft³/min, 2253 ft² cloth area, and 8 ft bag filters, this collector offers efficient and easy bag filter servicing. Ideal for industrial environments, it provides a clean side bag removal mechanism and can be equipped with an optional walk-in plenum for servicing in adverse weather conditions.
Product Specifications
Additional Information
Unique cleaning system minimizes moisture and particulate issues in pulse valvesCollectors with up to 225 bag filters require only one dirty air inlet, one clean air outlet, and one hopper, resulting in reduced ducting and hopper outlet costs
Dimensions Dimension A
114 in | 2895.6 mm
Dimensions Dimension B
114 in | 2895.6 mm
Dimensions Dimension C
114 in | 2895.6 mm
Specifications Cloth Area
2253 ft² | 209.3 m²
Specifications Length Of Bag Filters
8 ft | 2.4 m
Specifications Model
Without Walk-in Plenum
Specifications Nominal Airflow
9012 to 22530 ft³/min | 15308 to 38271 m³/h
Specifications Shipping Weight
9250 lb | 4195.7 kg
