Donaldson Torit High Efficiency TD Dust Collector - 300 to 400 CFM
Donaldson Torit High Efficiency TD Dust Collector - 300 to 400 CFM
SKU:TDD-88e98d
High Efficiency Donaldson Torit TD Dust Collector - Optimal Filtration for Industrial Applications
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Donaldson Torit High Efficiency TD Dust Collector - 300 to 400 CFM
$2,499.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit High Efficiency TD Dust Collector - 300 to 400 CFM
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

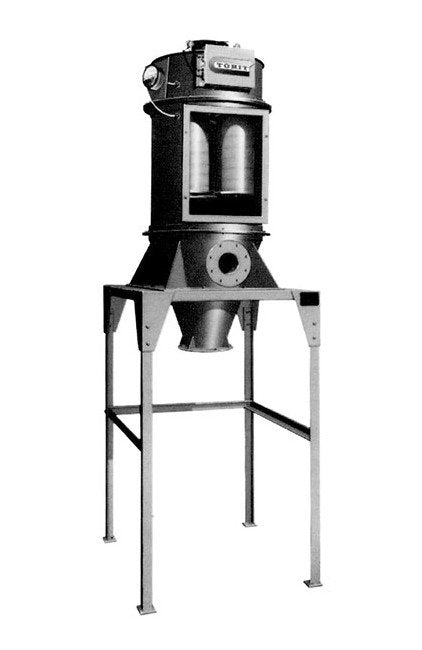

The Donaldson Torit High Efficiency TD Dust Collector with a nominal airflow of 300 to 400 cubic feet per minute offers exceptional filtration efficiency and durability for continuous-duty operations. Featuring Ultra-Web® cartridge filters with nanofiber technology, this compact dust collector reduces energy costs with lower operating pressure drops. With industry-standard compliance including OSHA regulations, this dust collector is suitable for bin venting applications where space is a premium. Enhance workplace safety, increase productivity, and meet rigorous air quality standards with the Donaldson Torit TD Dust Collector.
Product Specifications
Additional Information
MERV (The Minimum Efficiency Reporting Value (MERV) of this filter cartridge has been determined through independent laboratory testing using ASHRAE 52.2 (2007) test standards. The MERV rating was determined at a face velocity of 118 feet per minute (36.0 meters per minute) and loading up to four inches (101.6 mm) water gauge. Actual efficiency of any filter cartridge will vary according to the specific application parameters. Dust concentration, airflow, particle characteristics, and pulse cleaning methods all affect filtration efficiency.) 15 filtration efficiency rating per ASHRAE 52.2-2007Optional tangential inlet on round TD housings preseparates dust for high-loading applicationsProvides a cleaner work environment for maximum productivityHelps support OSHA Clean Air Standards

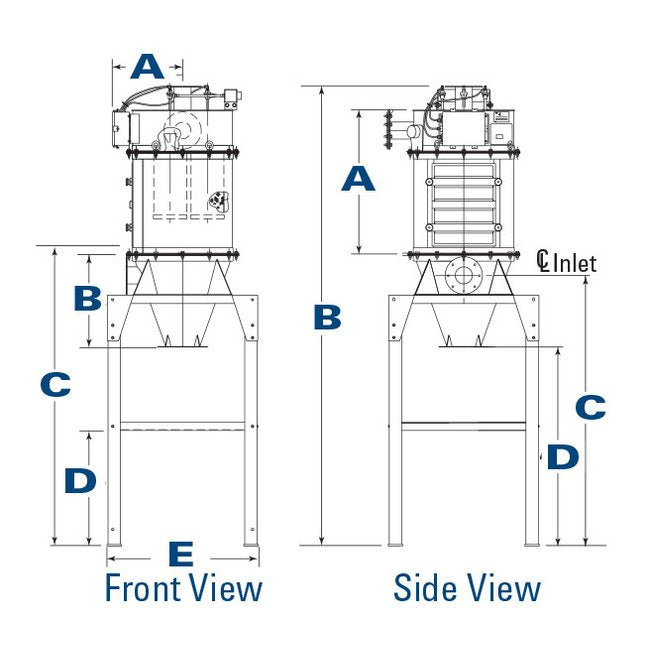

Dimensions Front View Dimension A
17.2 in | 436.4 mm
Dimensions Front View Dimension B
23.8 in | 605.5 mm
Dimensions Front View Dimension C
71.5 in | 1816.9 mm
Dimensions Front View Dimension D
27.9 in | 708.2 mm
Dimensions Front View Dimension E
36.5 in | 927.1 mm
Dimensions Side View Dimension A
25.1 in | 636.5 mm
Dimensions Side View Dimension B
110.1 in | 2797.0 mm
Dimensions Side View Dimension C
62.5 in | 1587.5 mm
Dimensions Side View Dimension D
45.2 in | 1147.6 mm
Equipment Options
Cartridge filter options:Ultra-Web® FR (MERV 15)Fibra-Web® (MERV 14)Ultra-Web® SB (MERV 15)Torit-Tex™ (MERV 16)Ultra-Tek® (MERV 12)1, 2, 3, 5, 7.5, and 10 hp blowersSolid-state timerAdjustable damper (blower)Explosion ventsHopper dischargeSlide gate pack5-Gallon (141.7 Liter) pail pack55-Gallon (15,59.2 Liter) drum coverRotary airlockMagnehelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugePhotohelic® (Registered trademarks of Dwyer Instruments, Inc.) gaugeBolt-on support legsInlet adapters
Specifications Housing Rating
-220 inH2O | -5588 mmH2O
Specifications Industry Standards
Occupational Safety and Health Administration (OSHA)
Specifications Nominal Airflow
300 to 400 ft³/min | 510 to 579 m³/h
Specifications Number Of Filters
3
Specifications Number Of Valves
3
Specifications Shipping Weight
450 lb | 204.1 kg
Specifications Ultra Web Filter Area
180 ft² | 16.7 m²
