Donaldson Torit LP Baghouse 104000 CFM Dust Collector
Donaldson Torit LP Baghouse 104000 CFM Dust Collector
SKU:LPB-b5c44a
Superior reverse air dust collector with unique cleaning arm for efficient bag filter performance and energy savings.
Regular price
$16,000.00
Regular price
Sale price
$16,000.00
Unit price
per
Initiate Order
Donaldson Torit LP Baghouse 104000 CFM Dust Collector
$16,000.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit LP Baghouse 104000 CFM Dust Collector
$16,000.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

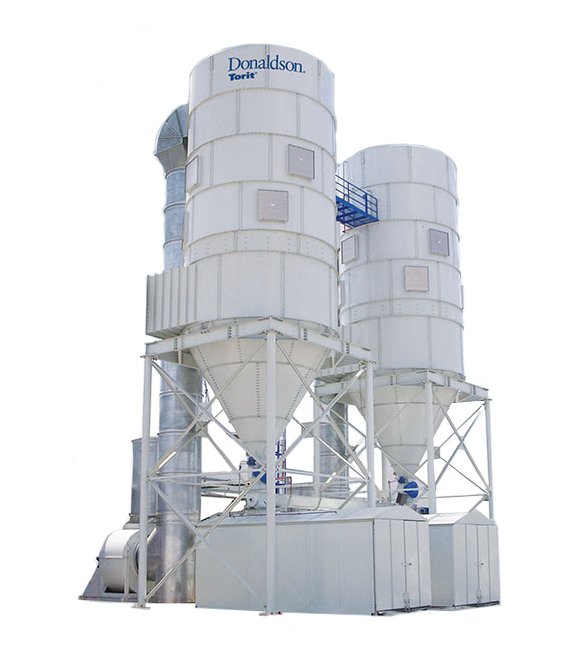

The Donaldson Torit LP Baghouse Dust Collector sets the standard for superior bag filter cleaning performance in a reverse air design. With a unique cleaning arm featuring a flow-stop plate, this collector prevents re-entrainment of dust onto adjacent bags, ensuring lower pressure drop and reduced energy costs. Equipped with Dura-Life™ 'Twice the Life' bag filters as standard, the LP Baghouse outperforms all other reverse air collectors on the market. Its integrated helix in the hopper reduces dust loading on bag filters, while the optional live bottom hopper prevents bridging. The LP cleaning system provides constant process airflow, fewer moving parts, and requires no compressed air, offering ease of maintenance and operational efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Dimension A
254.1 in | 6454.1 mm
Dimensions Dimension B
733.6 in | 18633.4 mm
Features
Flow-stop plate cleaning arm reduces dust re-entrainmentIntegrated helix in hopper reduces dust loading on bag filtersAward winning Dura-Life™ "Twice the Life" bag filtersSingle inlet, outlet and hopper reduces ducting and hopper outlet costsLP cleaning provides a constant process airflow and fewer moving parts, which reduces maintenance and disruptions to system airflowLP cleaning system requires no compressed airOptional live bottom hopper grinds dusts to prevent bridging in hopper
Specifications Cleaning Fan
40 hp
Specifications Cloth Area
13000 ft² | 1207.7 m²
Specifications Length Of Bag Filters
10 ft² | 0.9 m²
Specifications Nominal Airflow
104000 ft³/min | 176660 m³/h
Specifications Shipping Weight
63500 lb | 28803.1 kg
