Donaldson Torit LP Baghouse Dust Collector 14400 ft³/min
Donaldson Torit LP Baghouse Dust Collector 14400 ft³/min
SKU:LPB-86616d
Discover peak dust collection efficiency with the Donaldson Torit LP Baghouse Dust Collector, setting industry standards for performance and longevity.
Regular price
$23,999.99
Regular price
Sale price
$23,999.99
Unit price
per
Initiate Order
Donaldson Torit LP Baghouse Dust Collector 14400 ft³/min
$23,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit LP Baghouse Dust Collector 14400 ft³/min
$23,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® LP Baghouse Dust Collector sets the standard for superior bag filter cleaning performance in a reverse air design. Featuring a unique cleaning arm with a flow-stop plate, it prevents re-entrainment of dust onto adjacent bags, minimizing pressure drop and reducing energy costs. Equipped with Dura-Life™ 'Twice the Life' bag filters, this collector offers unmatched efficiency and longevity. With integrated features like a helix in the hopper and LP cleaning system, it ensures constant airflow, minimal maintenance, and optimal dust control. Exceptional engineering and durable construction make this LP Baghouse ideal for industrial applications requiring peak performance and cost-effectiveness.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

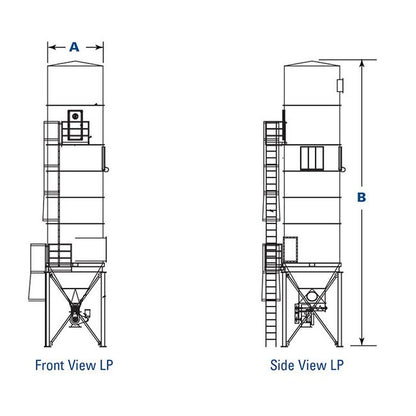

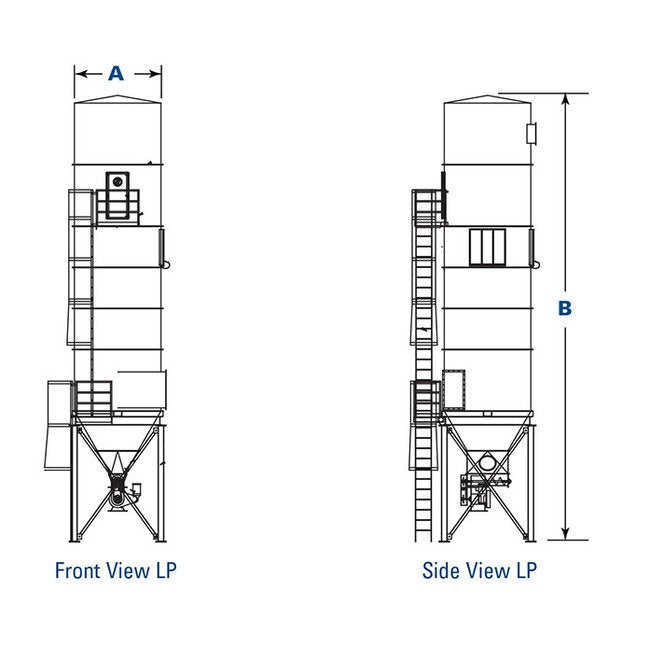

Dimensions Dimension A
101.3 in | 2573 mm
Dimensions Dimension B
478.3 in | 12148.8 mm
Features
Flow-stop plate cleaning arm reduces dust re-entrainmentIntegrated helix in hopper reduces dust loading on bag filtersAward winning Dura-Life™ "Twice the Life" bag filtersSingle inlet, outlet and hopper reduces ducting and hopper outlet costsLP cleaning provides a constant process airflow and fewer moving parts, which reduces maintenance and disruptions to system airflowLP cleaning system requires no compressed airOptional live bottom hopper grinds dusts to prevent bridging in hopper
Specifications Cleaning Fan
10 hp
Specifications Cloth Area
1800 ft² | 167.2 m²
Specifications Length Of Bag Filters
10 ft² | 0.9 m²
Specifications Nominal Airflow
14400 ft³/min | 24461 m³/h
Specifications Shipping Weight
11000 lb | 4989.5 kg
