Donaldson Torit LP Baghouse Dust Collector - 70400 ft³/min
Donaldson Torit LP Baghouse Dust Collector - 70400 ft³/min
SKU:LPB-695613
High-performance LP Baghouse Dust Collector for superior airflow control and energy efficiency in industrial settings.
Regular price
$22,999.00
Regular price
Sale price
$22,999.00
Unit price
per
Initiate Order
Donaldson Torit LP Baghouse Dust Collector - 70400 ft³/min
$22,999.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit LP Baghouse Dust Collector - 70400 ft³/min
$22,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® LP Baghouse Dust Collector stands out with its superior bag filter cleaning performance and innovative features designed for optimal airflow control. The LP advantage, including a cleaning arm with a flow-stop plate, ensures dust re-entrainment is minimized, resulting in lower pressure drop and reduced energy costs. With Dura-Life™ bag filters lasting twice as long as standard filters, this LP Baghouse sets a new standard for reverse air collectors. Ideal for industrial settings requiring high-performance dust collection with minimal maintenance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

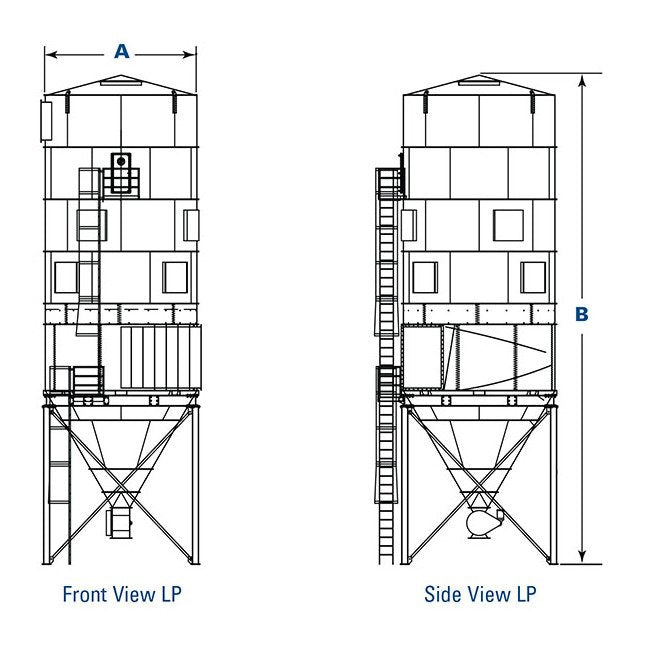

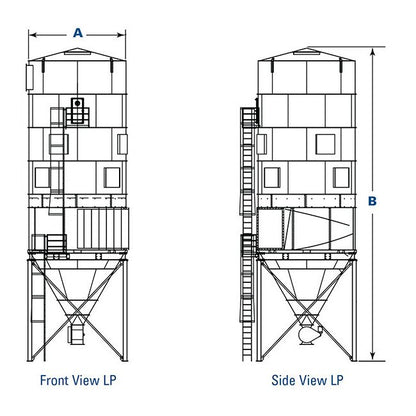

Dimensions Dimension A
208.3 in | 5290.8 mm
Dimensions Dimension B
603.8 in | 15336.5 mm
Features
Flow-stop plate cleaning arm reduces dust re-entrainmentIntegrated helix in hopper reduces dust loading on bag filtersAward winning Dura-Life™ "Twice the Life" bag filtersSingle inlet, outlet and hopper reduces ducting and hopper outlet costsLP cleaning provides a constant process airflow and fewer moving parts, which reduces maintenance and disruptions to system airflowLP cleaning system requires no compressed airOptional live bottom hopper grinds dusts to prevent bridging in hopper
Specifications Cleaning Fan
25 hp
Specifications Cloth Area
8800 ft² | 817.5 m²
Specifications Length Of Bag Filters
10 ft² | 0.9 m²
Specifications Nominal Airflow
70400 ft³/min | 119585 m³/h
Specifications Shipping Weight
38500 lb | 17463.3 kg
