Donaldson Torit MBT Modular Baghouse 2598 sq.ft. Dust Collector
Donaldson Torit MBT Modular Baghouse 2598 sq.ft. Dust Collector
SKU:MOD-825b59
Reliable, efficient Donaldson Torit MBT Baghouse with Dura-Life™ filters for extended life & reduced emissions.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
Donaldson Torit MBT Modular Baghouse 2598 sq.ft. Dust Collector
$18,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit MBT Modular Baghouse 2598 sq.ft. Dust Collector
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit MBT Modular Baghouse is an industry-leading dust collector designed for reliable, continuous-duty operation. Featuring Dura-Life™ bag filters, it offers extended bag life and reduced emissions. With a bag cloth area of 2598 sq.ft., this unit is equipped with 162 bags and 18 valves, providing exceptional filtration efficiency. Additionally, the option for Ultra-Web® Spunbond Pleated Bags enhances dust capture and filter longevity. Ideal for industrial settings, the MBT Baghouse ensures optimal airflow, easy maintenance, and space-saving design, making it a valuable investment for clean air quality and regulatory compliance.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

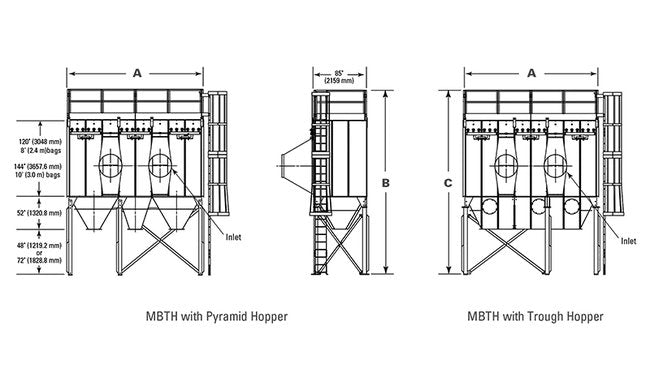

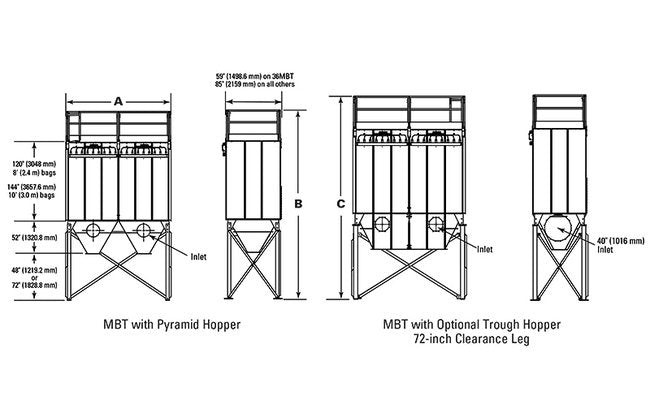

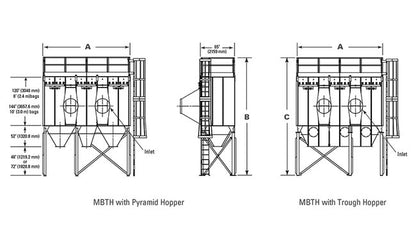

Dimensions Dimension A Mbtmbw
215.0 in | 5461.0 mm
Dimensions Dimension B Mbt 48 In
292.3 in | 7424.4 mm
Dimensions Dimension B Mbt 72 In
316.3 in | 8034.0 mm
Dimensions Dimension C Mbt
316.3 in | 8034 mm
Dimensions Dimension D Mbt 48 In
342.1 in | 8689.3 mm
Dimensions Dimension D Mbt 72 In
366.1 in | 9298.9 mm
Dimensions Dimension E Mbw
366.1 in | 9298.9 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
2598 ft² | 241.4 m²
Specifications Number Of Bags
162
Specifications Number Of Valves
18
Specifications Plated Bag Media Area 20 Inch In Uw
1912 ft² | 177.6 m²
Specifications Plated Bag Media Area 40 Inch In Uw
3823 ft² | 355.2 m²
Specifications Plated Bag Media Area 60 Inch In Uw
5735 ft² | 532.8 m²
Specifications Plated Bag Media Area 80 Inch In Uw
7663 ft² | 711.9 m²
Specifications Shipping Weight
13725 lb | 6225.6 kg
Specifications Warranty
10 years
