Donaldson Torit MBT Modular Baghouse 345 ft² Dust Collector
Donaldson Torit MBT Modular Baghouse 345 ft² Dust Collector
SKU:MOD-4ad47d
Reliable and efficient dust collector with Dura-Life™ filters, 345 ft² bag area, Ultra-Web® option for extended durability.
Regular price
$14,999.00
Regular price
Sale price
$14,999.00
Unit price
per
Initiate Order
Donaldson Torit MBT Modular Baghouse 345 ft² Dust Collector
$14,999.00
Quantity: 1
Claim Your Seller Account
Donaldson Torit MBT Modular Baghouse 345 ft² Dust Collector
$14,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson Torit MBT Modular Baghouse Dust Collector is a trusted solution for reliable and efficient dust filtration. Featuring Dura-Life™ bag filters for extended durability and reduced emissions, this pulse-jet operated collector offers 345 ft² of bag cloth area. With 36 bags, 6 valves, and a 10-year warranty, it ensures high performance and easy maintenance. The incorporation of Ultra-Web® Spunbond Pleated Bags enhances filtration efficiency and longevity, making it an ideal choice for institutions seeking sustainable dust control solutions.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

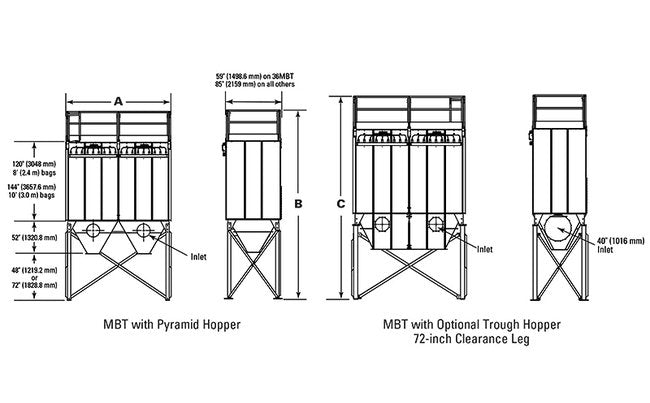

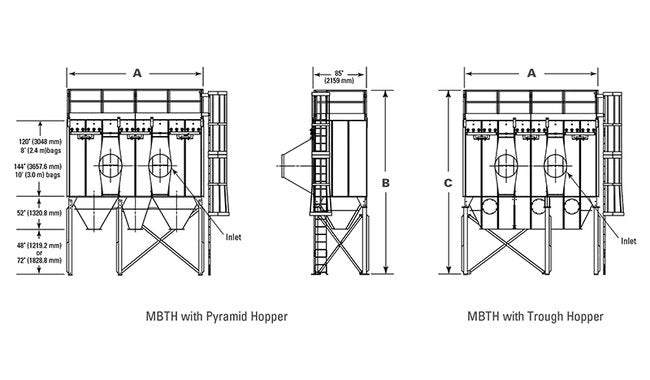

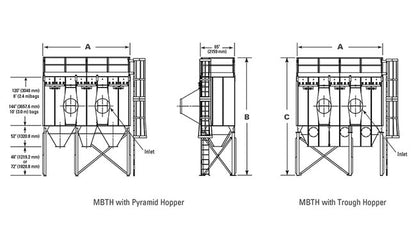

Dimensions Dimension A Mbtmbw
57.5 in | 1460.5 mm
Dimensions Dimension B Mbt 48 In
221.7 in | 5631.2 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
345 ft² | 32.1 m²
Specifications Number Of Bags
36
Specifications Number Of Valves
6
Specifications Plated Bag Media Area 20 Inch In Uw
425 ft² | 39.5 m²
Specifications Plated Bag Media Area 40 Inch In Uw
850 ft² | 78.9 m²
Specifications Plated Bag Media Area 60 Inch In Uw
1274 ft² | 118.4 m²
Specifications Plated Bag Media Area 80 Inch In Uw
1703 ft² | 158.2 m²
Specifications Shipping Weight
3100 lb | 1406.1 kg
Specifications Warranty
10 years
