Donaldson Torit MBT Modular Baghouse 3897 ft² Dust Collector
Donaldson Torit MBT Modular Baghouse 3897 ft² Dust Collector
SKU:MOD-872333
Reliable Donaldson Torit MBT Modular Baghouse Dust Collector with efficient Dura-Life™ filters and high bag area.
Regular price
$14,999.99
Regular price
Sale price
$14,999.99
Unit price
per
Initiate Order
Donaldson Torit MBT Modular Baghouse 3897 ft² Dust Collector
$14,999.99
Quantity: 1
Claim Your Seller Account
Donaldson Torit MBT Modular Baghouse 3897 ft² Dust Collector
$14,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Donaldson® Torit® MBT Modular Baghouse Dust Collector offers unrivaled efficiency with its Dura-Life™ bag filters, providing longer bag life and reduced emissions. Featuring a spacious bag cloth area of 3897 ft² and multiple plated bag media options, this collector includes 243 bags and 27 valves for continuous-duty pulse-jet operation. With a 10-year warranty, shipping weight of 15200 lb, and dimensions optimized for airflow, the MBT delivers reliable service with easy maintenance. Its advanced design and high air-to-media ratio make it ideal for institutional and government procurement needs.
Product Specifications
Additional Information
The MB is now also available with Ultra-Web® Spunbond Pleated Bags. This option provides pleated filters with our Ultra-Web® nanofiber web-like net to capture dust on the surface of the filter. These filters reduce emissions, provide longer filter life and allow the collector to be downsized to reduce the overall purchase price. The MB provides reliable service with easy maintenance. Computer designed inlets and deflector plates, coupled with maximized bag spacing, result in optimal airflow with minimal abrasion. Advanced valves, providing 50% more cleaning air, result in a more efficient operation. Over the life of the collector, no other baghouse can provide this much value.

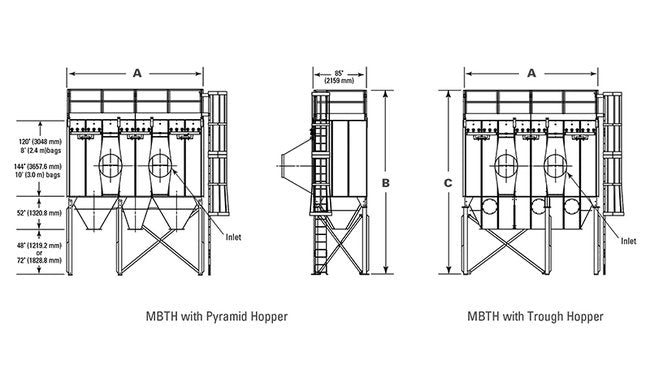

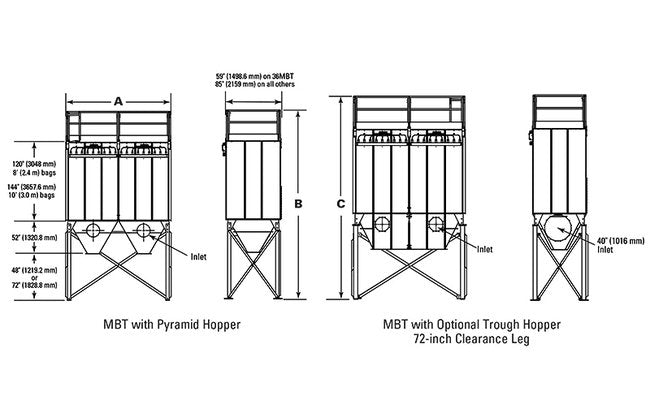

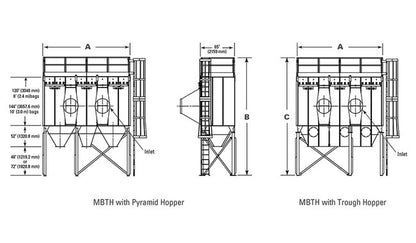

Dimensions Dimension A Mbtmbw
241.0 in | 6121.4 mm
Dimensions Dimension B Mbt 48 In
292.2 in | 7421.9 mm
Dimensions Dimension B Mbt 72 In
316.2 in | 8031.5 mm
Dimensions Dimension C Mbt
316.2 in | 8031.5 mm
Dimensions Dimension D Mbt 48 In
342.1 in | 8689.3 mm
Dimensions Dimension D Mbt 72 In
366.1 in | 9298.9 mm
Dimensions Dimension E Mbw
366.1 in | 9298.9 mm
Features
High body inlet models allow higher air-to-media ratios on lighter dustsSquare models help minimize ducting and accessory costsDura-Life™ "Twice the Life" Bag FiltersUltra-Web® SB Pleated Bag OptionClean air bag access for easier bag serviceWelded design increases durabilityIntegral fan option reduces space requirementsTool-free installation of bag filters and cages
Specifications Bag Cloth Area
3897 ft² | 362.0 m²
Specifications Number Of Bags
243
Specifications Number Of Valves
27
Specifications Plated Bag Media Area 20 Inch In Uw
2867 ft² | 266.4 m²
Specifications Plated Bag Media Area 40 Inch In Uw
5735 ft² | 532.8 m²
Specifications Plated Bag Media Area 60 Inch In Uw
8602 ft² | 799.2 m²
Specifications Plated Bag Media Area 80 Inch In Uw
11494 ft² | 1067.8 m²
Specifications Shipping Weight
15200 lb | 6894.6 kg
Specifications Warranty
10 years
